Gigabyte H470I AORUS PRO AX (Wi-Fi)
Gigabyte H470I AORUS PRO AX (Wi-Fi)
Gigabyte H470I AORUS PRO AX (Wi-Fi)
Gigabyte H470I AORUS PRO AX (Wi-Fi)
Gigabyte H470I AORUS PRO AX (Wi-Fi)
Gigabyte H470I AORUS PRO AX (Wi-Fi)
Gigabyte H470I AORUS PRO AX (Wi-Fi)
Gigabyte H470I AORUS PRO AX (Wi-Fi)

Gigabyte H470I AORUS PRO AX (Wi-Fi)

/ Write a review

Tech Yatra sale 2025
  • Brand: GIGABYTE
  • Product Code: H470I-AORUS-PRO-AX
  • Availability: Out Of Stock

Gigabyte H470I AORUS PRO AX (Wi-Fi)

Offer Price

₹15,531

(8% off ) ₹16,938
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

H470I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest 10th gen CPU, dual slots graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.

  • Supports 10th Gen Intel® Core™ Series Processors
  • Direct 5+1 Phase Digital VRM Design solution with DrMOS
  • Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs
  • Extended MOSFET Heatsink and Multi-layered PCH M.2 heatsink with heatpipes and thermal baseplate
  • Supreme flexibility with Intel® Optane memory ready
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Dual LAN Intel® 2.5GbE LAN and Intel® GbE LAN with cFosSpeed
  • HDMI 2.0 supports premium 4K resolution
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for easy and quick installation
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Features

CPU

  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset Intel® H470 Express Chipset
Memory
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard Graphics

Integrated Graphics Processor+PARADE PS175 chip:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN

  1. 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
  2. 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit) (LAN1)
Wireless Communication module
Intel® Wi-Fi 6 AX201
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
Storage Interface

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M2Q_SB)
  3. 4 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB

Chipset:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
  2. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 4 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)v
  15. 1 x Clear CMOS jumper
  16. 1 x chassis intrusion header
  17. 1 x Q-Flash Plus button

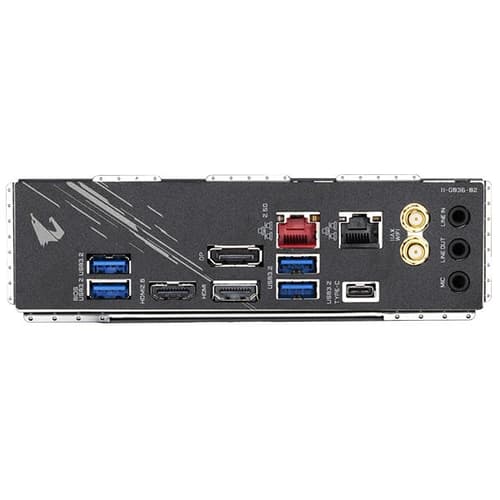

Back Panel Connectors

  1. 1 x DisplayPortv
  2. 2 x HDMI ports
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  4. 4 x USB 3.2 Gen 1 ports
  5. 2 x RJ-45 ports
  6. 2 x SMA antenna connectors (2T2R)
  7. 3 x audio jacks
I/O Controller
 iTE® I/O Controller Chip
H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
 Support for Windows 10 64-bit
Form Factor
 Mini-ITX Form Factor; 17.0cm x 17.0cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset H470
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor Mini-ITX
