Gigabyte UD1000GM PG5 V2 Gold 1000 Watt ATX 3.1 Fully Modular Smps

/ Write a review

Bank Card Offer
  • Brand: GIGABYTE
  • Product Code: GP-UD1000GM-PG5-V2
  • Availability: In Stock

Gigabyte UD1000GM PG5 V2 Gold 1000 Watt ATX 3.1 Fully Modular Smps

Offer Price

₹12,950

(58% off ) ₹31,000
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

  • Ultra Durable
    • 100% Japanese capacitors
    • 120mm smart hydraulic bearing (HYB) fan
    • Optimized thermal solution
    • OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP protection
  • Intel ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Cybenetics Platinum efficiency
  • Fully modular design
  • Powerful single +12V rail
  • Compact size
  • 10-year product warranty.

ATX 3.1 and PCIe GEN 5.1

READY Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX™ 50 Series and beyond.

ULTRA DURABLE

Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance.

100% JAPANESE CAPACITORS

High-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability.

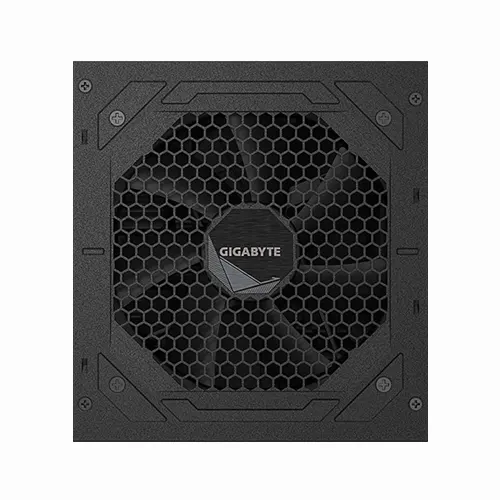

120mm smart Hydraulic Bearing(HYB) fan with smart fan switch

Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.

PROTECTIONS

Multiple protection features are integrated to ensure stable operation under any condition. The power supply is also backed by safety certifications from various countries, providing added peace of mind.

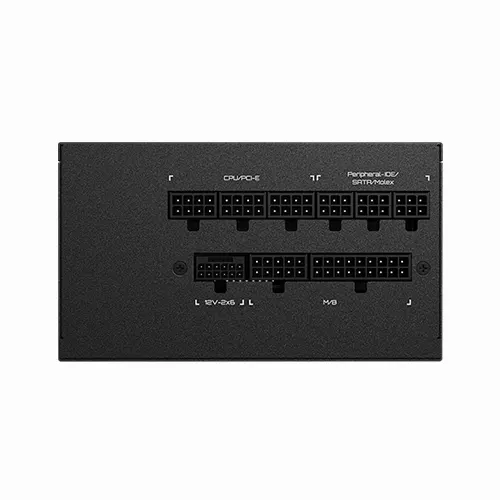

FULLY MODULAR DESIGN

Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.

80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

SINGLE +12V RAIL

The single +12V rail delivers optimal power output, stability, and compatibility for hardware, offering the easiest installation of power cables and the ideal design for overclocking.

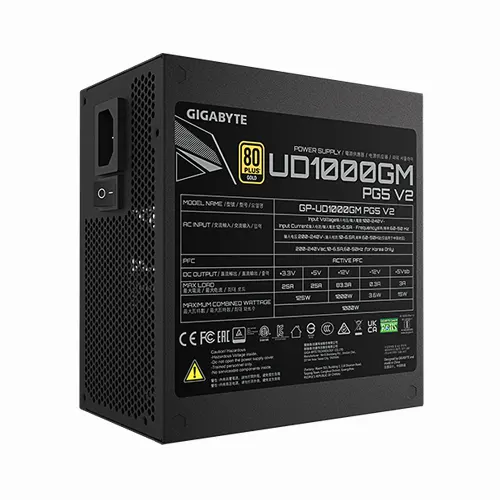

AC Input Input Voltage 100-240V~ (China: 200-240V~)
  Input Current 12-6.5A (China: 10-6.5A)
  Frequency 60 - 50Hz
PFC ACTIVE PFC
DC Output +3.3V +5V +12V -12V +5Vsb
Output Current 25A 25A 83.3A 0.3A 3A
Maximum Combined
Wattage
125W 1000W 3.6W 15W
1000W

COMPACT DESIGN

Leveraging our expertise in heat dissipation and material selection, the power supply is slimmed down to just 140mm, maximizing performance while ensuring compatibility with even the most space-constrained chassis.

Psu
Wattage 1000 Watt
Series UD SERIES
Certification 80 Plus Gold
Modular Fully MODULAR
PCIe Connector (6+2) 4
SATA Connector 8
Peripheral (4-Pin) 3
Warranty 10 Years
Note***

Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
