Overview:

•  Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
•  4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
•  3rd Generation RT Cores: Up to 2X ray tracing performance

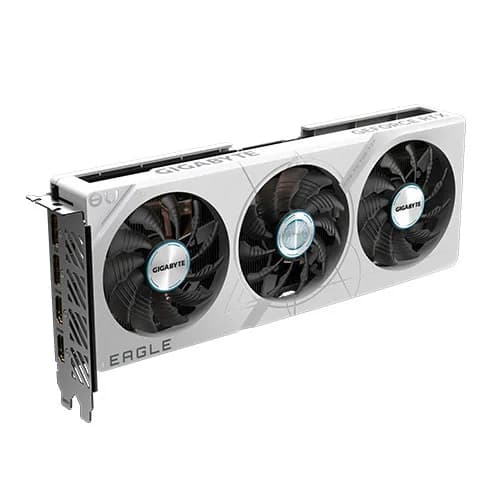

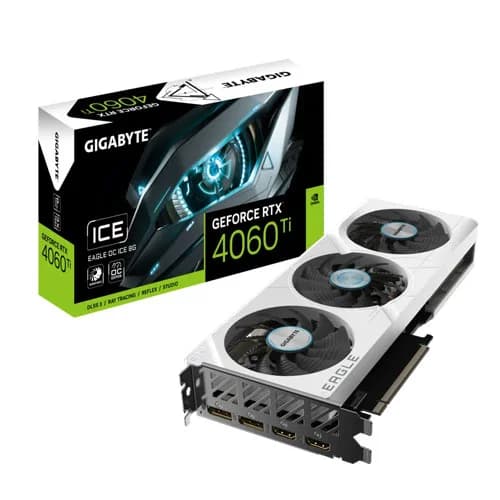

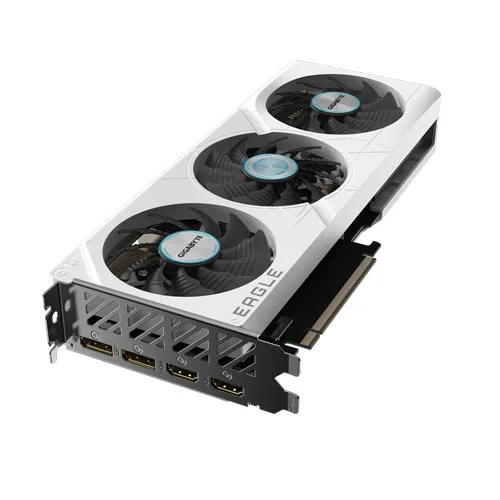

•  Powered by GeForce RTX™ 4060 Ti (8GB)
•  Integrated with 8GB GDDR6 128bit memory interface
•  WINDFORCE cooling system
•  Dual BIOS

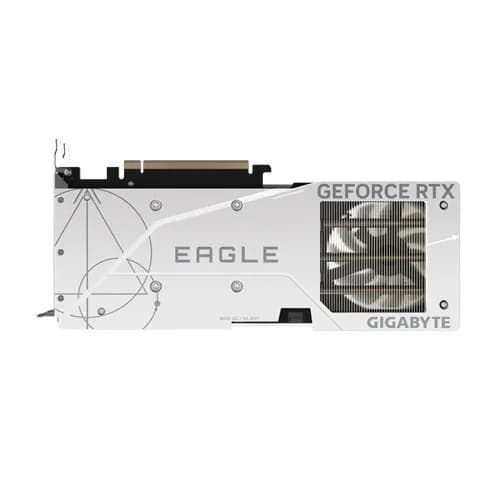

•  Protection back plate

CORE CLOCK

2550 MHz (Reference card: 2535 MHz)

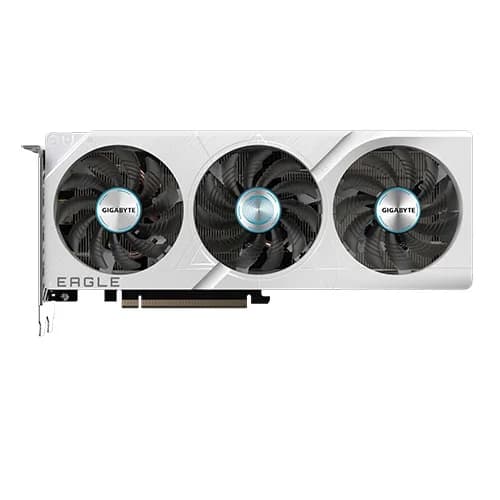

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING: Reduce the turbulence of adjacent fans and increase airflow pressure.

 3D ACTIVE FAN: The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN: The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT: Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES DIRECT TOUCH: The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

SCREEN COOLING: Extended heatsink allows air to pass through, providing better heat dissipation.
