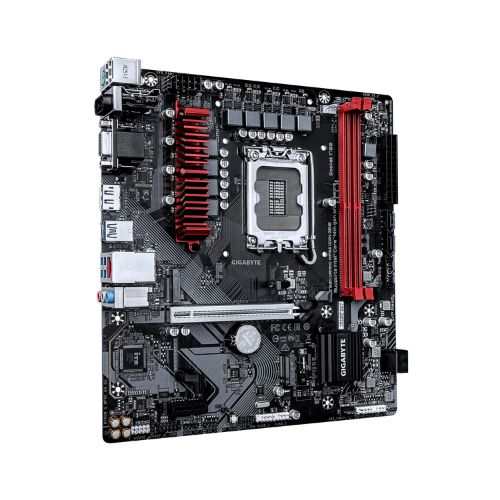

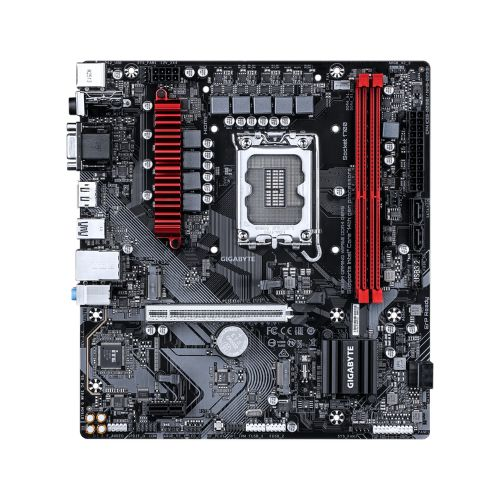

Gigabyte B760M Gaming WIFI6E DDR4 Gen5 M-ATX Motherboard
- Brand: GIGABYTE
- Product Code: B760M-G-WF6E-D4-GEN5
- Availability: In Stock
Gigabyte B760M Gaming WIFI6E DDR4 Gen5 M-ATX Motherboard
Offer Price
₹12,100
(38% off ) ₹19,500
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
- PCIe Gen5 Performance: Perfect Sync to Win
- Supports Intel Core 14th/ 13th /12th processors
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal.
- EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
- Ultra Durableâ„¢ SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance: Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR4: 2*DIMMs XMP Memory Module Support
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors

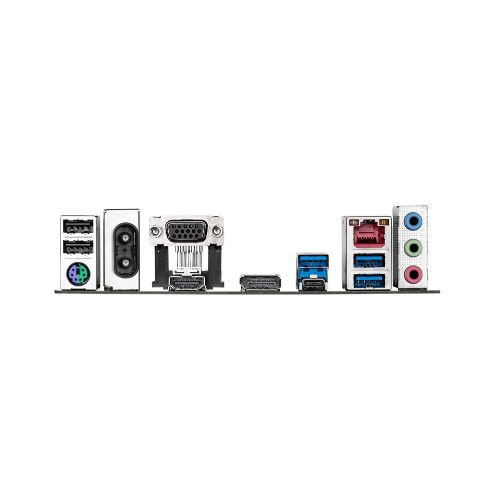

- Extended Connectivity: Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | core i3, core i5, core i7, Pentium, Celeron |
| Chipset | B760 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| Graphics Port |
|
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Back Panel I/O Ports |
|
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
