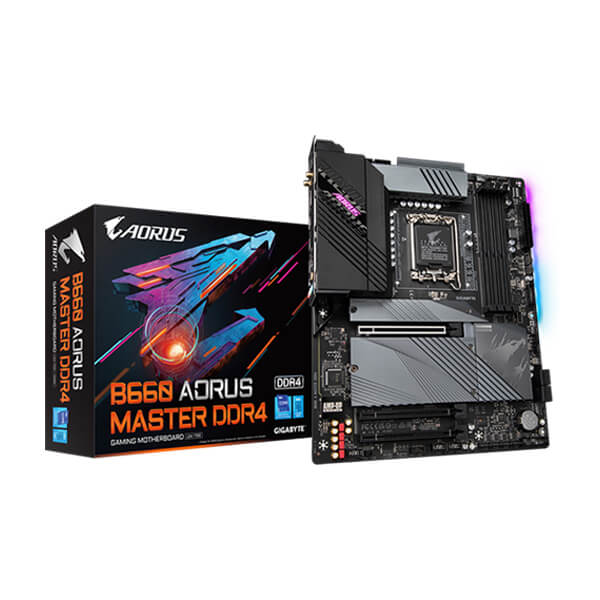

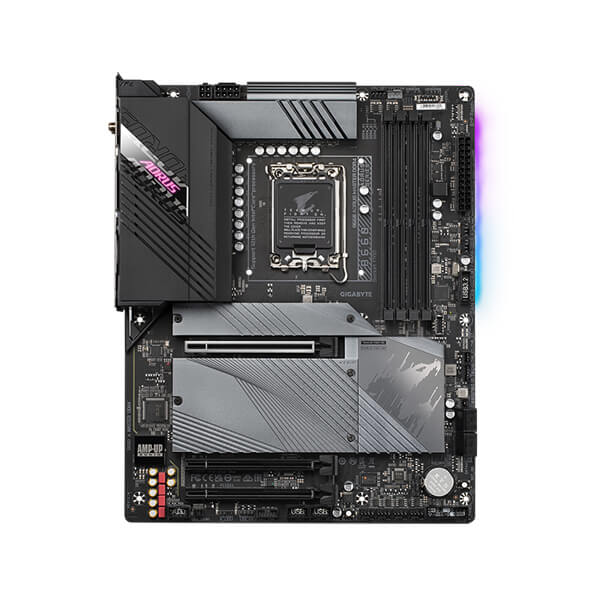

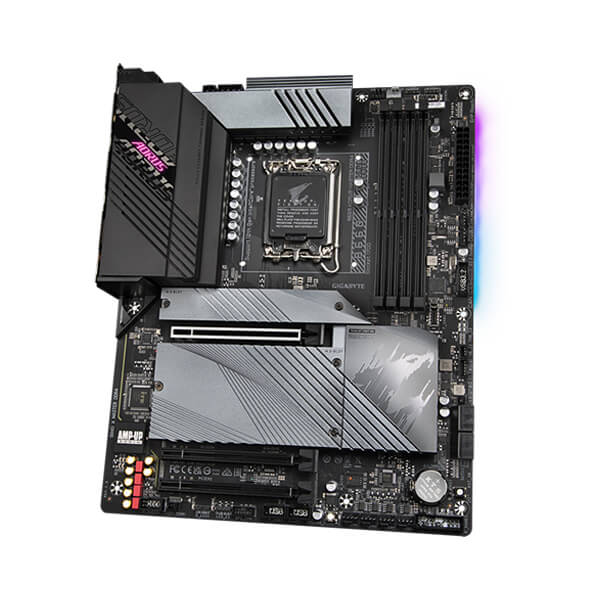

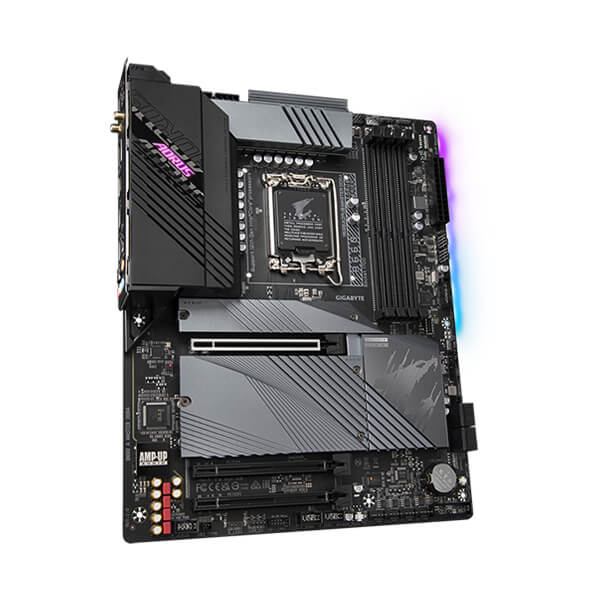

Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard
Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard

Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard

/ Write a review

  • Brand: GIGABYTE
  • Product Code: B660-AORUS-MASTER-DDR4
  • Availability: Out Of Stock

Gigabyte B660 Aorus Master DDR4 (Wi-Fi) Motherboard

Offer Price

₹22,379

(14% off ) ₹25,999
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

Intel® B660 AORUS Motherboard with 16*+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design , 3 x PCIe 4.0*/3.0 M.2 with Enlarged Thermal Guard, Intel® 2.5GbE LAN, WIFI 6 802.11ax , 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen 2x2 Type-C®, RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen Intel® Coreâ„¢ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 16*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
  • Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guards
  • SuperSpeed USB 3.2 Gen 2x2 Type-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

    * Actual support may vary by CPU.
    * 8+8 phases parallel power design

Specifications:

CPU
  • LGA1700 socket: Support for 13th Generation Intel® Coreâ„¢ Processors and 12th Generation Intel® Coreâ„¢, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
Chipset Intel® B660 Express Chipset
Memory
  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)
Audio

Realtek® ALC1220-VB CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio 2/4/5.1/7.1-channel

Support for S/PDIF Out
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module WIFI Module
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2M_SB connector.
  3. 1 x PCI Express x16 slot, running at x1 (PCIEX1)
    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
Storage Interface CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
  3. 4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+2 USB 3.2 Gen 1 Hubs:
  1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 3 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x noise detection header
  18. 2 x Thunderboltâ„¢ add-in card connectors
  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  20. 1 x reset button
  21. 1 x Q-Flash Plus button
  22. 1 x reset jumper
  23. 2 x temperature sensor headers
  24. 1 x Clear CMOS jumper

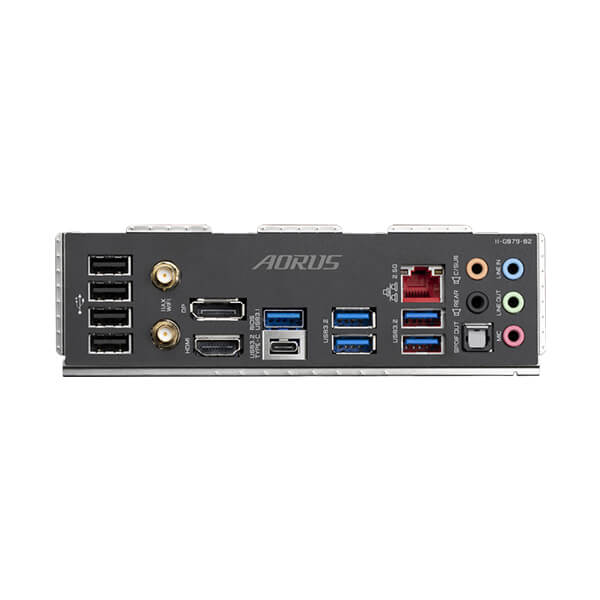

Back Panel Connectors
  1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red)
  3. 4 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x DisplayPort
  7. 1 x HDMI 2.0 port
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  7. Noise detection
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software Norton® Internet Security (OEM version) cFosSpeed
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.



Motherboard
Platform INTEL
Socket LGA1700
Chipset B660
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. Will it able to handle i7 12700 11/08/2022

A. Yes.

Fahd Ahmed (Verified Buyer )

Q. Is it the rev 1.0 version or the rev 1.x version? 25/04/2022

A. Rev 1.0

Tanmay Mohapatra (Verified Buyer )

Q. Does it over clock i5 12600k at max clock speed without any problem 21/03/2022

A. yes but overclocking is not advised.

Hamza (Verified Buyer )

Q. does it support i5-11600k
 20/03/2022

A. No.

Arya Khandalkar (Verified Buyer )

Q. It supports intel i5 12600KF 13/03/2022

A. Yes.

Ashish Kumar (Verified Buyer )
