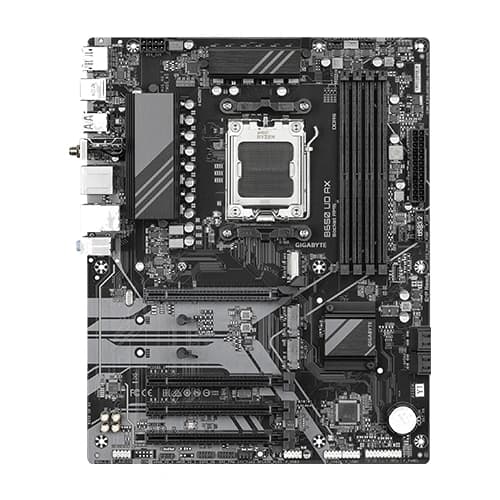

Gigabyte B650 UD AX WiFi6 ATX Motherboard

/ Write a review

  • Brand: GIGABYTE
  • Product Code: B650-UD-AX
  • Availability: In Stock

Gigabyte B650 UD AX WiFi6 ATX Motherboard

Offer Price

β‚Ή14,200

(47% off ) β‚Ή27,000
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

  • AMD Socket AM5:Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
  • Unparalleled Performance:6+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Fast Networks: Wi-Fi 6 802.11ax & GbE LAN
  • Extended Connectivity: DP, HDMI, Rear USB 10Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

802.11ax Wi-Fi

The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.

GbE LAN with Bandwidth Management

Helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

High-End Audio Capacitors

These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Motherboard
Platform AMD
Socket AM5
Cpu Type Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset B650
Memory Speed up to 8000
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory
modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of
DRAM modules, please refer to "Memory Support List" on Brand website for more information.)
Graphics Port 1 x DisplayPort,1 x HDMI port
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be
sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzenβ„’ 8000 Series-Phoenix 2 processor is used.
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Wireless Networking WIFI 6,Bluetooth 5.0

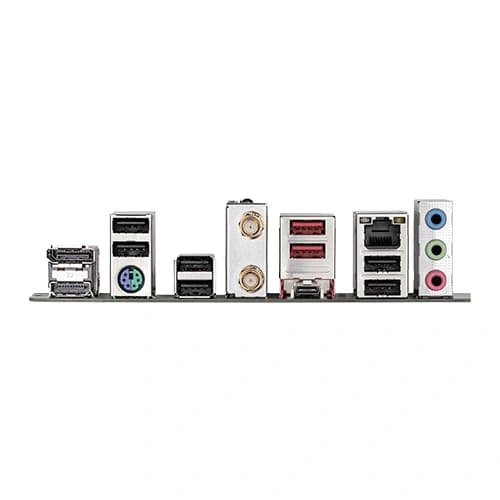

Back Panel I/O Ports 1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
1 x addressable RGB Gen2 LED strip header
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x Clear CMOS jumper
Form Factor ATX
Warranty 3 Years
Note

Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
