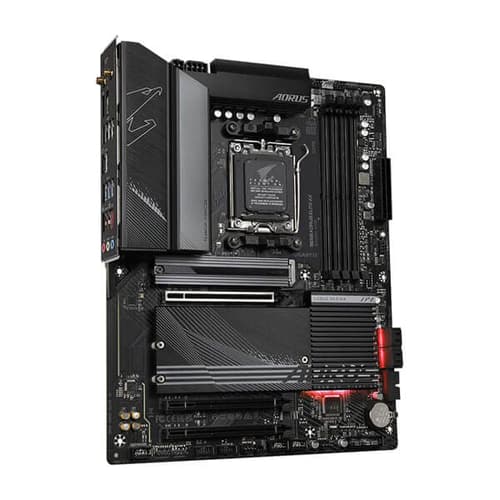

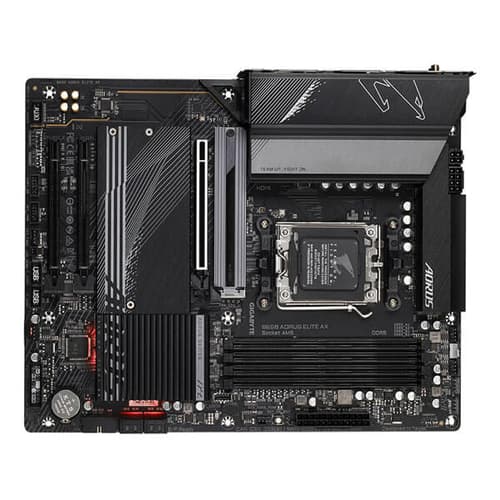

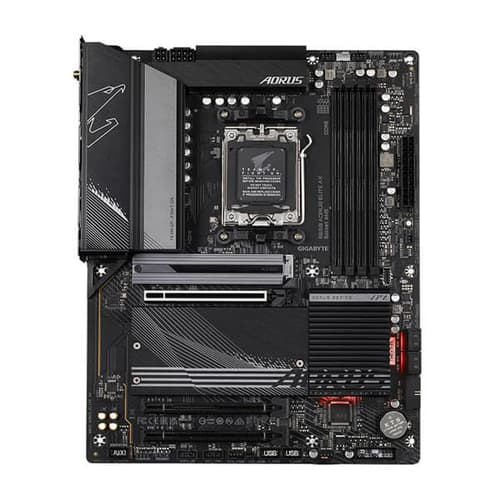

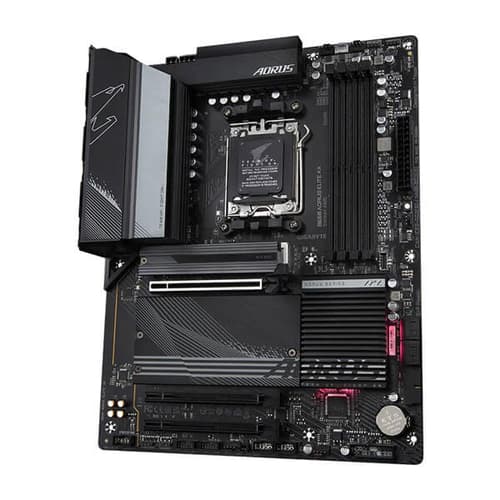

Gigabyte B650 Aorus Elite AX (Wi-Fi) Motherboard
7.5% Instant Discount on HDFC Credit & Debit Card EMI
Tech Yatra Sale T&C - Click Here For Details
Gigabyte Monster Hunter Game Code Bundle T&C - Click Here For Details
- Brand: GIGABYTE
- Product Code: B650-AORUS-ELITE-AX
- Availability: Out Of Stock
Gigabyte B650 Aorus Elite AX (Wi-Fi) Motherboard
Offer Price
₹21,000
(30% off ) ₹30,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
- AMD Socket AM5：Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
- Unparalleled Performance：Twin 14+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage：1xPCIe 5.0 x4 and 2xPCIe 4.0 x4 M.2 Connectors
- Fully Covered Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
- 7+7 phases parallel power design
Specification:
| CPU | AMD Socket AM5, support for: AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors |
| Chipset | AMD B650 |
| Memory |
|
| Onboard Graphics |
|
| Audio |
|
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
|
| Expansion Slots |
CPU:
Chipset:
|
| Storage Interface |
CPU:
Chipset:
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| USB |
CPU:
CPU + USB 2.0 Hub:
Chipset:
Chipset+USB 3.2 Gen 1 Hub:
|
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

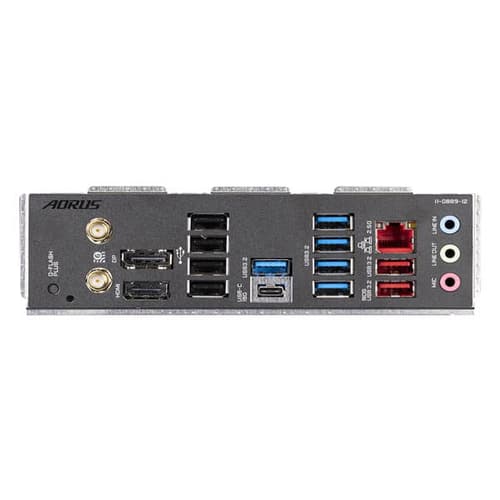

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
|
| Unique Features |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
|
| Bundled Software |
|
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Motherboard | |
| Platform | AMD |
| Socket | AM5 |
| Chipset | B650 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Form Factor | ATX |
