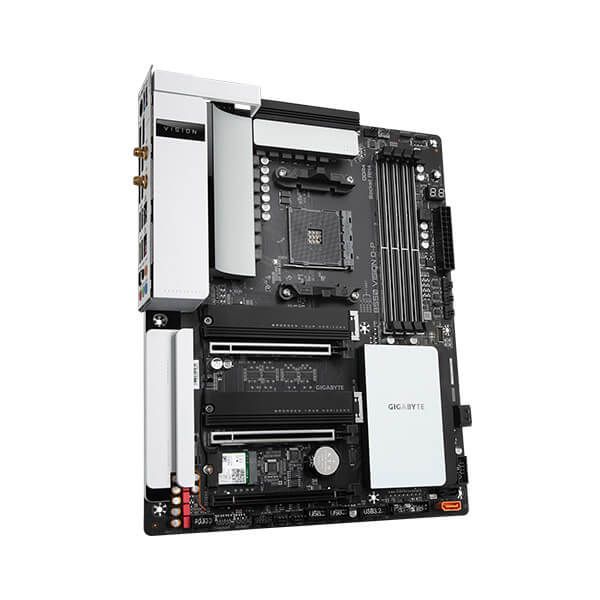

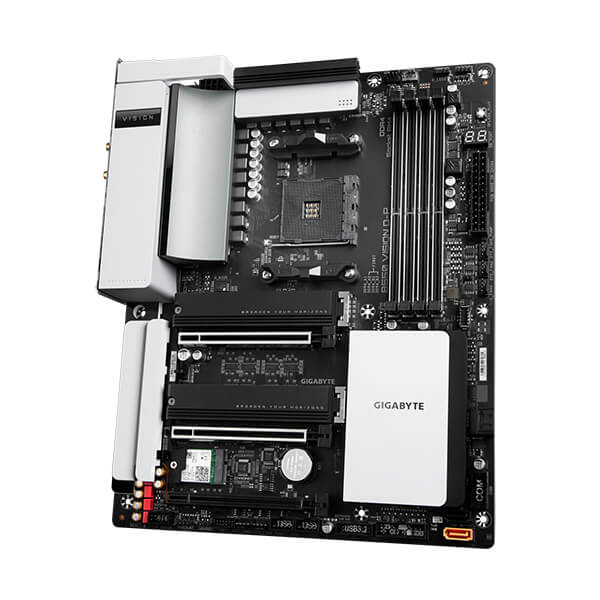

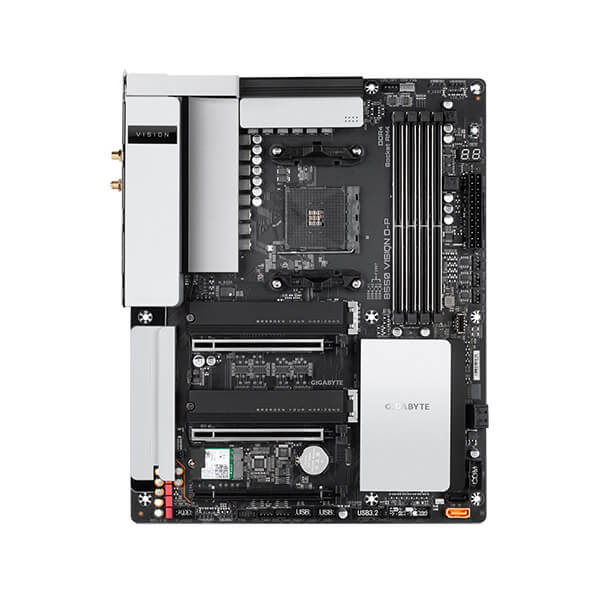

Gigabyte B550 Vision D-P Motherboard
Bank Credit & Debit Card EMI Offer
- Brand: GIGABYTE
- Product Code: B550-VISION-D-P
- Availability: Out Of Stock
Gigabyte B550 Vision D-P Motherboard
Offer Price
₹23,500
(17% off ) ₹28,199
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
AMD B550 Creators Motherboard with Intel Thunderbolt™ 3 certification, effective cooling solution, DDR4 ECC & Non-ECC memory, Intel® Wi-Fi 6 802.11ax and dual 2.5GbE LAN, Triple PCIe 4.0/3.0 x16 slots, Dual PCIe 4.0/3.0 M.2 Connectors
- Supports AMD Ryzenâ„¢ 5000 Series / 3rd Gen Ryzenâ„¢ and 3rd Gen Ryzenâ„¢ with Radeonâ„¢ Graphics Processors
- Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
- Multi-graphics configurations offer by dual PCIe 4.0/3.0 x16 and one PCIe 3.0 x16 slots
- Fully Quadro® QVL Tested
- The limitless connectivity by Thunderboltâ„¢ 3
- High-bandwidth and low-latency network support by dual 2.5GbE Ethernet
- Intel® Wi-Fi 6 802.11ax makes latency a thing of the past
- Effective cooling solution design for the better thermal dissipation
- Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
- Comprehensive connectivity with USB3.2 Gen 2 Type-A and Type-Câ„¢ connection
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
| Motherboard | |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000, Ryzen 3000 G |
| Chipset | B550 |
| Memory Speed | up to 5400 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 2 x Intel Thunderbolt 3,1 x HDMI |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzenâ„¢ 5000 Series* and Ryzenâ„¢ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU\'s specification. AMD Ryzenâ„¢ Ryzenâ„¢ 5000 G-Series and Ryzenâ„¢ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: 3rd Generation AMD Ryzenâ„¢ processors support PCIe 4.0 x8 mode 3rd Generation AMD Ryzenâ„¢ with Radeonâ„¢ Graphics processors support PCIe 3.0 x8 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. |

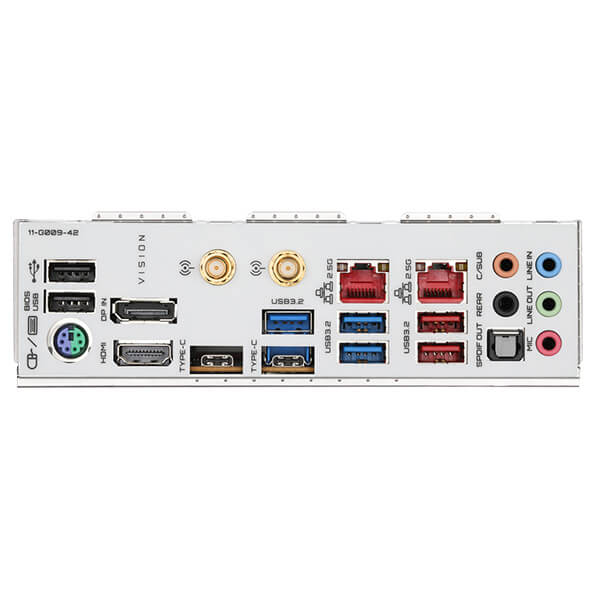

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DisplayPort In port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x Thunderboltâ„¢ 3 connectors (USB Type-Câ„¢ port, with USB 3.2 Gen 2 support) 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x SATA DOM power connector 1 x front panel header 1 x front panel audio header 1 x USB Type-Câ„¢ port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
