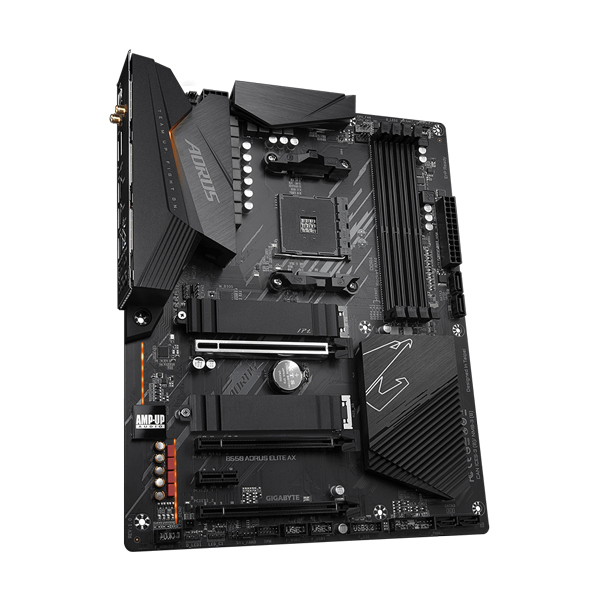

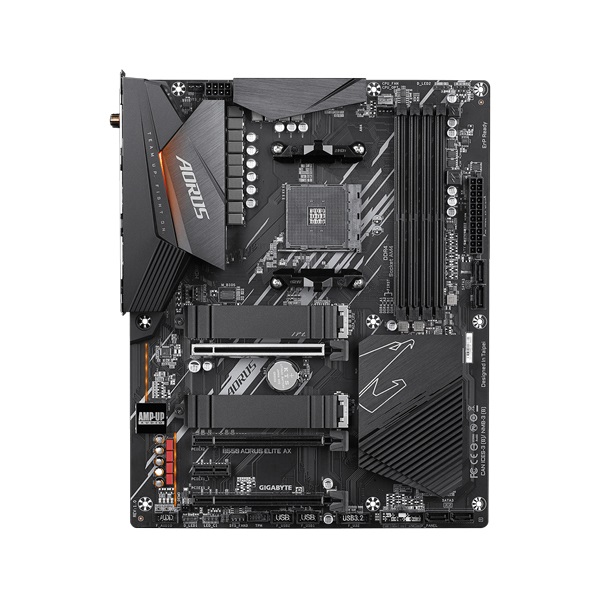

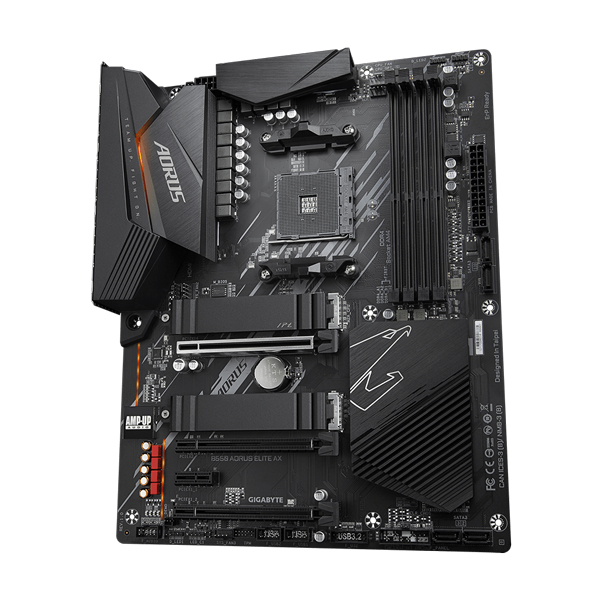

Gigabyte B550 Aorus Elite AX (Wi-Fi) Motherboard
Bank Credit & Debit Card EMI Offer
- Brand: GIGABYTE
- Product Code: B550-AORUS-ELITE-AX
- Availability: Out Of Stock
Gigabyte B550 Aorus Elite AX (Wi-Fi) Motherboard
Offer Price
₹15,700
(3% off ) ₹16,200
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Important Notice :
- BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
- The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
- For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website
Features
AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzenâ„¢ 5000 Series/ 3rd Gen Ryzenâ„¢ and 3rd Gen Ryzenâ„¢ with Radeonâ„¢ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- True 12+2 Phases Digital VRM Solution with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks
- Ultra Durableâ„¢ PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1200 and WIMA Capacitors
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Rear DisplayPort & HDMI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
| Motherboard | |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000,Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000, Ryzen 3000 G |
| Chipset | B550 |
| Memory Speed | up to 4733 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x DisplayPort,1 x HDMI |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzenâ„¢ 5000 Series* and Ryzenâ„¢ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU\'s specification. - AMD Ryzenâ„¢ Ryzenâ„¢ 5000 G-Series and Ryzenâ„¢ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode |
| Wireless Networking | WiFi 6,Bluetooth 5 |

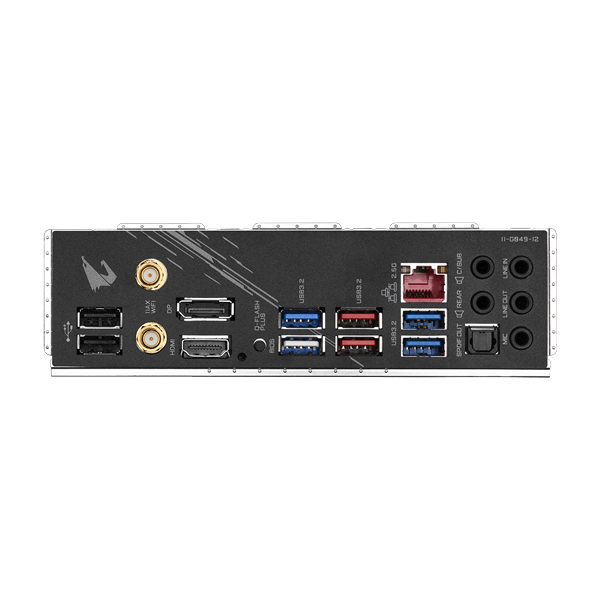

| Back Panel I/O Ports | 1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
