Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard
Gigabyte B460M Aorus Pro Motherboard

Gigabyte B460M Aorus Pro Motherboard

/ Write a review

Tech Yatra sale 2025
  • Brand: GIGABYTE
  • Product Code: B460M-AORUS-PRO
  • Availability: Out Of Stock

Gigabyte B460M Aorus Pro Motherboard

Offer Price

₹9,179

(16% off ) ₹10,870
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Intel® B460 AORUS Motherboard with RGB Fusion 2.0 with Digital LEDs, Intel® GbE LAN with cFosSpeed, Advanced Thermal Design with Enlarged Heatsink, USB 3.2 Gen1 Type-C , Dual M.2 Slots, M.2 E-key Slot for PCIe WIFI Module Upgradable

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Advanced Thermal Design with Enlarged Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard
  • Blazing Fast Intel® GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen1 Type-C™ Support
  • M.2 E-key Slot for PCIe WIFI Module Upgradable
  • AMP-UP Audio with ALC1200 with Nichicon MW Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
  • Intel® Optane™ Memory Ready

Specifications

CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset Intel® B460 Express Chipset
Memory
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard Graphics
 Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
LAN Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Intel® Optane™ Memory Ready
* System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only.
USB

Chipset:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
Chipset:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x RGB LED strip headers
  7. 6 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 2 x Thunderbolt™ add-in card connectors
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x Q-Flash Plus button

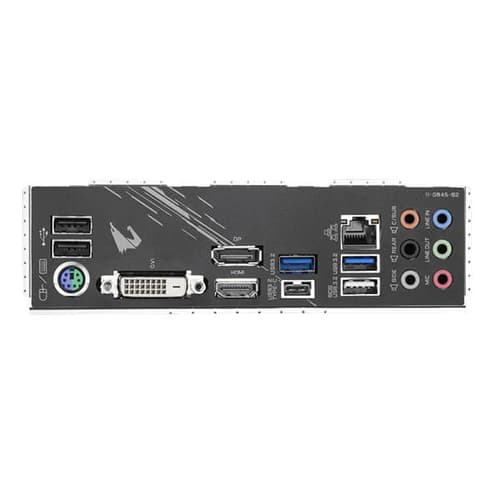

Back Panel Connectors
 Chipset:
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  6. 3 x USB 3.2 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 6 x audio jacks
I/O Controller
 iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset B460
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor Micro-ATX

Questions and Answers

Q. Can I use intel core i9 10900k and GPU like rx 6900 xt 19/02/2021

A. Yes.

ANSHUL (Verified Buyer )

Q. does it have gigabyte fusion?
 16/02/2021

A. Yes.

aarush singh (Verified Buyer )

Q. What is diffrence between this motherboard and B460 Aorus pro ac? which one is better?Should i opt for this motherboard if my budget is around 10k? 03/02/2021

A. AC is WIFI included. You may choose any as per your budget.

Karan Nagvekar (Verified Buyer )

Q. Can I use 3200MHz frequency ram on this motherboard..?
 19/01/2021

A. yes but will run under clocked as per the board's max limit.

Sekhar (Verified Buyer )

Q. Can I use ryzen 5 3500x in this motherboard?
Does it have wifi inbuilt? 31/12/2020

A. The board is for LGA1200 socket, not for AMD CPUs. Also it does not have WIFI.

SHAIBAL BHOWMICK (Verified Buyer )
