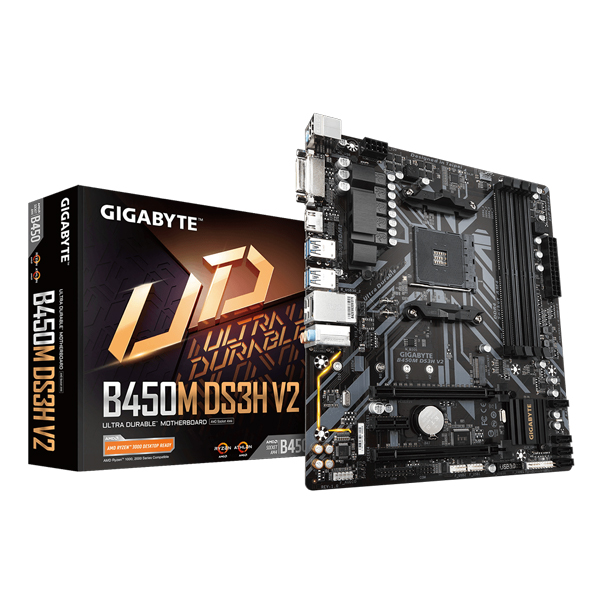

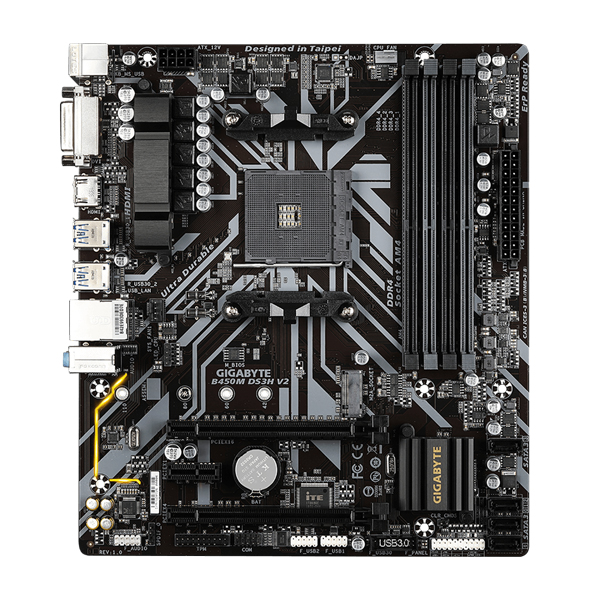

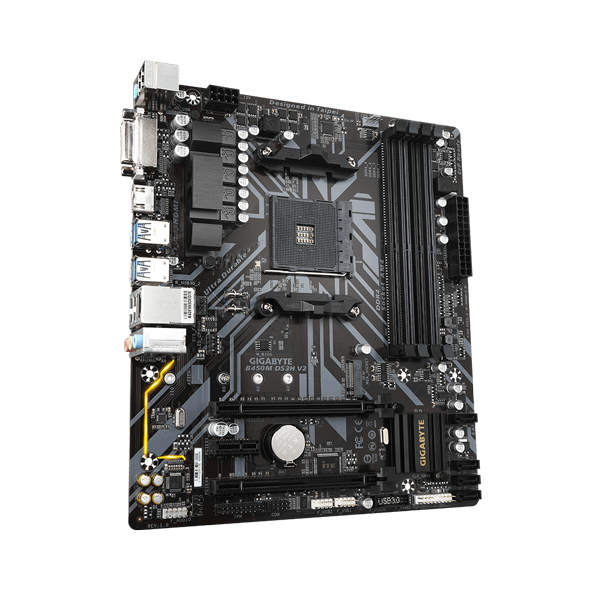

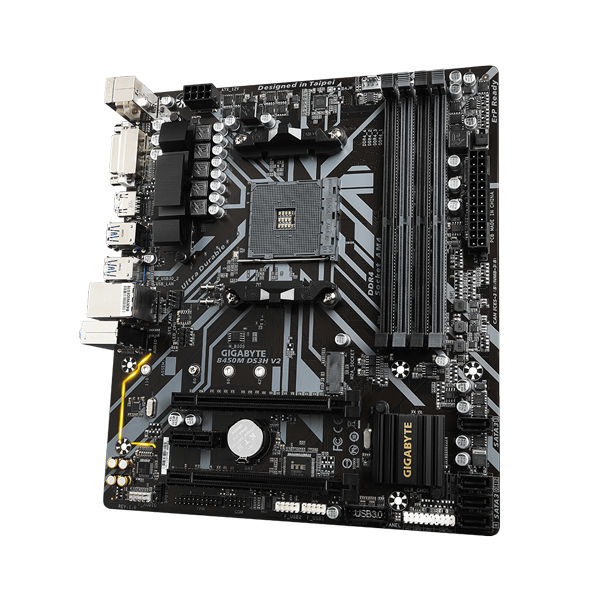

Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard
Gigabyte B450M DS3H V2 Motherboard

Gigabyte B450M DS3H V2 Motherboard

/ Write a review

Bank Card Pffer
  • Brand: GIGABYTE
  • Product Code: B450M-DS3H-V2
  • Availability: Out Of Stock

Gigabyte B450M DS3H V2 Motherboard

Offer Price

₹6,372

(30% off ) ₹9,100
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

AMD B450 Ultra Durable Motherboard with Digital VRM Solution, GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, RGB LED Strip Header, CEC 2019 Ready

  • Supports AMD Ryzenâ„¢ 5000 series/ 3rd Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢/ 1st Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ 1st Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Athlonâ„¢ with Radeonâ„¢ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Feature Digital VRM Solution with Low RDS(on) MOSFETs
  • HDMI, DVI-D Ports for Multiple Display
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
  • CEC 2019 Ready, Save Power with a Simple Click

Specifications

CPU
  1. AM4 Socket: Supports AMD Ryzenâ„¢ 5000 series/ 3rd Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢/ 1st Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ 1st Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Athlonâ„¢ with Radeonâ„¢ Vega Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset AMD B450
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
    * Support for HDMI 2.0 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB

(Note) Actual support may vary by CPU.
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  4. Support for S/PDIF Out
LAN Realtek® GbE LAN chip (1000/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
(Note) Actual support may vary by CPU.
Multi-Graphics Technology Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
    * Actual support may vary by CPU.
    * Supports only M.2 SATA SSDs when using an AMD Athlonâ„¢-series/ 7th Gen. A-series or Athlonâ„¢ X4 APU.
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB Chipset:
  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
  1. 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x CPU cooler LED strip/RGB LED strip header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper

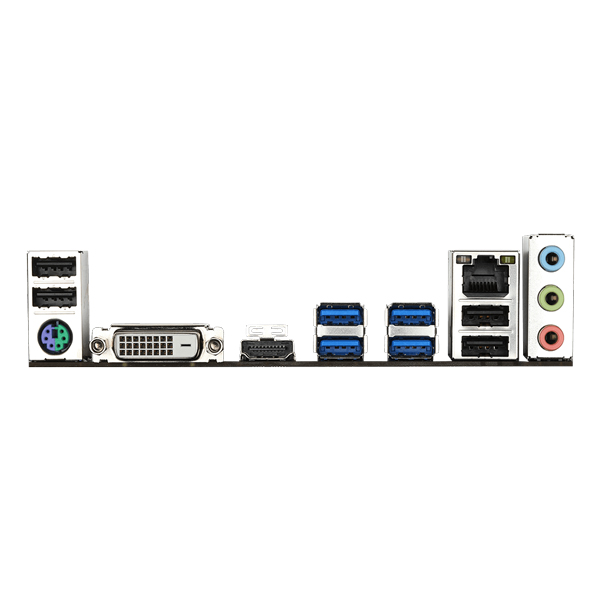

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x HDMI port
  4. 4 x USB 3.1 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Warranty 3 Years
Note
***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Cpu Type AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset B450
Memory Speed up to 3600
Max Memory Support 128 GB
Supported Memory Type DDR4
Channel Supported Dual Channel
Memory Feature Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphics Port 1 x DVI-D, 1 x HDMI
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Back Panel I/O Ports 1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years
Note

Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

Questions and Answers

Q. Does it support Ryzen 7 5700x processor 19/03/2025

A.

Yes Sir.

Rahul Bhavari (Verified Buyer )

Q. Does this motherboard support r5 5600x processor out of the box?
Please reply asap. 18/03/2025

A.

Yes Sir.

Vishvendra Singh (Verified Buyer )

Q. Sir, i m going to use ryzen 5 5600 processor but confused about ram, want to use 3600mhz ram in this motherboard so should i go with it or do u have better suggestion for me? Thank you 27/09/2024

A. This board supports 3600 MHz after OC.

Manish Asari (Verified Buyer )

Q. Is it needed bios update for Amd ryzen5 3600 processor? 11/08/2024

A. Yes Sir.

Deb Kumar (Verified Buyer )

Q. Does it have inbuilt wifi connection 08/06/2024

A. No Sir, WiFi model is different.

Nithin Yadav (Verified Buyer )
