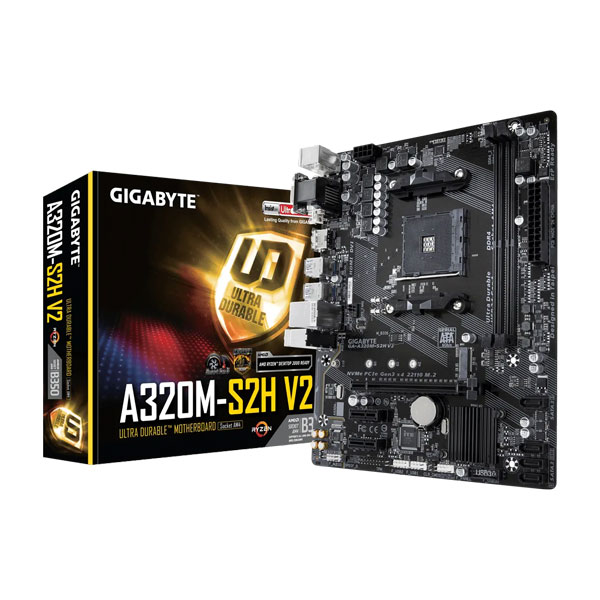

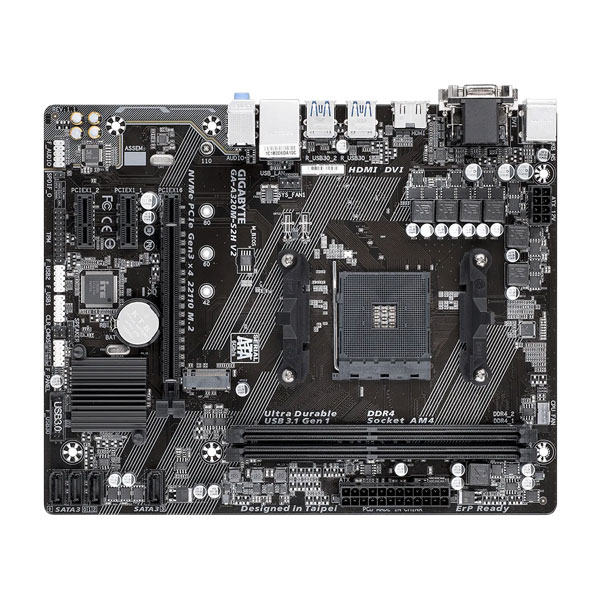

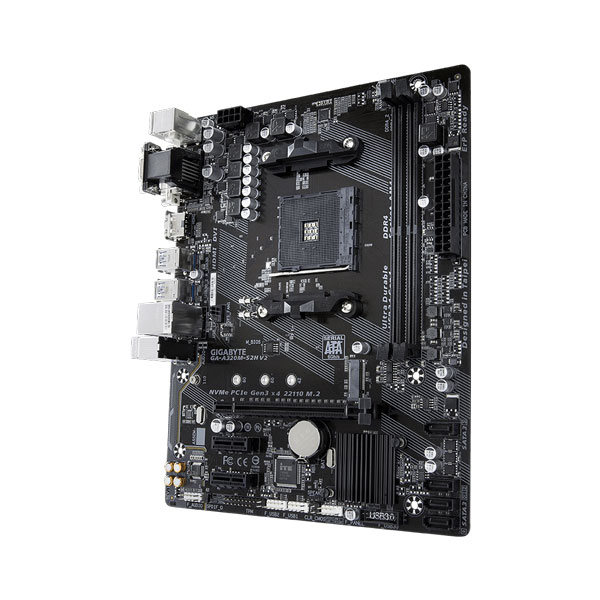

Gigabyte A320M S2H V2 Motherboard
Gigabyte A320M S2H V2 Motherboard
Gigabyte A320M S2H V2 Motherboard
Gigabyte A320M S2H V2 Motherboard
Gigabyte A320M S2H V2 Motherboard
Gigabyte A320M S2H V2 Motherboard
Gigabyte A320M S2H V2 Motherboard
Gigabyte A320M S2H V2 Motherboard

Gigabyte A320M S2H V2 Motherboard

/ Write a review

  • Brand: GIGABYTE
  • Product Code: GA-A320M-S2H-V2
  • Availability: Out Of Stock

Gigabyte A320M S2H V2 Motherboard

Offer Price

₹4,199

(4% off ) ₹4,385
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • GIGABYTE™ UEFI BIOS
  • All New GIGABYTE™™ APP Center, Simple and Easy Use

Specifications

CPU AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Chipset AMD B350
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
    * Actual support may vary by CPU.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
Maximum shared memory of 2 GB

* Actual support may vary by CPU.
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * Actual support may vary by CPU.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
    * Actual support may vary by CPU.
    * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
USB Chipset:
  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
  1. 4 x USB 3.1 Gen 1 ports on the back panel
nternal I/O Connectors
  • x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.1 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  • 1 x speaker header
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header

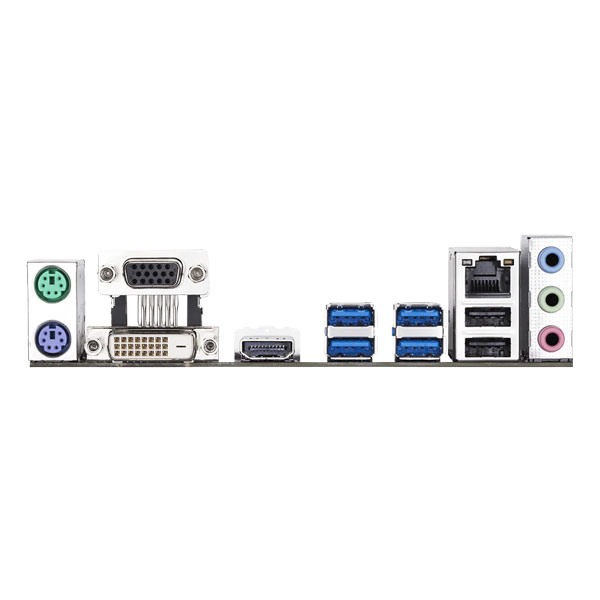

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 1 x HDMI port
  6. 4 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller TE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    3D OSD
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor; 24.4cm x 19.5cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset A320
Max Memory Support 32 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 Years

Questions and Answers

Q. I bought this motherboard along with Patriot memory Viper 8gb Ram 3200mz from MD COMPUTERS.
Question-
1. should I but one more same model RAM to use it as a Dual channel, or should I buy new 2x8 GB ram to use it as Dual Channel?

2. Can I buy 2x16 GB ram to use as Dual channel? will it work on this motherboard? 23/12/2024

A. Only a kit of 2 rams are dual channel and you can use 2x16GB in this motherboard.

Zamaan Shaikh (Verified Buyer )

Q. WILL ryzen 5 3500/3500x support in this motherboard 18/01/2023

A. Yes.

ARJUN RS (Verified Buyer )

Q. I use amd Athlon 3000g . Need to BIOS update?? 03/10/2021

A. No, BIOS already updated.

Guri (Verified Buyer )

Q. Motherboard BIOS update?? 27/09/2021

A. Please specify the CPU you will be using with.

Gurvinder (Verified Buyer )

Q. Manufacturing date??? 17/09/2021

A. Kindly drop a mail.

junaid Khan (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 1
  • 0
  • 0
  • 0
  • 0
    5.0
    1 rating &
    1 review

5 27th December 2024

I have been using this Motherboard since 2021 along with AMD Athlon 3000g + Patriot Memory Viper Elite II 8gb ram. It is working perfectly fine without any issues. It is time to upgrade now.!!!
