Deepcool DQ750-M-V2L White 80 Plus Gold SMPS
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: DEEPCOOL
- Product Code: DP-DQ750-M-V2L-WH
- Availability: Out Of Stock
Deepcool DQ750-M-V2L White 80 Plus Gold SMPS
Offer Price
₹8,100
(46% off ) ₹15,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
- 80 PLUS® GOLD certified - Up to 91.2% efficiency
- 100% High quality Japanese capacitors
- Full bridge PFC + LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

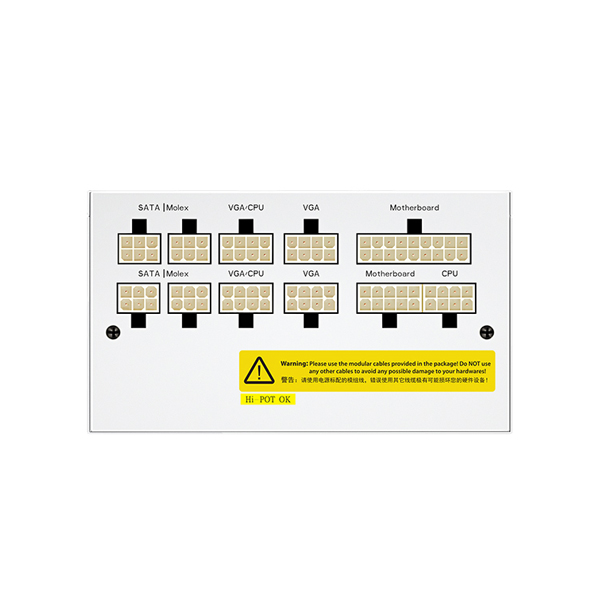

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
Specifications
| Model | DQ750-M-V2L WH |
| Type | ATX 12V V2.31 |
| Certifications | 80PLUS GOLD |
| Dimension | 150×160×86mm (W × L × H) |
| Output Capacity | 750W |
| Input Voltage | 100-240V |
| Input Current | 10.0A |
| Input Frequency Range | 47-63Hz |
| Fan Size | 120mm |
| PFC | Active |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms(80% Loading) |
| Efficiency | >90% Under Typical Load (50% Loading) |
| Standby Efficiency | ErP Lot 3 2014 |
| Protection | OVP/UVP/OCP/SCP/OPP/OTP |
| Operation Temperature | 0-40°C |
| Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Psu | |
| Wattage | 750 Watt |
| Certification | 80 Plus Gold |
| Modular | FULLY MODULAR |
| PCIe Connector (6+2) | 4 |
| SATA Connector | 6 |
| Peripheral (4-Pin) | 4 |
| Warranty | 10 Years |
