SPECIFICATIONS
| Model | DQ650ST |
| Type | ATX 12V V2.31 |
| Certifications | 80PLUS Gold |
| Dimension | 150×140×86mm (W x L x H) |
| Output Capacity | 650W |
| Input Voltage | 100~240V |
| Input Current | 10A/5A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm FDB FAN |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 90% Under Typical Load |
| Protection | OVP / UVP / SCP / OPP / |
| Operation Temperature | 0~40°C |
| Regulatory | CE / FCC / CCC / CB / EAC / TUV |
| MTBF | 120,000 Hours |
| Warranty | 3 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
FEATURES
- Compatible with Intel ATX12V v 2.31.
- 80 PLUS® GOLD certified: Up to 87-90% efficiency (at 20-100% loading).
- 120 mm PWM-capable fan with FDB bearing with specialized fan impeller that delivers stronger wind pressure, ultra-low noise operations, and excellent performance.
- Longer flat cable for enhanced cable management to boost system cooling capacity.
- Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.
- Smart eco-friendly chipset, consuming only < 0.3W in off-mode. Compliant to ErP standards.
- CircuitShieldâ„¢ - OVP, UVP, SCP, and OPP.
- Compliant Multi-Way SLI / CrossFire + Multi-Core CPUs.
- High reliability with at least 120,000-hour MTBF.
Description

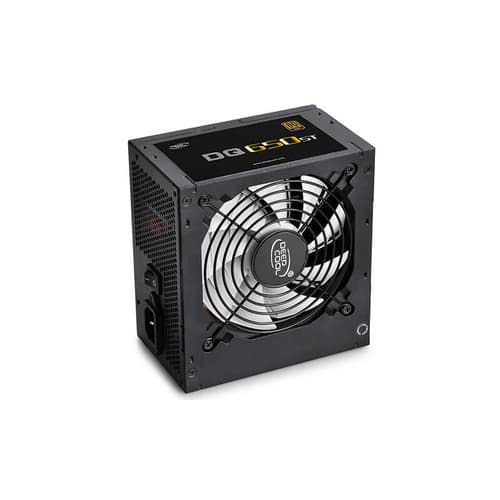

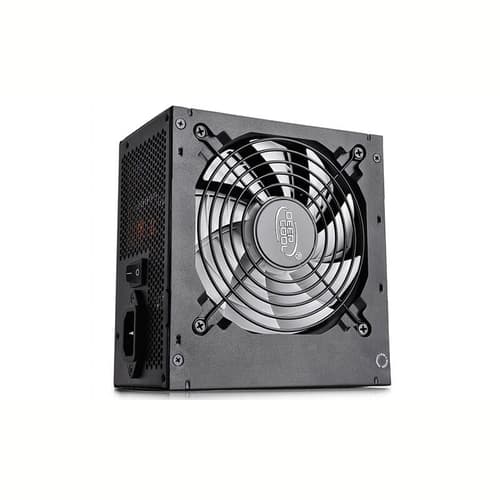

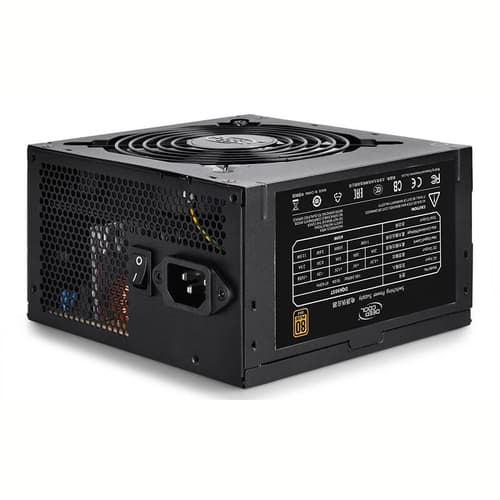

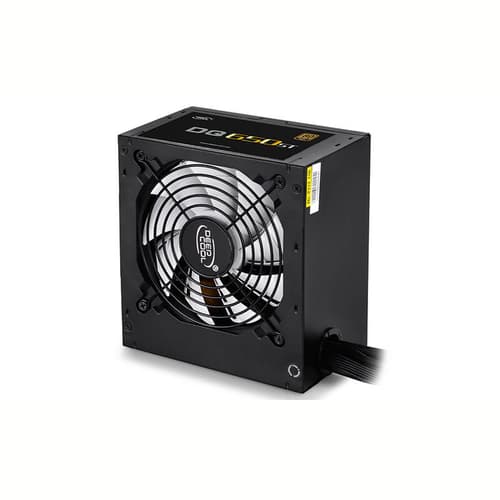

DQ650ST is certified to 80 PLUS Gold, achieving up to 87-90% electrical efficiency, lowering heat generation and reducing operational costs. This PSU offers outstanding and stable performance, making it one of the best Deepcool PSU solutions. DQ650ST is capable of providing a continuous 650W electrical supply under 50oC. Cooling is achieved with a quiet 120mm variable-speed fan. DQ650ST is provided with all the features necessary for building the perfect gamer rig.

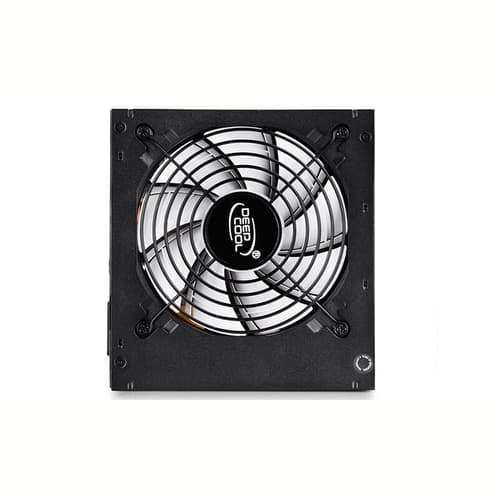

Silent, High Performance Fan
120 mm PWM-capable fan with FDB bearing with specialized fan impeller that delivers stronger wind pressure, ultra-low noise operations, and excellent performance.
| Psu | |
| Wattage | 650 Watt |
| Series | DQ SERIES |
| Certification | 80 Plus Gold |
| PCIe Connector (6+2) | 4 |
| SATA Connector | 5 |
| Peripheral (4-Pin) | 3 |
