SPECIFICATIONS
| Model | DN650 |
| Type | ATX 12V V2.31 |
| Dimension | 650W |
| Input Voltage | 230V |
| Input Current | 5.0A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 85% Under Typical Load |
| Protection | OVP/UVP/SCP/OPP |
| Operation Temperature | 0~40°C |
| Regulatory | CE/CB/EAC/CCC |
| MTBF | 100,000 Hours |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
FEATURES
- Compliant Intel ATX12V v2.31
- Active PFC makes the efficiency higher
- 80 PLUS® 230V EU certified — up to 85% efficiency
- 120mm silent fan with temperature control function
- The longer full mesh cable design supports cable management perfectly
- Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
- Intelligentized eco-friendly chipset, consume < 1W in its off-mode, compliant Erp standard
- CircuitShield™ —OVP, UVP, SCP, OPP
- Supports Multi-Way SLI / CrossFire + Multi-Core CPUs
- High reliability with an MTBF of at least 100,000 hours of use
Description
DN650 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. The PSU is designed to have < 1W power consumption under off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications.

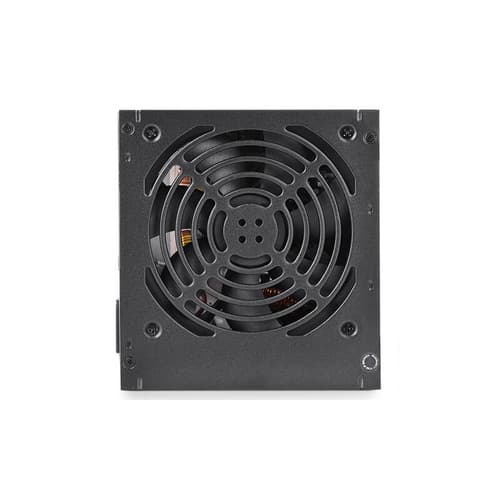

Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible performance-to-noise ratio.
Longer Cable Design
Longer full mesh cable design for enhancing cable management.
| Psu | |
| Wattage | 650 Watt |
| Series | DN SERIES |
| PCIe Connector (6+2) | 4 |
| SATA Connector | 5 |
| Peripheral (4-Pin) | 3 |
