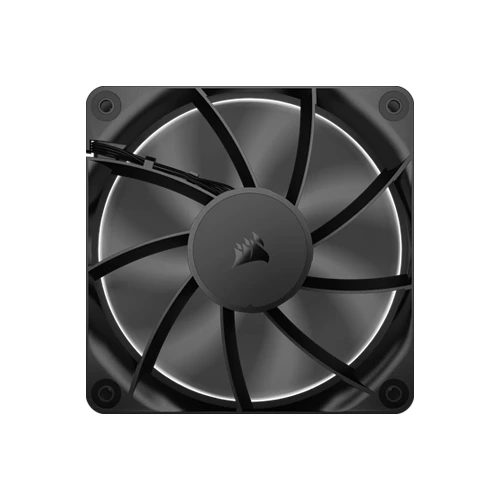

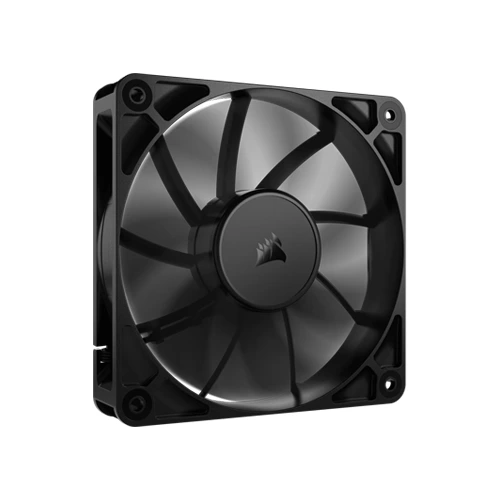

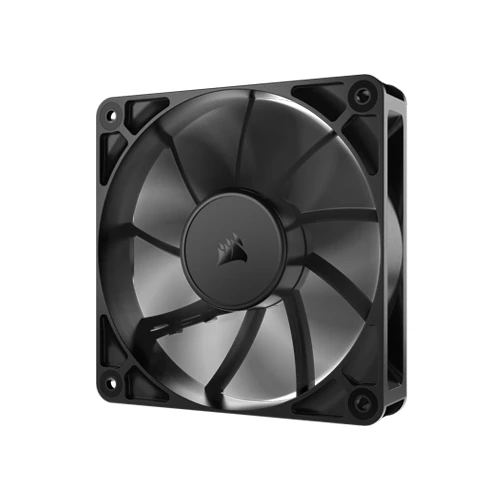

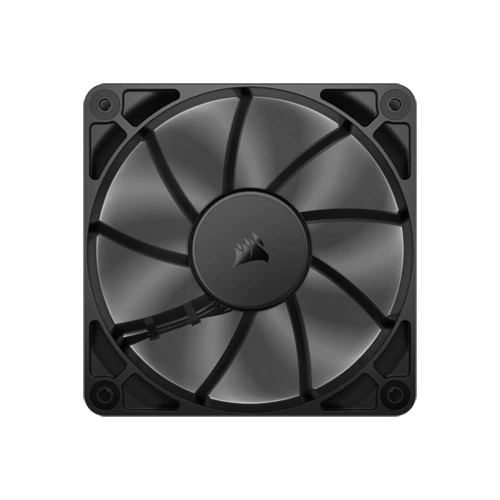

Corsair RS120 120mm PWM Fan

Features:

• Daisy-chainable 4-pin PWM connectors
• CORSAIR AirGuide technology for concentrated airflow
• CORSAIR Magnetic Dome bearing for longevity and low noise
• Zero RPM mode at low load

DIRECT-TO-MOTHERBOARD CONNECTION

Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.

AIRFLOW AND STATIC PRESSURE

A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.

BLADE SHAPE

Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.

FAN HOUSING

The fan housing was designed to support the largest possible blade radius within its size limit.

CORSAIR AIRGUIDE

Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.

MAGNETIC DOME BEARING

This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

PROVEN COOLING PERFORMANCE

RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.

ZERO RPM MODE

PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.

• Fan Airflow: 13.3 - 72.8 CFM
• Fan Model: RS SERIES
• Flow Type: STATIC PRESSURE
• LINK Compatibility: None
• Fan Static Pressure: 0.2 – 4.15 mm-H2O
• Speed: 420 – 2100 RPM ±10%
• Sound Level: 10 - 36 dBA
• PWM Control: Yes
• Power Draw: 0.4A
• LED Color: None
• Fan Size: 120mm x 25mm
• Bearing Type: Magnetic Dome
