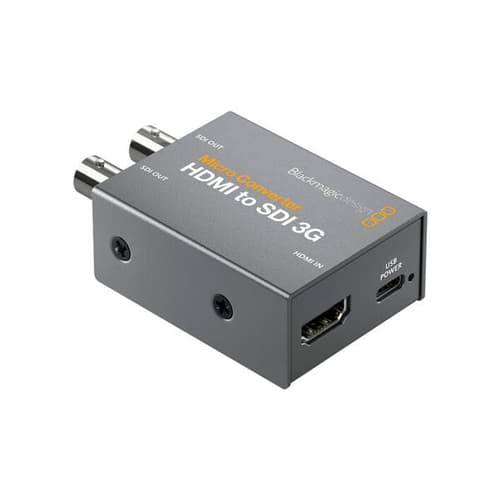

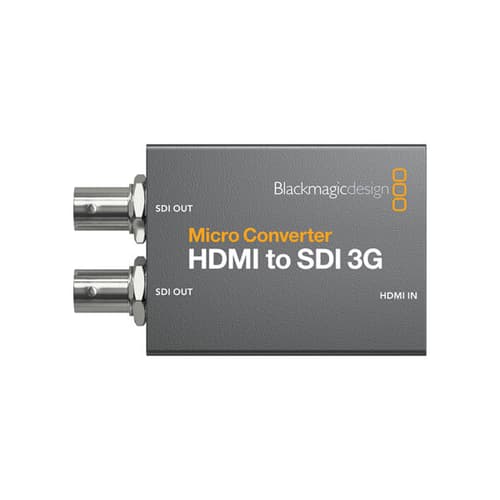

Blackmagic HDMI TO SDI 3G Micro Converter
Bank Credit & Debit Card EMI Offer
- Brand: Blackmagic Design
- Product Code: CONVCMIC-HS03G-WPSU
- Availability: In Stock
Blackmagic HDMI TO SDI 3G Micro Converter
Offer Price
₹7,450
(12% off ) ₹8,500
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
Specification:
|
Connections |
|
| SDI Video Outputs | 2 x SD, HD or 3G‑SDI. Automatically matches the HDMI input. |
| HDMI Video Inputs | HDMI Type A in. |
| Multi Rate Support | Auto detection of SD or HD. |
| Updates, Configurations and Power | USB Type‑C. |
| Reclocking | Yes |
|
Standards |
|
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility. |
| SDI Color Precision | 4:2:2 |
| HDMI Video Standards | 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Settings Control | Via MacOSâ„¢ and Windowsâ„¢ software utility connected by USB. |
| Software | Internal software upgrade via USB. |
|
Power Requirements |
|
| Power Supply | +5V universal power supply included with international socket adapters for most countries. |
| Power Consumption | 2 W |
| Operational Voltage Range | 4.4 to 5.25V DC |
|
Environmental Specifications |
|
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Micro Converter HDMI to SDI 3G wPSU +5V universal power supply with international socket adapters |
| Warranty | 3 Year Limited Manufacturer's Warranty. |
| Note | *** Features, Price, Specifications are subject to change without notice. |
