Memory

4 x DIMM, Max. 192GB, DDR5  DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II

Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.

Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.

Graphics

1 x DisplayPort

1 x HDMI® port

Graphics specifications may vary between CPU types.

Supports max. 8K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slots

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.

USB

Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)

5 x USB 3.2 Gen 1 ports (5 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback

Audio Features

- Audio shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit

Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

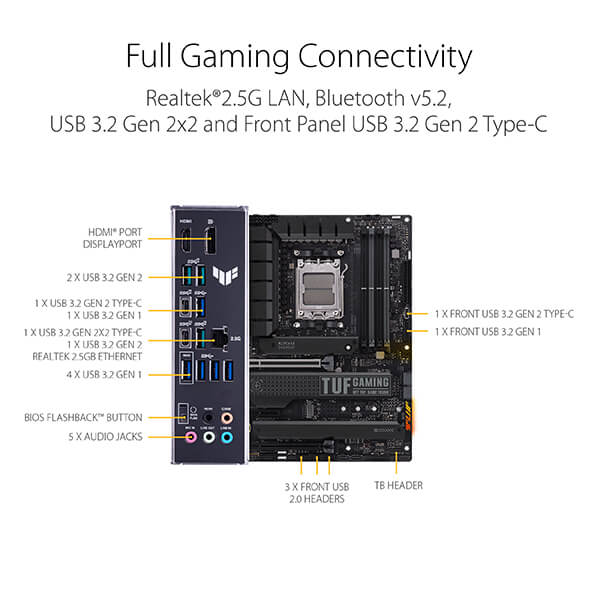

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)
• 5 x USB 3.2 Gen 1 ports (5 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™  button

Internal I/O Connectors

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header(s)

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header

Special Features

TUF PROTECTION

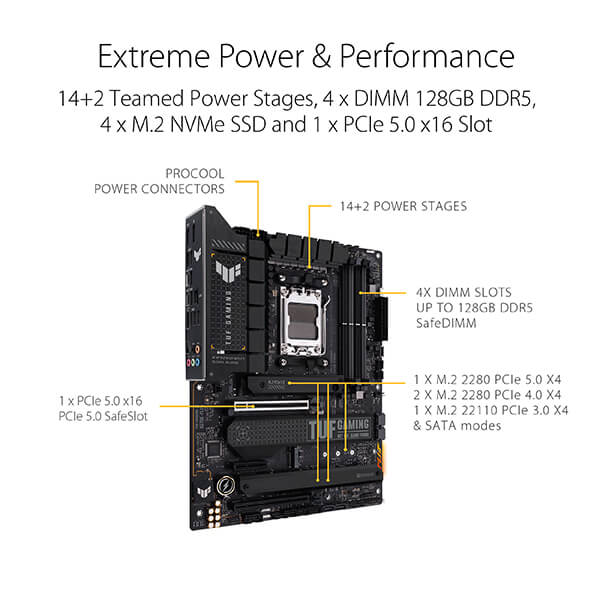

- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

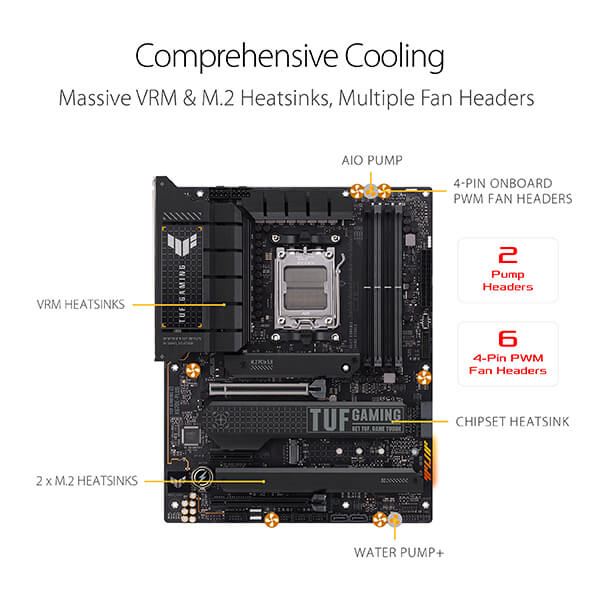

ASUS Thermal Solution

- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

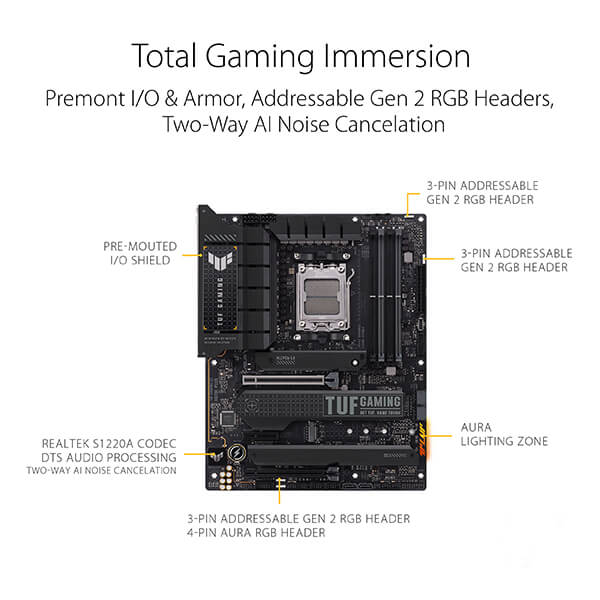

AURA Sync

- AURA RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization
- DIGI+ VRM
- Turbo app
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton Anti-virus software (Free Trial version)
WinRAR

UEFI BIOS

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

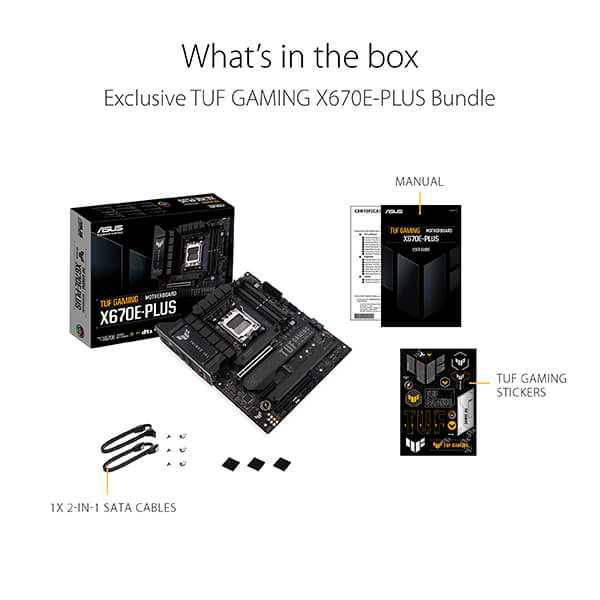

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

2 x Rubber packages for M.2
2 x Screw packages for M.2 SSD

Documentation

1 x TUF certification card
1 x User guide
