"4 x DIMM, Max. 128GB, DDR5

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

" Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration,

Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

1 x DisplayPort

* 1 x HDMI® port*

* * Supports max. 8K@60Hz as specified in DisplayPort 1.4.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** VGA resolution support depends on processors' or graphic cards' resolution.

AMD Ryzen™ 7000 Series Desktop Processors*

1 x PCIe 4.0/3.0 x16 slot(s)

AMD B650 Chipset

1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

2 x PCIe 4.0/3.0 x1 slots

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*

 4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

"Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2"

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

"Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Power pre-regulator reduces power input noise to ensure consistent performance

- Premium audio capacitors - Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

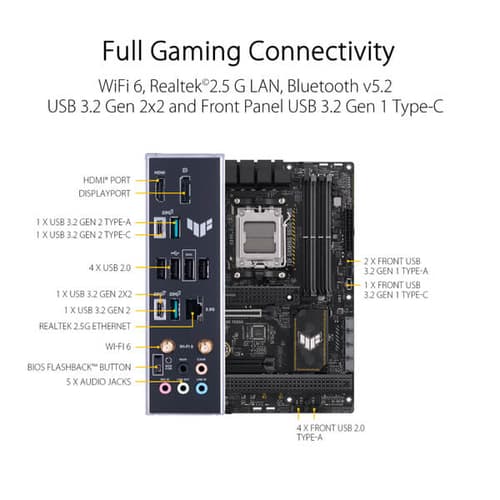

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

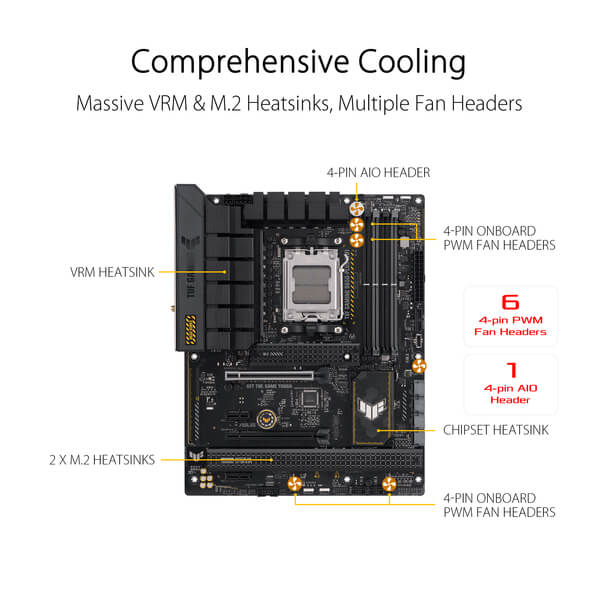

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )

1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Miscellaneous

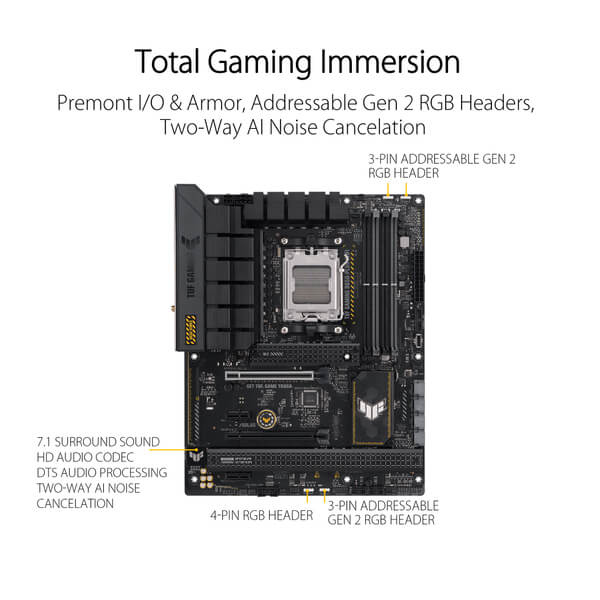

3 x Addressable Gen 2 header(s)

1 x Aura RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeDIMM

Aura Sync

- Aura RGB header(s)

- Addressable Gen 2 header(s)

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

- TurboV EVO

- DIGI+ VRM

- PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

MyAsus Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

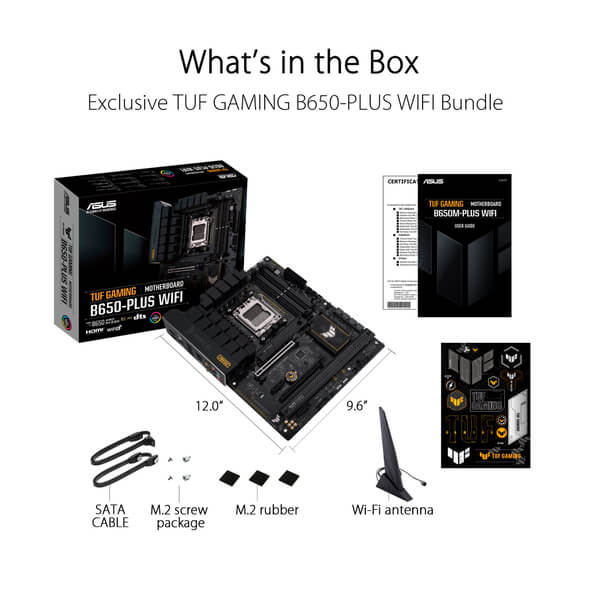

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

2 x Rubber Package(s) for M.2

1 x Screw package(s) for M.2 SSD

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User guide

"Windows® 11

Windows® 10 64-bit"

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
