• Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

• 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)

Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

1 x DisplayPort
1 x VGA port
1 x HDMI port

• Graphics specifications may vary between CPU types.
• Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI2.1

Intel Core Processors (14th & 13th & 12th Gen)

• 1 x PCIe 4.0 x16 slot
• Intel H610 Chipset
• 1 x PCIe 3.0 x1 slot

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th & 13th & 12th Gen)

Intel H610 Chipset

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
• 4 x SATA 6Gb/s ports

Rear USB (Total 4 ports)

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 5 ports)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 3 USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

• 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 3 USB 2.0 ports

• 1 x Aura RGB header
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM Port header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM
• Q-Slot
• Q-LED Core

ASUS Thermal Solution

• Aluminum heatsink design

Aura Sync

• Aura RGB header
• Addressable Gen 2 RGB headers

ASUS Exclusive Software

Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Two-Way AI Noise Cancellation

AI Suite 3

• Performance And Power Saving Utility
• EPU
• DIGI+ VRM
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR

UEFI BIOS

• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

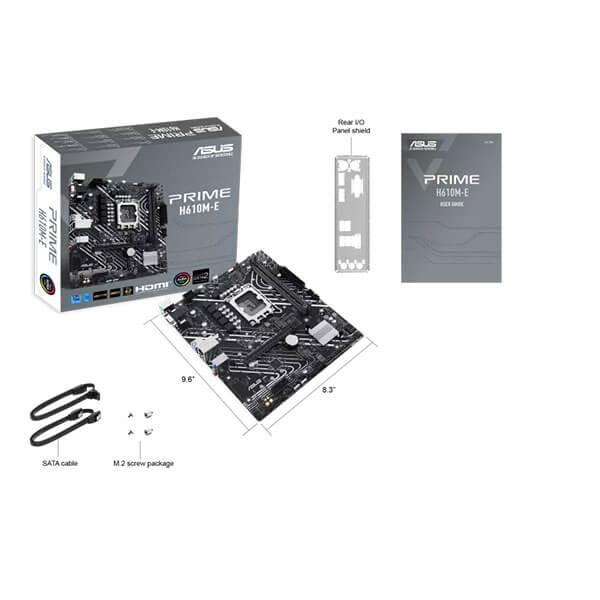

• 2 x SATA 6Gb/s cables

• 1 x I/O Shield
• 1 x M.2 SSD screw package

• 1 x User guide

• mATX Form Factor
• 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
