Asus P12R-M-10G-2T Server and Workstation Motherboard
Bank Credit & Debit Card EMI Offer
- Brand: ASUS
- Product Code: P12R-M-10G-2T
- Availability: Out Of Stock
Asus P12R-M-10G-2T Server and Workstation Motherboard
Offer Price
₹39,500
(18% off ) ₹48,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
Intel Xeon E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual 10G LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
- Dual Intel X710AT Gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- HDMI 1.4 support for high-resolution display maintenance and monitoring

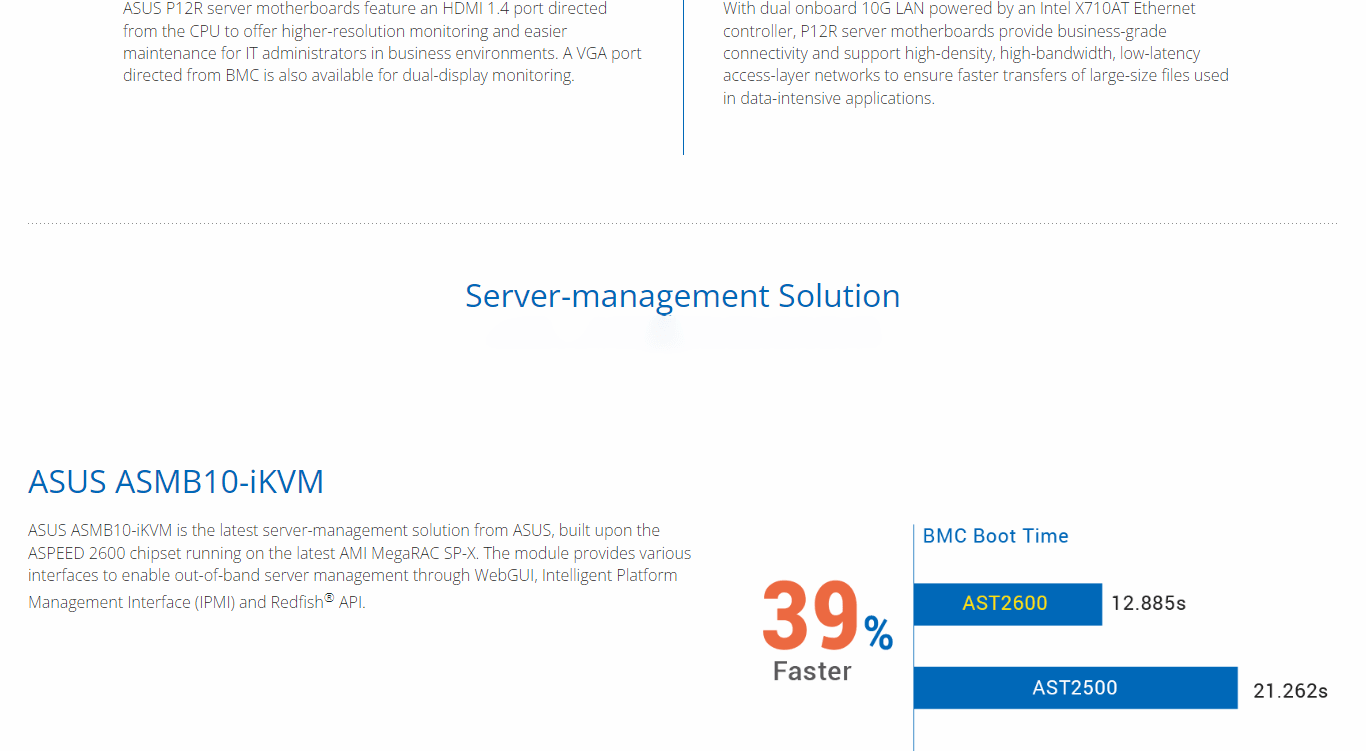

- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Specifications:
| Model | P12R-M-10G-2T |
| Processor / System Bus | 1 x Socket LGA1200 Intel Pentium Processors Intel Xeon E processors |
| Core Logic | Intel C252 Chipset |
| Memory |
|
| Expansion Slots |
|
| Form Factor | U ATX (9.6"x9.6", 244mm x 244mm) |
| Storage |
Storage Controller : (Support Software RAID 0/1/5/10 ) SAS Controller : |
| Networking | 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN |
| Graphic | Aspeed AST2600 with 64MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x USB3.2 Gen2 ports 1 x USB3.2 Gen1 header 1 x USB 2.0 pin header 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector 1 x VGA Header 1 x Onboard header for optional management card |
| Back I/O Ports | 2 x USB 3.2 Gen 2 1 x VGA Port 1 x HDMI Port 2 x 10 GbE LAN + 1 x Mgmt LAN |
| Management Solution |
|
| Weight | Gift Box (1-in-1) Net Weight : 0.76 KG Gross Weight : 1.3 KG Bulk Pack (10-in-1) Net Weight : 6.9 KG Gross Weight : 9.5 KG |
| Environment |
|
| Accessories | Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 4 x Plate for LGA1200 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1200 |
| Monitoring | CPU Temperature Fan RPM |
| Warranty | 3 Years |
| Note |
*** Image use as reference only *** Features, Price, Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1200 |
| Chipset | C252 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
