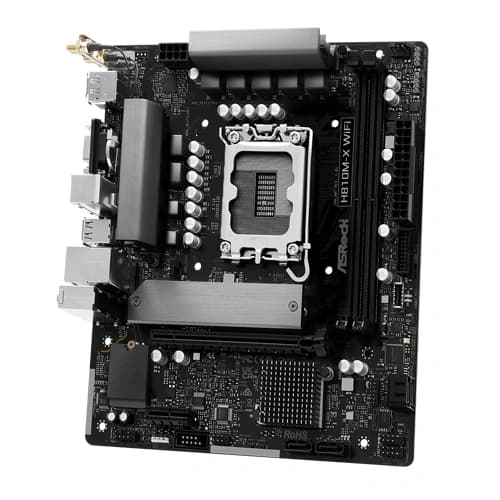

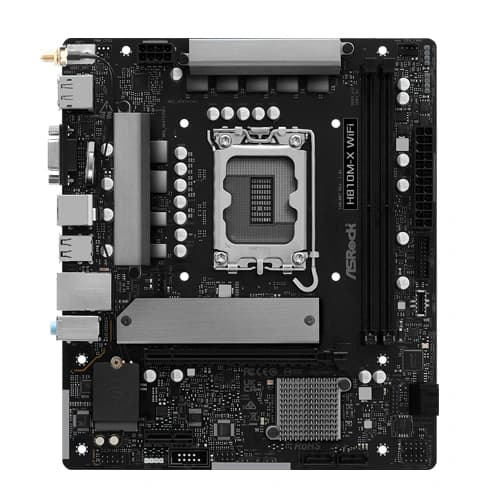

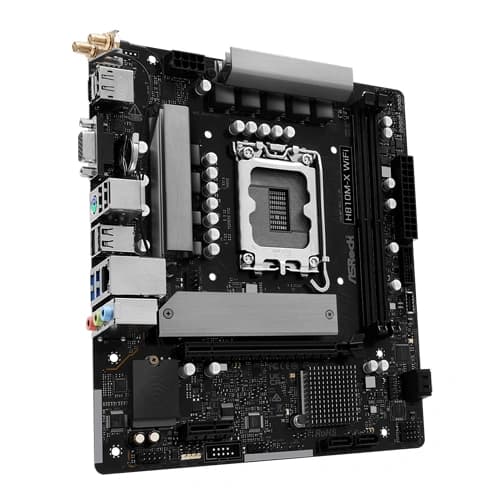

ASRock H810M-X WiFi M-ATX Motherboard

/ Write a review

Bank Card Pffer
  • Brand: ASROCK
  • Product Code: H810M-X-WIFI
  • Availability: In Stock

ASRock H810M-X WiFi M-ATX Motherboard

Offer Price

₹10,100

(37% off ) ₹16,000
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

H810M-X WiFi

  • Supports Intel Core Ultra Processors (Series 2) (LGA1851)
  • 6+1+1+1+1 Power Phase
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 6400
  • 1 PCIe 4.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3
    1 Hyper M.2 (PCIe Gen4x4)
    1 USB 3.2 Gen1 Type-C (Front)
    4 USB 3.2 Gen1 (2 Rear, 2 Front)
    6 USB 2.0 (4 Rear, 2 Front)
  • Realtek 2.5G LAN
  • Dual Band 802.11ac Wi-Fi + Bluetooth

 X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.

The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Motherboard
Platform INTEL
Socket LGA1851
Cpu Type Core Ultra
Chipset H810
Memory Speed up to 6400
Max Memory Support 128 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports DDR5 non-ECC, un-buffered memory
Supports Clocked Unbuffered DIMM (CUDIMM)
Supports Intel Extreme Memory Profile (XMP) 3.0x
Graphics Port 1 x HDMI,1 x DisplayPort,1 x D-Sub
Expansion Slots CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Wireless Networking WiFi,Bluetooth 5.0

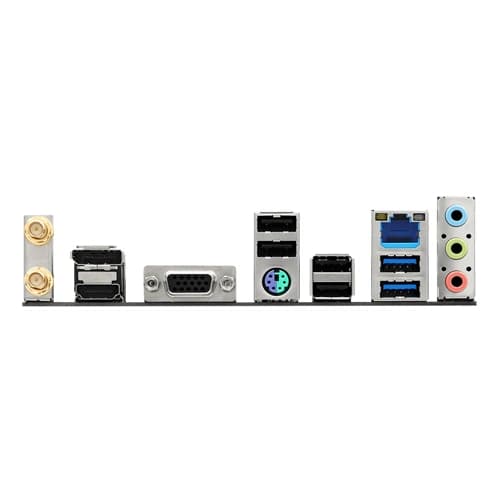

Back Panel I/O Ports - 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connector - 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
Form Factor Micro-ATX
Warranty 3 Years
Note

Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only
