Superb Productivity -

• PCIe Gen5 (M.2) -
• Dual Channel DDR5

Rock-Solid Durability -

• 14+2+1 Power Phase, 60A SPS

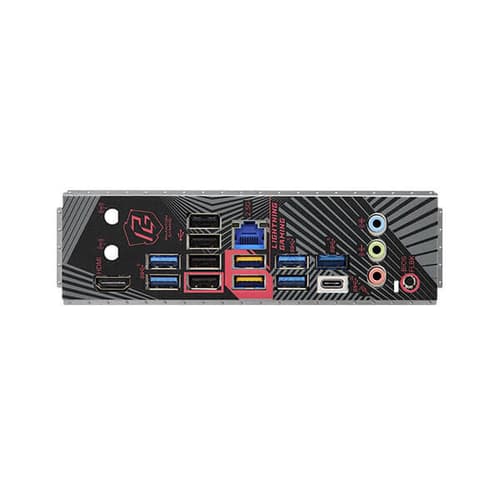

• Pre-Installed I/O Shield

Ultrafast Connectivity

• 2.5G LAN
• ASRock Lightning Gaming Ports EZ Update
• BIOS Flashback Button
• ASRock Auto Driver Installer EZ Troubleshooter
• ASRock Post Status Checker

• Dual Channel DDR5 Memory Technology -
• 4 x DDR5 DIMM Slots -
• Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* - Max.
• capacity of system memory: 128GB* -
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG Supports Phantom Gaming LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

CPU: -

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

• 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode
• 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

CPU: -

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset: -

• 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode* -
• 4 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• 1 x USB 3.2 Gen2x2 Type-C (Rear)
• 1 x USB 3.2 Gen2 Type-C (Front)
• 9 x USB 3.2 Gen1 (7 Rear, 2 Front)
• 8 x USB 2.0 (4 Rear, 4 Front)

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
• 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

Software -

• ASRock Motherboard Utility (Phantom Gaming Tuning) -
• ASRock Phantom Gaming LAN Software
• ASRock Polychrome SYNC UEFI - ASRock Full HD

UEFI -

• ASRock Auto Driver Installer
• ASRock Instant Flash

• 1 x User Manual
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• 8 Layer PCB

• Microsoft® Windows® 10 64-bit / 11 64-bit

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
