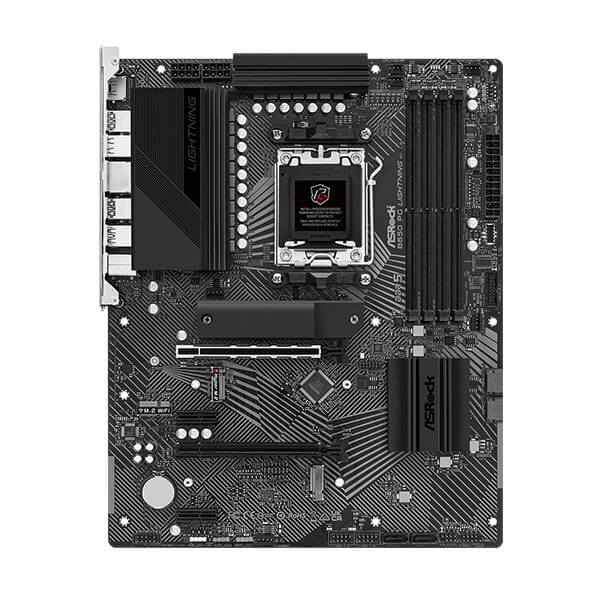

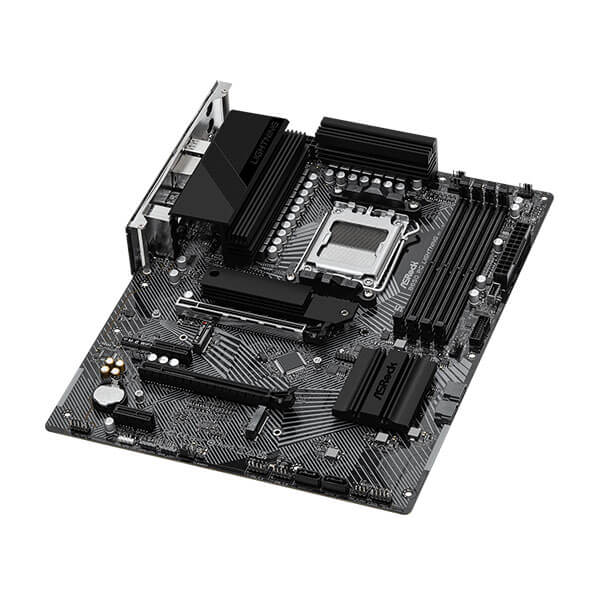

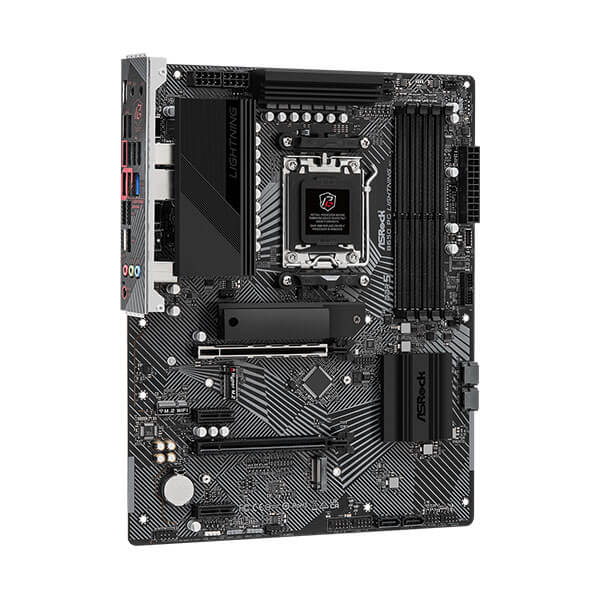

ASRock B650 PG Lightning ATX Motherboard
Bank Credit & Debit Card EMI Offer
- Brand: ASROCK
- Product Code: B650-PG-LIGHTNING
- Availability: Out Of Stock
ASRock B650 PG Lightning ATX Motherboard
Offer Price
₹16,450
(53% off ) ₹35,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Fetures
- B650 PG Lightning
- Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6400+(OC)
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio<//p>
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2
- Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB
- 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
Specification
| Unique Feature |
Superb Productivity -
Rock-Solid Durability -
Ultrafast Connectivity
|
| CPU | Supports AMD Ryzen 9000, 8000 and 7000 Series Processors |
| Chipset | - AMD B650 |
| Memory |
|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio |
|
| LAN |
|
| Slots |
CPU: -
Chipset:
|
| Storage |
CPU: -
Chipset: -
|
| RAID |
|
| USB |
|
| Connector |
|
| Rear Panel I/O |
|
| Software and UEFI |
Software -
UEFI -
|
| Accessories |
|
| Form Factor |
|
| OS |
|
| Certifications |
|
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Motherboard | |
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000, Ryzen 8000 , Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Graphics Port | AMD RDNA,HDMI 2.1 |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode* - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Back Panel I/O Ports | 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver) |

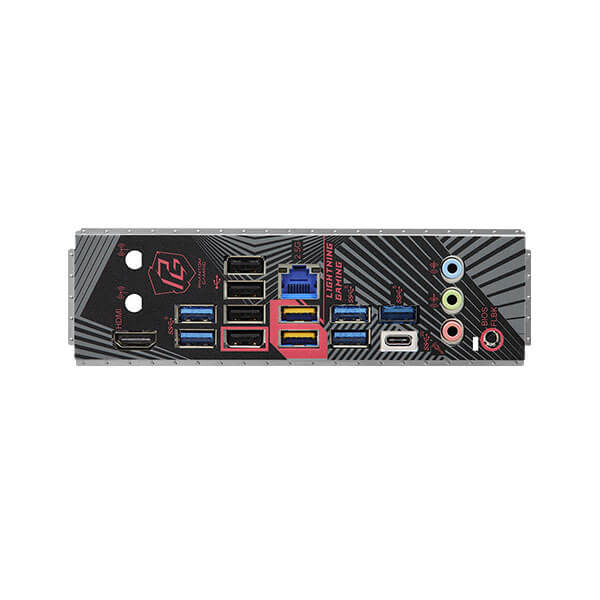

| Internal I/O Connector | 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) - 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
