ASRock B550M-ITX/AC (WI-FI) Motherboard
Bank Credit & Debit Card EMI Offer
- Brand: ASROCK
- Product Code: 90-MXBDH0-A0IAY2Z
- Availability: Out Of Stock
Related Products
ASRock B550M-ITX/AC (WI-FI) Motherboard
Offer Price
₹13,199
(47% off ) ₹25,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
B550M-ITX/ac
- Supports AMD AM4 Socket Ryzenâ„¢ 3000, 4000 G-Series and 5000 Series Desktop Processors*
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16
- Graphics Output: DisplayPort, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 6 USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C)
- Realtek Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
*Not compatible with AMD Ryzenâ„¢ 5 3400G and Ryzenâ„¢ 3 3200G.
| Motherboard | |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000, Ryzen 3000 G |
| Chipset | B550 |
| Memory Speed | up to 4733+ |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | ECC & non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots |
| Graphics Port | DisplayPort, HDMI |
| Expansion Slots | AMD Ryzen series CPUs (Vermeer and Matisse) - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs (Cezanne and Renoir) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode) - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O) |
| Wireless Networking | WiFi,Bluetooth 4.2 |

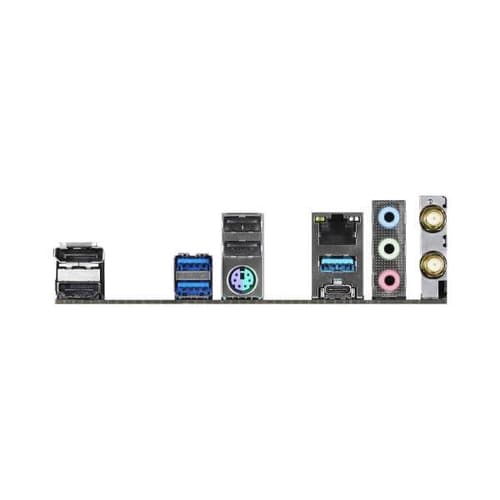

| Back Panel I/O Ports | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | - 1 x RGB LED Header - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin) - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Form Factor | Mini-ITX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
