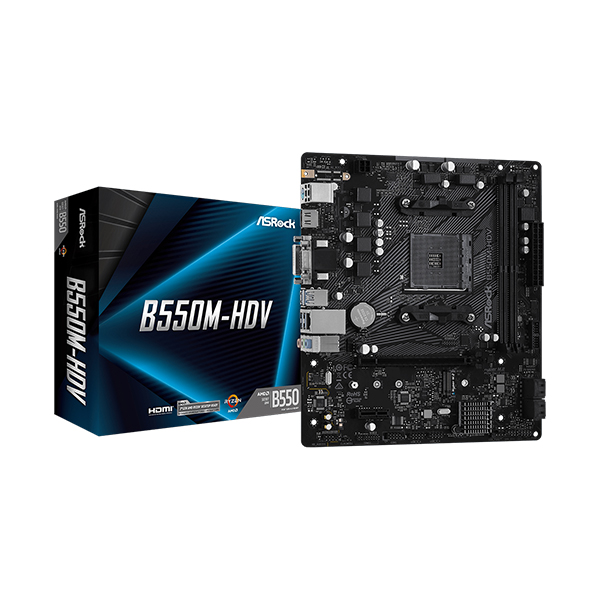

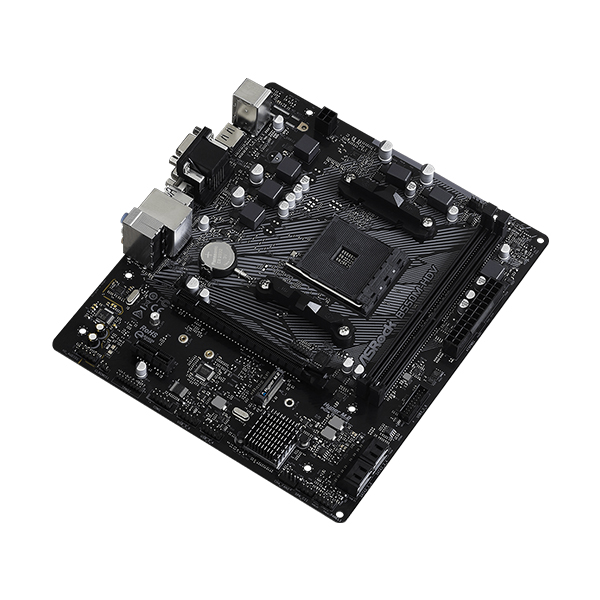

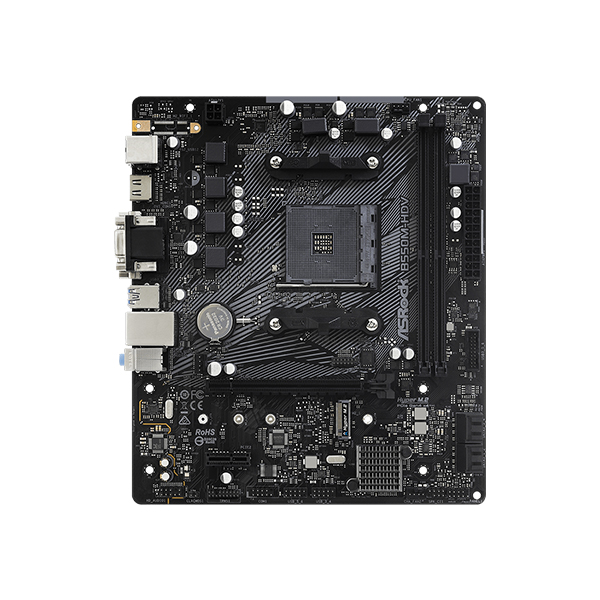

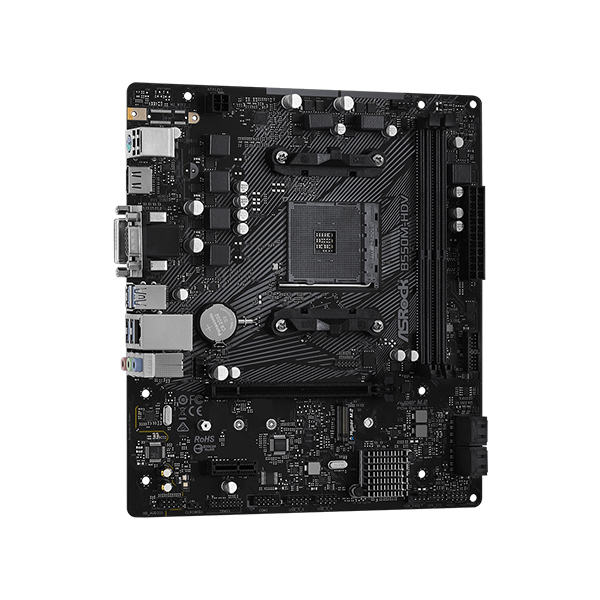

ASRock B550M-HDV Motherboard
Bank Credit & Debit Card EMI Offer
- Brand: ASROCK
- Product Code: B550M-HDV
- Availability: Out Of Stock
Related Products
ASRock B550M-HDV Motherboard
Offer Price
₹6,600
(63% off ) ₹18,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Important Notice :
- BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
- The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
- For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website.
FEATURES
- Supports AMD AM4 Socket Ryzenâ„¢ 3000, 4000 G-Series and 5000 Series Desktop Processors
- 6 Power Phase Design
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Gigabit LAN
| Motherboard | |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000, Ryzen 3000 G |
| Chipset | B550 |
| Memory Speed | up to 4733+ |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | ECC & non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots |
| Graphics Port | HDMI, DVI-D, D-Sub |
| Expansion Slots | AMD Ryzen series CPUs (Vermeer and Matisse) - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs (Cezanne and Renoir) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode) - 1 x PCI Express 3.0 x1 Slot |

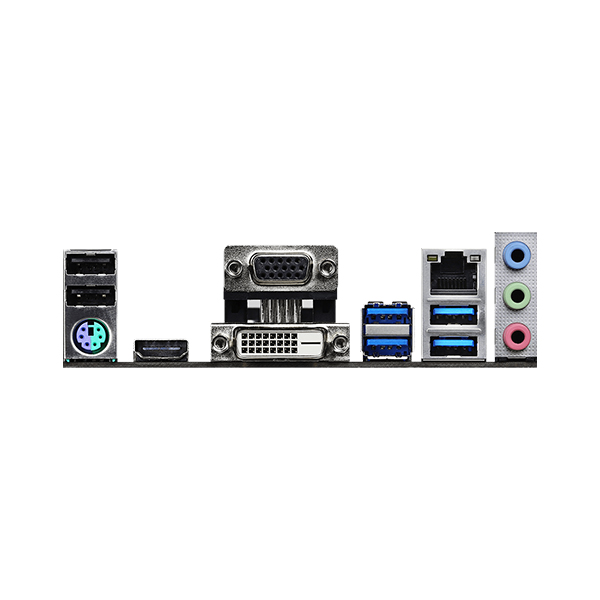

| Back Panel I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Form Factor | Micro-ATX |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
