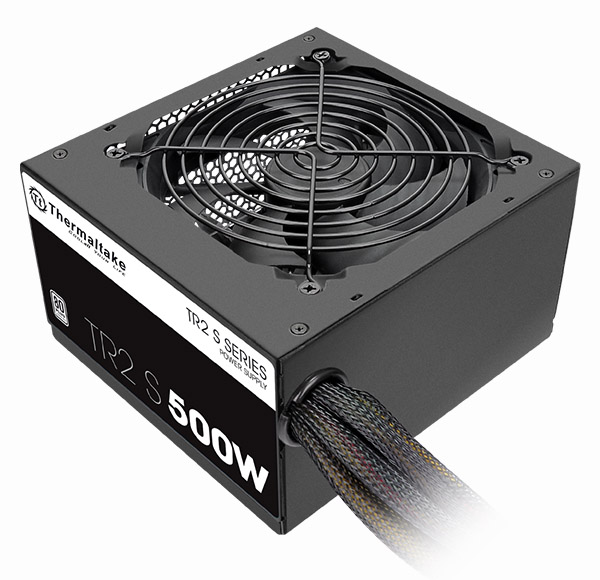

Thermaltake TR2 S 500W
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: THERMALTAKE
- Product Code: PS-TRS-0500NPCWEU-2
- Availability: Out Of Stock
Related Products
Thermaltake TR2 S 500W
₹3,099
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
|
P/N |
PS-TRS-0500NPCWEU-2 |
|
Short P/N |
TRS-0500P-2 |
|
Model |
TRS-500AH2NK |
|
Type |
Intel ATX 12V 2.3 |
|
Max. Output Capacity |
500W |
|
Color |
Black |
|
Dimension |
86mm x 150mm x 140mm |
|
PFC （Power Factor Correction） |
Active PFC |
|
Power Good Signal |
100-500 msec |
|
Hold Up Time |
16msec (minimum) within 60% load |
|
Input current |
8A max |
|
Input Frequency Range |
50 Hz - 60 Hz |
|
Input Voltage |
230 Vac |
|
Operating Temperature |
5℃ to +40℃ |
|
Operating Humidity |
20% to 85%,non-condensing |
|
Storage Temperature |
-40 ℃ to +55 ℃ |
|
Cooling System |
120mm Fan: 1800 R.P.M. ± 10% |
|
Storage Humidity |
10% to 95%, non-condensing |
|
Efficiency |
82-86% efficiency @ 20-100% load |
|
MTBF |
100,000 hrs minimum |
|
Safety Approval |
CE/CB/TUV |
|
PCI-E Connector |
PCI-E 6+2pin x 2 |
|
Warranty |
3 Years |
|
Note |
***Features, Price and specifications are subject to change without notice. |
THERMALTAKE TR2 S 500W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 500W connector’s
80 PLUS 230V Standard Certified and Skylake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, sixth-generation Skylake processors to achieve maximum energy savings.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading.
| Psu | |
| Wattage | 500 Watt |
| Series | TR2 S SERIES |
| Certification | 80 Plus White |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 5 |
| Peripheral (4-Pin) | 4 |
