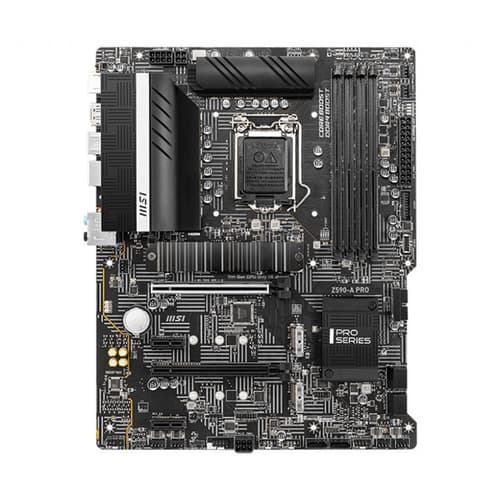

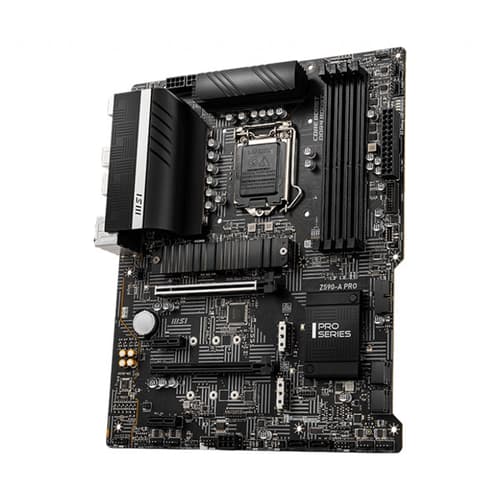

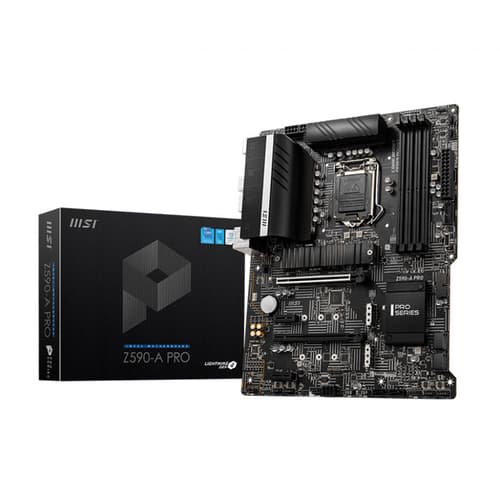

MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard
MSI Z590-A PRO Motherboard

MSI Z590-A PRO Motherboard

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: Z590-A-PRO
  • Availability: Out Of Stock

MSI Z590-A PRO Motherboard

Offer Price

₹14,340

(22% off ) ₹18,350
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Z590-A PRO

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

Specifications

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200
Chipset Intel® Z590 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
    • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5333 MHz
      • 1DPC 2R Max speed up to 4700+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 2x PCIe x16 slots
    • Support x16/ x4
    • PCI_E1 (from CPU)
      • Supports up to PCIe 4.0 for 11th Gen Intel® CPU
      • Supports up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 (from Z590 chipset)
      • Supports up to PCIe 3.0
  • 2x PCIe 3.0 x1 slots (from Z590 chipset)
Onboard Graphics
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 12
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
Storage
  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 3x M.2 slots (Key M)
    • M2_1 slot (from CPU) 1
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21, M2_32 slots (from Z590 chipset)
      • Support up to PCIe 3.0x4
      • Support up to SATA 6Gb/s
      • Support 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
  • Support Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

Intel® Z590 Chipset

  • Intel® Z590 Chipset
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
    • 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
  • USB 2.0 Hubs GL850G
    • 4x USB 2.0 Type-A ports on the back panel
    • 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Audio

Realtek®ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN 1x Intel® I225-V 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 1x 6-pin ATX PCIe power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)

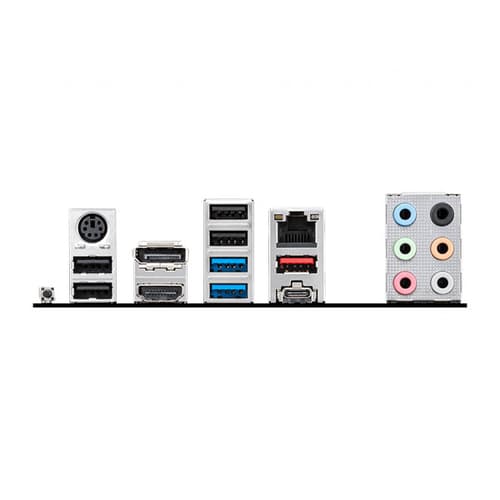

Back panel ports
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 2.0
  4. LAN port
  5. Audio connector
  6. Flash BIOS Button
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. USB 3.2 Gen 2x2 20Gbps Type-C
  11. USB 3.2 Gen 2 10Gbps Type-A
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset Z590
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. Can i use smart access momory 16/12/2022

A. This is an Intel motherboard, SAM is meant for AMD products only.

Vidhya (Verified Buyer )

Q. Does 750 w Gigabyte Power supply is compatible? Does we dont use the first m.2 slot if I have 10th gen CPU 11/03/2021

A. PSU is compatible, unable to anticipate the other query.

Rahul Kumar (Verified Buyer )

Q. If I insert a 3600mhz single ram does it work or we require double sticks ?Does it futureproof
 08/03/2021

A. Yes, it will work on both in single and dual channels.

SATYAM KUMAR JHA (Verified Buyer )
