FEATURES
Inspired from architectural design, with Lightning Gen 4 PCIe and M.2 solution, Frozr Heasink, Core Boost, DDR4 Boost, Audio Boost 4, USB 3.2 Gen2 connector
- Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
- Supports 4 DIMMs, Dual Channel Memory DDR4
- Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
- Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Core Boost, 8+4 pin CPU power connectors, DDR4 Boost
- Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
- AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds
SPECIFICATIONS
| PROCESSOR |
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
| CHIPSET |
AMD® X570 Chipset |
| MEMORY |
- 4 DDR4 memory slots, support up to 128GB (depending on the processor)
- 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- ports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer to Compatibility for more information on compatible memory
|
| SLOTS |
- 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
- 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
- 3 x PCIe 3.0 x1 slots
- PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
- The speeds may vary for different devices
|
| ONBOARD GRAPHICS |
- 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
- Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Maximum shared memory of 2048 MB
|
| MULTI-GPU |
Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
- 6 x SATA 6Gb/s ports
- 2 x M.2 slot (Key M)
- M2_1 slot (from AMD® Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD® X570 Chipset)
- Supports PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
|
| RAID |
Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD® X570 Chipset
- 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
- 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
|
| AUDIO |
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
|
| LAN |
1 x Realtek® 8111H Gigabit LAN Controller |
| INTERNAL CONNECTORS |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper
- 1 x Chassis Intrusion connector
- 2 x 4-pin RGB LED connectors
- 2 x 3-pin RAINBOW LED connectors
- 4 x EZ Debug LEDs
|

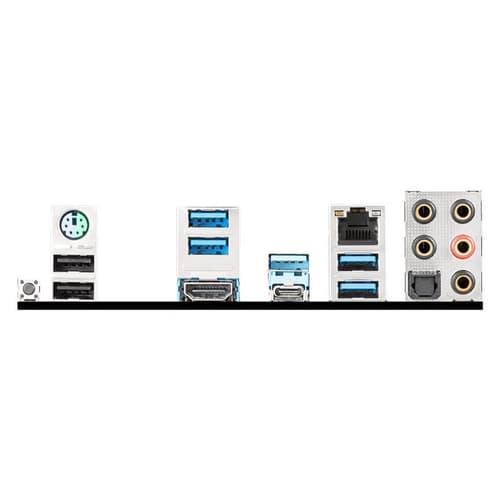

| BACK PANEL PORTS |
- Keyboard / Mouse
- USB 3.2 Gen1 Type-A
- LAN Port
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0 Ports
- HDMI Port
- USB 3.2 Gen2 Ports (Type-A + C)
- USB 3.2 Gen1 Type-A Ports
- Optical S/PDIF out
|
| DIMENSIONS |
- 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
- ATX Form Factor
|
| MOUNTING |
9 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit |
| Warranty |
3 Years |
| Note |
***Features, Price and Specifications are subject to change without notice. |
|
Motherboard
|
| Platform |
AMD |
| Socket |
AM4 |
| Chipset |
X570 |
| Max Memory Support |
128 GB |
| Supported Memory Type |
DDR4 |
| Form Factor |
ATX |
