Features
Inspired from architectural design with the extended heatsink for having better thermal solution; high speed USB 3.2 Gen2 x2 solution, Core Boost, DDR4 Boost, Dual LAN with 1x 2.5G LAN, Twin Turbo M.2 with M.2 Shield Frozr
- Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4200+(OC)
- Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
- Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Set Core Power Free: Core Boost, 2x8 pin CPU power connector, Core Boost, DDR4 Boost
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Dual LAN: Premium network solution included 1x 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Audio Boost 4: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™
Specifications
| Processor |
Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066 |
| Chipset |
Intel® X299 Chipset |
| Memory |
- 8 x DDR4 memory slots, support up to 256GB
- Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
- Quad channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Supports non-ECC UDIMM memory
- Supports un-buffered memory
|
| Slots |
- 4x PCIe 3.0 x16 slots
- Support x16/x8/x16/x8 mode with the 48-lane CPU.
- Support x16/x4/x16/x8 mode with the 44-lane CPU.
- Support x16/x4/x8/x0 mode with the 28-lane CPU.
- Please refer to user manual for PCIe 3.0 bandwidth table.
|
| Multi-GPU |
- Supports 3-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
|
| Storage |
Intel® X299 Chipset
- 6 x SATA 6Gb/s ports
- 2 x M.2 slot (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- Intel® Optane™ Memory Ready
- The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot.
- The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.
- The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.
- M2_2 supports Intel® Optane™ Memory by switching to PCH lanes.
|
| RAID |
Intel® X299 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
|
| USB |
ASMedia® ASM3242 Chipset
- 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
ASMedia® ASM3142 Chipset
- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector
Intel® X299 Chipset
- 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
- 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
|
| Audio |
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| LAN |
- 1 x Intel I219-V Gigabit LAN controller
- 1 x Realtek RTL8125-CG 2.5G LAN controller
- I219 LAN doesn’t support G3 to S5 Wake
|
| Internal connectors |
- 1 x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
- 1x USB 3.2 Gen2 Type-C port
- 1x 4-pin CPU fan connector
- 1x 4-pin Water Pump connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x TPM module connector
- 1x Chassis Intrusion connector
- 1x Virtual RAID on CPU connector
- 1x Thunderbolt Add-on Card Connector
|

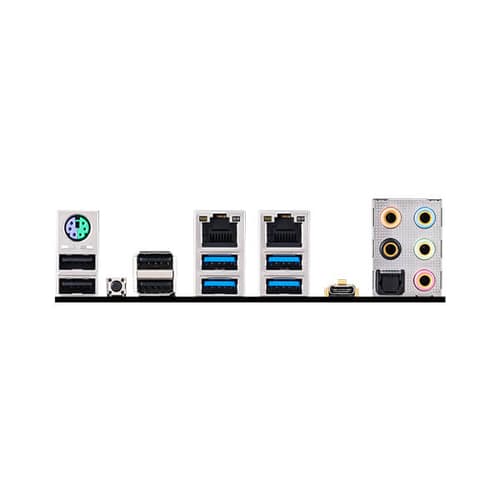

| Back panel ports |
- Keyboard / Mouse
- Gigabit LAN
- 2.5G LAN
- Audio Connectors
- USB 2.0
- Clear CMOS Button
- USB 2.0
- USB 3.2 Gen1 Type-A
- USB 3.2 Gen1 Type-A
- USB 3.2 Gen2x2 20G Type-C
- Optical S/PDIF out
|
| Dimensions |
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
|
| Mounting |
9 mounting holes |
| Operating System |
Support for Windows® 10 64-bit |
| Warrantty |
3 Years |
| Note |
***Features, Price and Specifications are subject to change without notice. |
|
Motherboard
|
| Platform |
INTEL |
| Socket |
LGA2066 |
| Chipset |
X299 |
| Max Memory Support |
256 GB |
| Supported Memory Type |
DDR4 |
| Form Factor |
ATX |
