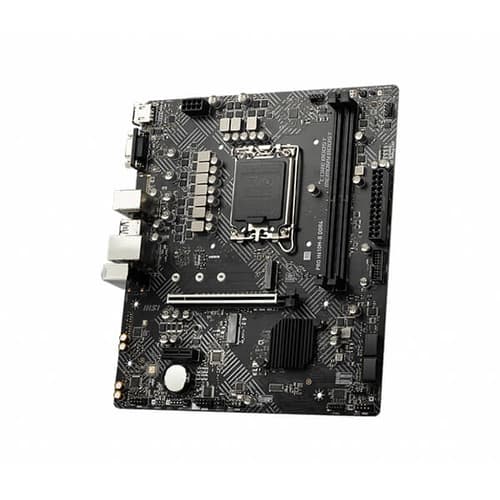

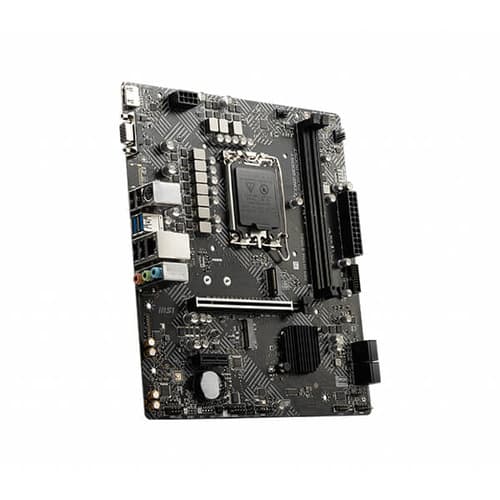

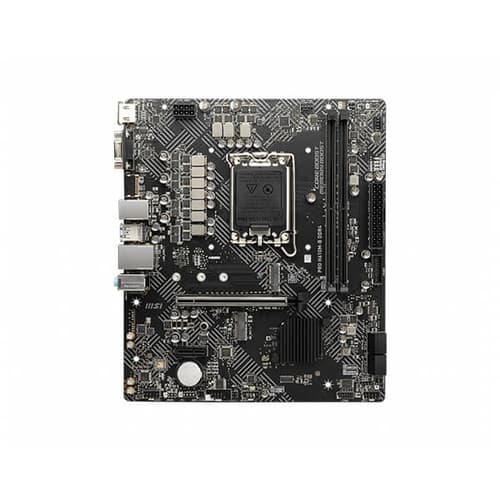

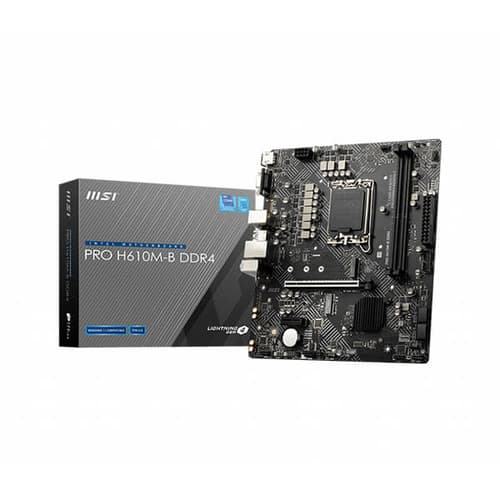

MSI Pro H610M-B DDR4 Motherboard

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: PRO-H610M-B-DDR4
  • Availability: Out Of Stock

MSI Pro H610M-B DDR4 Motherboard

Offer Price

₹6,950

(39% off ) ₹11,400
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications:

Processor
  • Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  • Processor socket LGA1700
Chipset
  • Intel® H610 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot Supports PCIe 3.0
  • x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • Available only on processors featuring integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.
SATA Ports
  • 4x SATA 6Gb/s ports

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD Slot
  • 1x M.2 slot (Key M, from chipset)
  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

Audio
  • Realtek® ALC892/ ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN
  • 1x Intel® I219V 1Gbps LAN controller
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
USB

Intel® H610 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Fan Connectors
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
Jumpers
  • 1x Clear CMOS jumper
LED Features
  • 4x EZ Debug LED
Back panel ports
  • HDMI
  • VGA
  • Keyboard/Mouse
  • USB 3.2 Gen 1 5Gbps Type-A
  • LAN port
  • Audio connector
  • USB 2.0
Dimensions
  • M-ATX Form Factor
  • 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.



Motherboard
Platform INTEL
Socket LGA1700
Chipset H610
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 Years
Note

*** Features, Price, Specifications are subject to change without notice.

Questions and Answers


Q. Will this motherboard support this combination i5 12400f with zotac rtx 3060 12gb twin edge and 16gb Ram or it will bottleneck?

A. Will work but better chipsets are suggested.

S Roy (Verified Buyer )

Q. Will this motherboard support this combination i5 12400f with rtx 3060 8gb and 16gb Ram or it will bottleneck?

A. Yes it will support.

Sanjib (Verified Buyer )

Q. Will this motherboard support this combination i3 12100f with rtx 3060 8gb and 16gb Ram or it will bottleneck?

A. it will support but better series CPU is advised to get full output of the GPU.

Sanjib (Verified Buyer )

Q. Will this motherboard support i5 12400f with rtx 2060 6gb with 16gb Ram without any bottleneck?

A. Yes, it will work

Skr (Verified Buyer )

Q. will it support samsung 500 gb nvme ssd?

A. Yes.

SANJIB (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 1
  • 0
  • 0
  • 0
  • 0
    5.0
    1 rating &
    1 review


5

Very good for a budget build with F series processors. No need to worry about the video ports since you are going to use a graphics card anyway.

Muana (Verified Buyer )
