Supports 10th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1200

• 2x DDR4 memory slots, support up to 64GB1
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• 1x PCIe 3.0 x16 slot (From CPU)
• 1x PCIe 3.0 x1 slot (From PCH)

• 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
• 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz 1 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

• 4x SATA 6Gb/s ports (From H510 Chipset)
• 1x M.2 slot (Key M, from H510 chipset)
• Supports up to PCIe 3.0 x4
• Supports SATA 6Gb/s1
• Supports 2242/ 2260/ 2280 storage devices

SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

Intel® H510 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

Realtek® ALC897/ ALC892 Codec

• 7.1-Channel High Definition Audio

• 1x Realtek® RTL8111 Gigabit LAN controller

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 2.0 connector (support additional 2 USB ports)
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper

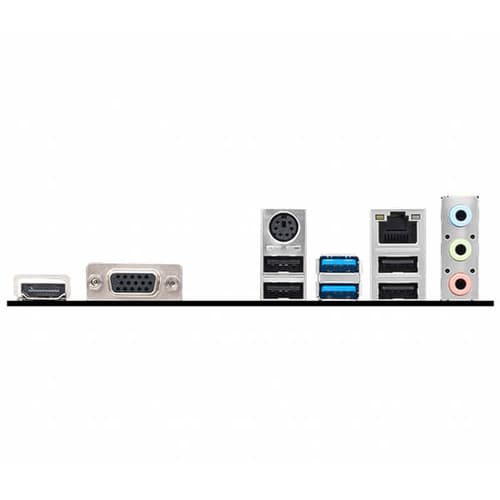

• HDMI
• VGA
• Mouse / Keyboard
• USB 3.2 Gen 1 5Gbps Type-A
• LAN port
• Audio connector
• USB 2.0
• USB 2.0

• M-ATX Form Factor
• 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm)
