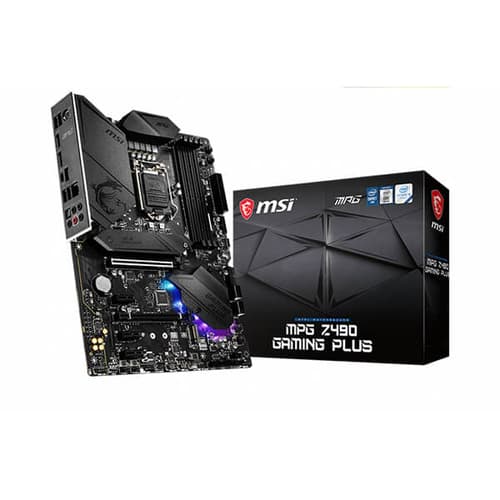

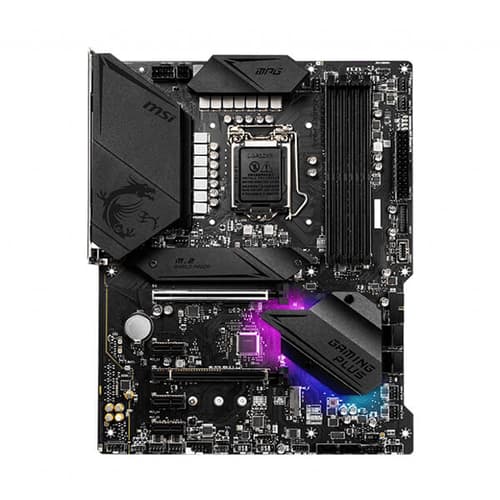

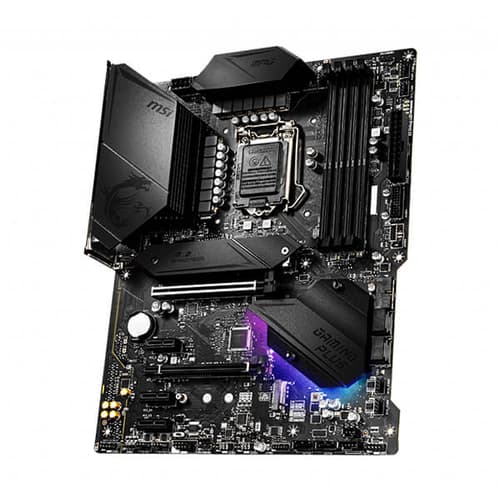

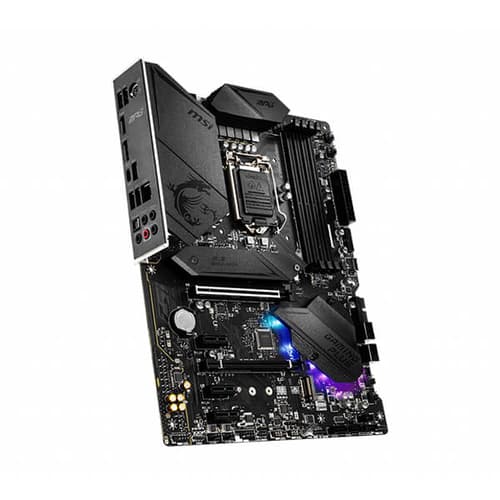

MSI MPG Z490 Gaming Plus

Name: MSI MPG Z490 Gaming Plus
Brand: MSI
SKU: MSI
Price: 16300.00 INR
Availability: OutOfStock
Rating: 5 (2 reviews)

/ Write a review

7.5% Instant Discount on HDFC Credit & Debit Card EMI

HDFC bank Offer

Brand: MSI
Product Code: MPG-Z490-GAMING-PLUS
Availability: Out Of Stock

MSI MPG Z490 Gaming Plus

Offer Price

₹16,300

₹17,200

Free Delivery

Check

Delivery is guaranteed as long as our locations stay open according to government regulations.

Description
Specification

Features

Supports 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 4800(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen 2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality

Specifications

Processor	Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA1200 socket ¹ ² Please go to intel.com for compatibility information. Onboard graphics output are disabled when using the SKU processors.
Chipset	Intel^® Z490 Chipset
Memory	4 x DDR4 memory slots, support up to 128GB ¹ Supports 1R 2133/2666/2933 MHz ¹ 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory.
Expansion Slot	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH)
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Multi-GPU	Supports 2-Way AMD^® CrossFire^™ Technology
Storage	Intel^® Z490 Chipset 6x SATA 6Gb/s ports ¹ 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1 M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices ² Intel^® Optane^™ Memory Ready ³ Supports Intel^® Smart Response Technology for Intel Core^™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Intel^® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB	Intel^® Z490 Chipset 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio	Realtek^® ALC1200-VD1 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek^® RTL8125B-CG 2.5G LAN Controller
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector ¹ Thunderbolt card need support RTD3

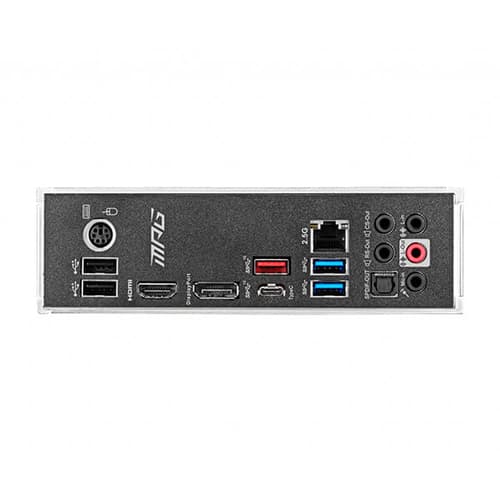

Back panel ports	PS/2 Combo Port USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 Ports HDMI Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting	9 mounting holes
Operating System	Support for Windows^® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.

Motherboard
Platform	INTEL
Socket	LGA1200
Chipset	Z490
Max Memory Support	128 GB
Supported Memory Type	DDR4
Form Factor	ATX
Warranty	3 Years

Questions and Answers

Q. Is it capable of overclock i9 10900k ? 15/01/2021

A. Yes.

L NABACHANDRA SINGHA (Verified Buyer )

Q. When will it come in stock again ? 21/12/2020

A. No, updates from the brand.

Ayan (Verified Buyer )

Q. It support it Intel i5 9600K 07/10/2020

A. The board only support 10th GEN.

Ritul Lathiys (Verified Buyer )

Q. It's support 9th gen cpu 07/10/2020

A. It only supports 10th GEN processors.

Ritul Lathiys (Verified Buyer )

Q. How much speed shall I get with Corsair Vengeance Lpx 8GB (8GBx1) DDR4 3200MHz and i5 10500? 20/08/2020

A. You will get the required speed.

Anindo Mazumdar (Verified Buyer )

Ask a question

Your Name

Your Question

Note: HTML is not translated!

Ratings & Reviews

5.0

5 11th May 2021

MSI MPG Z490 Gaming Plus is a powerful beast value for money and worth the price. The dragon center is an amazing software to unleash the potential of the beast. The VRM is good enough to overclock the processors to almost extreme levels, and the aesthetics is damn good.

Sarwin Kumar (Verified Buyer )

5 24th December 2020

This motherboard is really good. It does the job well, it was easy to install, had a smooth experience overall. The drivers are also very easy to install and MSI has amazing additional features (like Dragon Center) for RGB stuff. 100% recommend. The finish is amazing on it, has sufficient number of slots and everything one could need.

Anubhav Walia (Verified Buyer )

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating
