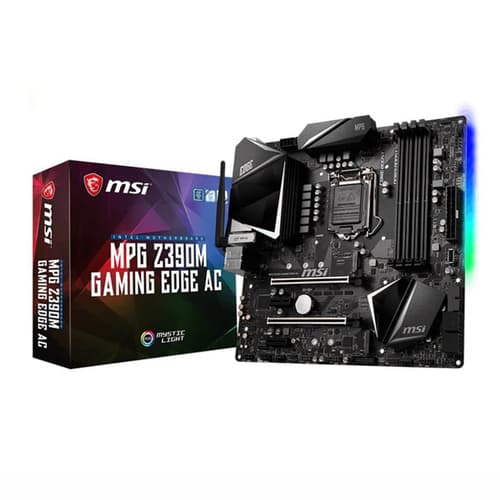

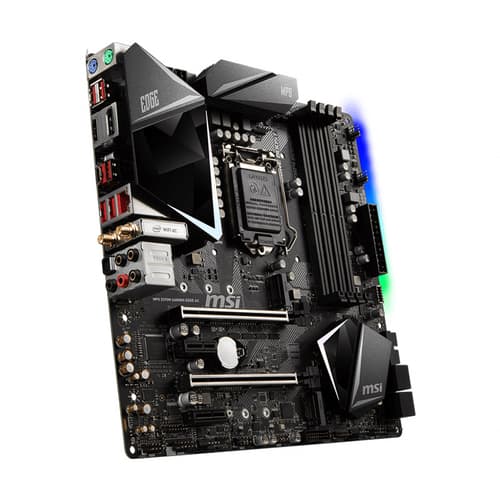

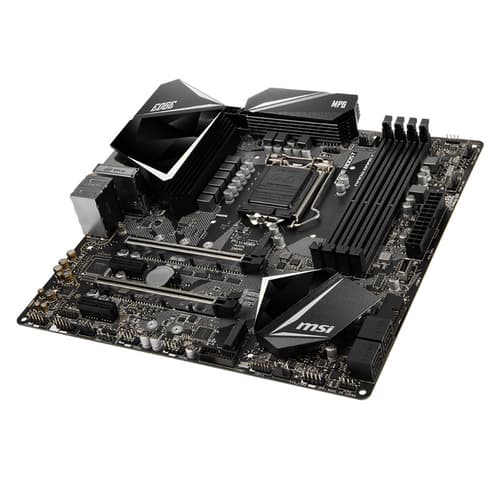

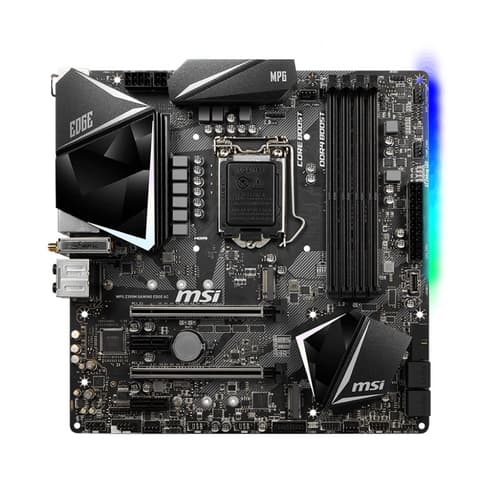

Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC
Msi MPG Z390M GAMING EDGE AC

Msi MPG Z390M GAMING EDGE AC

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: MPG-Z390M-GAMING-EDGE-AC
  • Availability: Out Of Stock

Msi MPG Z390M GAMING EDGE AC

₹18,100

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light



  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4500(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
  • Set Core Power Free: Extended Heatsink Design, Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.

Specifications

PROCESSOR Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET Intel® Z390 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
SLOTS
  • 2 x PCIe 3.0 x16 slots
    • Support x16/ x0, x8/ x8 modes
  • 2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz
  • 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz

*No Display support when using the Processor model with suffix “F”
MULTI-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 2-Way AMD® CrossFire™ Technology
STORAGE

Intel® Z390 Chipset

  • 4 x SATA 6Gb/s ports
  • 2 x M.2 slot (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready1
  1. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

Intel® Z390 Chipset

  • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A and 1 Type-C ports on the back panel, 1 Type-C internal connector)
  • 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
  • 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 3.1 connectors)
AUDIO

Realtek® ALC1220P-VB2 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel® I219-V Gigabit LAN controller
WIFI & BLUETOOTH

Intel® Wireless-AC 9560

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0,4.0, 5
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 slots
  • 1 x USB 3.1 Gen2 Type-C port
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 3 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial Port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x TPM module connector
  • 2 x 4-pin RGB LED connectors
  • 2 x 3-pin RAINBOW LED connectors
BACK PANEL PORTS
  1. Mouse
  2. DisplayPort
  3. LAN
  4. HD Audio Connectors
  5. Keyboard
  6. USB 3.1 Gen1
  7. HDMI
  8. USB 3.1 Gen2 Type-A + C
  9. USB 3.1 Gen1
  10. Wireless / Bluetooth
  11. Optical S/PDIF out
DIMENSIONS
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • Micro-ATX Form Factor
MOUNTING 8 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor M-ATX
Warranty 3 Years

Questions and Answers

Q. Can I over lock i5 9900k and pair with GTX 1080 TI in this board 07/05/2019

A. We do not recommend OC.

Aneeket Alfred Beck (Verified Buyer )

Q. Can we owerclock i5 9900k 07/05/2019

A. We do not recommend OC.

Aneeket Alfred Beck (Verified Buyer )

Q. Is the Asus rog strix 2060 6gb compatible with this board ? 10/03/2019

A. Yes Sir.

Tanmay Sinha (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 1
  • 0
  • 0
  • 0
  • 0
    5.0
    1 rating &
    1 review

5 10th December 2019

It was easy to install, fits perfectly in my NZXT H510 ATX Case and its BIOS allowed me to easily overclock the Intel Core i7-9700K. It has lots of extras you would only find in bigger boards. The BIOS is very easy to navigate and makes it easy to make changes, I'm no expert, this was my first build but I'm so far satisfied with it.
