MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard
MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard

MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard

/ Write a review

  • Brand: MSI
  • Product Code: MPG-Z390I-GAMING-EDGE-AC
  • Availability: Out Of Stock

MSI Mpg Z390i Gaming Edge AC WiFi M-ITX Motherboard

₹16,699

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Core Boost, DDR4 BoostTwin Turbo M.2, Turbo USB 3.1 Gen2 connector.

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
  • Set Core Power Free: Core Boost, 8 pin CPU power connector, Game Boost, DDR4 Boost
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.

Specifications:

PROCESSOR Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET Intel® Z390 Chipset
MEMORY
  • 2 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4800(OC)/ 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
SLOTS
  • 1 x PCIe 3.0 x16 slots
ONBOARD GRAPHICS
  • 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz
  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz

*No Display support when using the Processor model with suffix “F”
WIFI & BLUETOOTH

Intel® Wireless-AC 9462 card

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, 5
STORAGE

Intel® Z390 Chipset

  • 4 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2260/ 2280 storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready2
  1. The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

Intel® Z390 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 connector)
  • 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Realtek® 8111H Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 slots
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x 4-pin RGB LED connector
  • 1 x Clear CMOS jumper
  • 1 x TPM module connector

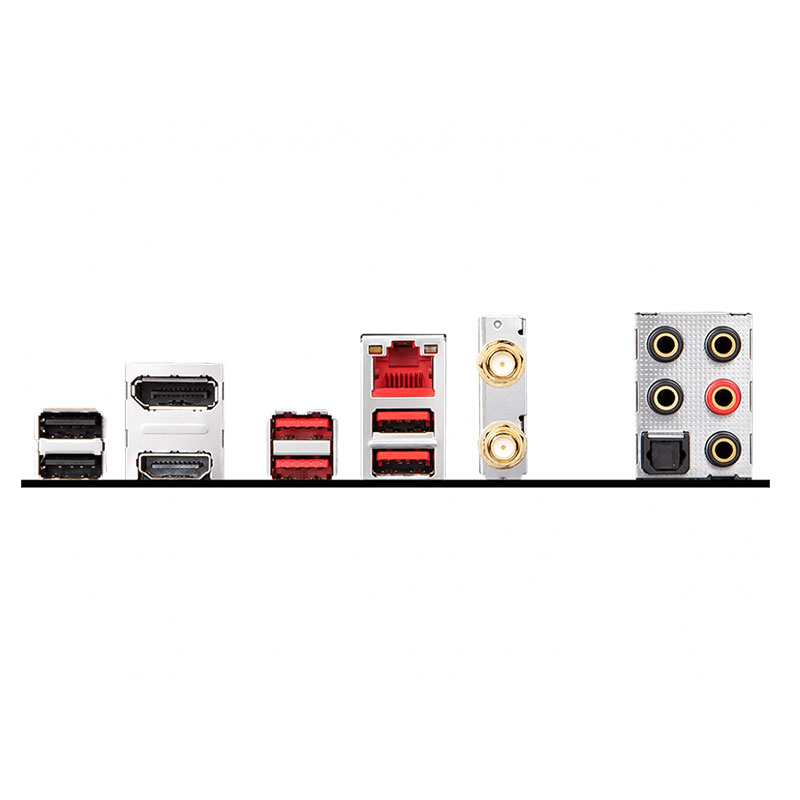

BACK PANEL PORTS
  1. DisplayPort
  2. LAN
  3. HD Audio Connectors
  4. USB 2.0
  5. HDMI
  6. USB 3.1 Gen1
  7. USB 3.1 Gen2
  8. Wireless / Bluetooth
  9. Optical S/PDIF out
DIMENSIONS
  • 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
  • Mini-ITX Form Factor
MOUNTING 4 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor M-ITX
Warranty 3 Years
