Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)
Msi MEG Z390 ACE (Wi-Fi)

Msi MEG Z390 ACE (Wi-Fi)

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: MEG-Z390-ACE
  • Availability: Out Of Stock

Msi MEG Z390 ACE (Wi-Fi)

Offer Price

₹27,700

(2% off ) ₹28,350
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Unique and infinity design combining 13 phases VRM optimized of Intel Core i9 and the rich specification. Features Mystic Light Infinity, Triple Turbo M.2 with Shield Frozr, Audio Boost HD, Game Boost and Dual Front USB 3.1 Gen2 Type-C connectors



  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4500(OC) MHz
  • Mystic Light Infinity: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Lightning Fast Game Experience: 3x Turbo M.2 with Shield Frozr, Dual Front USB 3.1 Gen2 Type-C
  • Audio Boost HD: Isolated audio with a high-quality audio processor with ESS DAC & Nahimic for the most immersive gaming experience
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Game Boost: One second automated overclocking by controlling up-to-11 gears, your PC gets another adrenalin shot

Specifications

PROCESSOR Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET Intel® Z390 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
SLOTS
  • 3 x PCIe 3.0 x16 slots
    • Support x16/ x0/ x0, x8/ x8/ x0, x8/ x4/ x4 modes
  • 3 x PCIe 3.0 x1 slots
MULTI-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
WIFI & BLUETOOTH
  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, 5
STORAGE

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports
  • 3 x M.2 slot (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
  1. M.2 slots and SATA ports share the bandwidth.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices
USB

Intel® Z390 Chipset

  • 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (4 Type-A ports on the back panel, 2 Type-C internal connectors)
  • 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

ASMedia® ASM1042 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors

ASMedia® ASM3142 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A, 1x Type-C) on the back panel
AUDIO

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Killer™ E2500 Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 6 x SATA 6Gb/s connectors
  • 3 x M.2 slots
  • 2 x USB 3.1 Gen2 Type-C ports
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 5 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 2 x 4-pin RGB LED connectors
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 3-pin CORSAIR LED connector

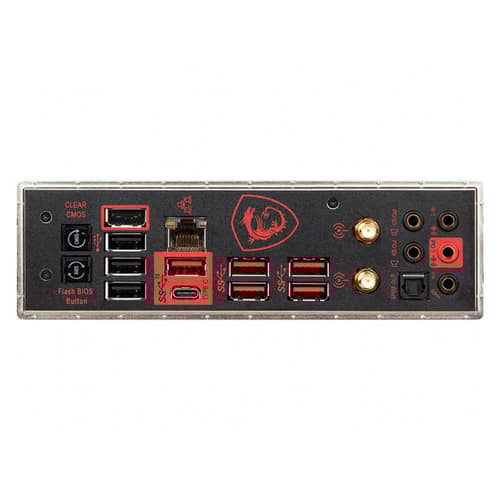

BACK PANEL PORTS
  1. Clear CMOS Button
  2. USB 2.0 Ports
  3. Killer™ E2500 Gigabit LAN
  4. Wi-Fi /Bluetooth Antenna Connectors
  5. HD Audio Connectors
  6. Flash BIOS Button
  7. USB 3.1 Gen2 Ports Type A+C
  8. USB 3.1 Gen2 Ports
  9. USB 3.1 Gen2 Ports
  10. Optical S/PDIF-Out
DIMENSIONS
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. does it support rtx 3080 graphic card and i9 9900k? 27/10/2020

A. Yes Sir, it will support.

Ritik Kohad (Verified Buyer )

Q. does it have built in bluetooth and wifi? 16/01/2020

A. Yes.

ANAS Ahmed (Verified Buyer )

Q. can Msi MEG Z390 ACE mother board can support 2 msi 2070 super trio x ?? because of the bulky size of msi 2070 super graphics card??? 01/01/2020

A. Surely. You may use dual GPUs. You may use GPU holder for extra support.

Debayan das gupta (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 0
  • 1
  • 0
  • 0
  • 0
    4.0
    1 rating &
    1 review

4 4th December 2019

I wanted to have a Z390 board and this is what I fall in love with. MSI is my favourite company I love their products. This Motherboard Is None less provide a Great Premium finishing looks as well as V.good performance. 3x M.2 drive for fastest storage. The 13 Phases VRM for Stabilized Overclocking. A dedicated overclock Switch makes it more easy to overclock. The Sound Boost is Great. 7PWM Fan, 1 for Water Cool. A QLED Screen for mostly Temperature.

Samrat Hazra (Verified Buyer )
