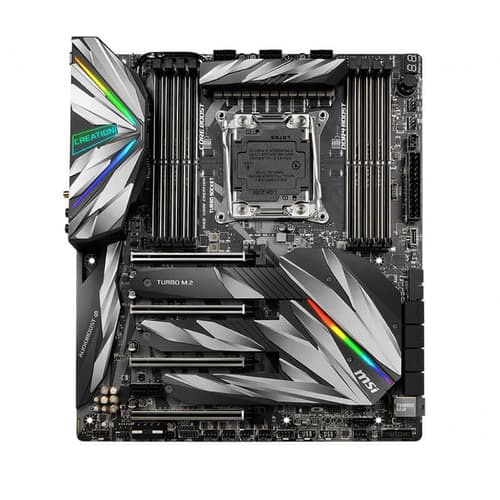

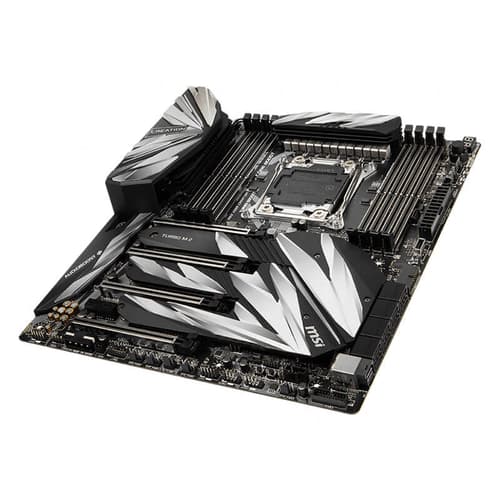

Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)
Msi MEG X299 Creation (Wi-Fi)

Msi MEG X299 Creation (Wi-Fi)

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: MEG-X299-CREATION
  • Availability: Out Of Stock

Msi MEG X299 Creation (Wi-Fi)

₹46,500

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Unique look and feel inspired by the concept of element explosion tailor-made for designers and content creators. Features Triple Turbo M.2 with Shield Frozr, Mystic Light, Core Boost, Audio Boost 4 with Nahimic and Lightning USB 3.1 Gen2.



  • Supports Intel® Core™ X-series Processors Family
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4200+(OC)
  • Maximum Power: 13+1 phases digital power with heat-pipe heatsink design
  • Maximum Data Transfer: 2.5G LAN + Intel® Gigabit LAN with Intel® WIFI and bandwidth management
  • Maximum Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO
  • Maximum Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor
  • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
  • Core Boost: With premium layout and full digital power design to support more cores and provide better performance
  • Triple 8 Pin Power Supply: By providing triple 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip
  • Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality
  • DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 4-Way NVIDIA SLI™ & 4-Way AMD Crossfire™
  • THUNDERBOLTM3: Exclusive expansion card offering dual DisplayPort and dual Thunderbolt 3 for the full 4K video experience.

Specifications

PROCESSOR Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket
CHIPSET Intel® X299 Chipset
MEMORY
  • 8 x DDR4 memory slots, support up to 128GB
  • Quad channel memory architecture with the CPU that supports up to 4-channels DDR4
    • X-series processor support DDR4 4200(OC)/ 4100(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture with the CPU that supports up to 2-channels DDR4
    • X-series processor support DDR4 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to Compatibility for more information on compatible memory
  2. Please refer the DIMM Slots section for more details.
SLOTS
  • 4 x PCIe 3.0 x16 slots
    • Support x16/x0/x16/x8, x8/x8/x16/x8 mode with the 44-lane CPU.
    • Support x16/x0/x8/x4, x8/x8/x8/x4 mode with the 28-lane CPU.
    • Support x8/x0/x4/x4 mode with the 16-lane CPU.
  • 1 x PCIe 3.0 x1 slot
MULTI-GPU
  • Supports NVIDIA® SLI™ Technology
  • Supports AMD CrossFire™ Technology
STORAGE

Intel® X299 Chipset

  • 8 x SATA 6Gb/s ports
  • 3 x M.2 slots (Key M)
    • M2_1 & M2_2 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready for M2_1, M2_2 slots
  • 1 x U.2 port
    • Supports PCIe 3.0 x4 NVMe storage
  1. The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot.
  2. The SATA2 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_2 slot.
  3. M2_3 slot and PCIe slots share the bandwidth.
  4. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® X299 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

Intel® X299 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 6 x USB 2.0 (High-speed USB) ports(2 ports on the back panel, 4 ports available through the internal USB connectors)

ASMedia® ASM3142 Chipset

  • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A port on the back panel, 1 Type-C internal connector)

ASMedia® ASM1074 Chipset

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel
AUDIO

Realtek® ALC1220 Codecs

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel I219-V Gigabit LAN controller
  • 1 x Realtek RTL8125-CG 2.5G LAN controller
WIRELESS

Intel® Wireless-AC 9260

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0,4.0, 5
  1. Only support windows 10 64-bit
INTERNAL CONNECTORS
  • 1 24-pin ATX main power connector
  • 3x 8-pin ATX 12V power connectors
  • 1x flat 4-pin ATX 12V power connector
  • 8x SATA 6Gb/s connectors
  • 1x U.2 port
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1x USB 3.1 Gen2 Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 4x 4-pin system fan connectors
  • 2x 4-pin extend system fan connectors
  • 1x 3-pin Water Flow connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x 2-pin Thermal Sensors connector
  • 1x Virtual RAID on CPU connector
  • 1x Thunderbolt Add-on Card Connector
  1. Provides additional power to PCIe x16 slots

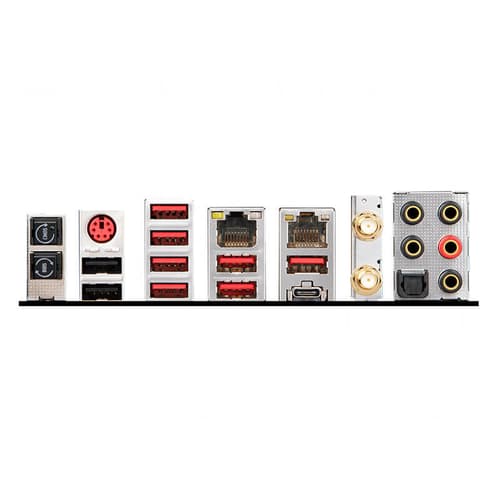

BACK PANEL PORTS
  1. Clear CMOS Button
  2. PS/2 Port
  3. USB 3.1 Gen1 Ports
  4. 2.5G LAN Port
  5. Intel® LAN Ports
  6. Intel® WiFi/ Bluetooth Module
  7. HD Audio Connectors
  8. Flash BIOS Button
  9. USB 2.0 Ports
  10. USB 3.1 Gen1 Ports
  11. Intel Turbo USB 3.1 Gen 2 Type A + C
  12. Optical S/PDIF-Out
DIMENSIONS
  • 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
  • E-ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA2066
Chipset X299
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor E-ATX
Warranty 3 Years
