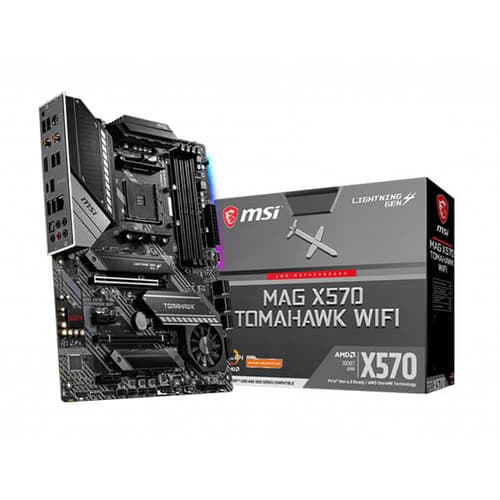

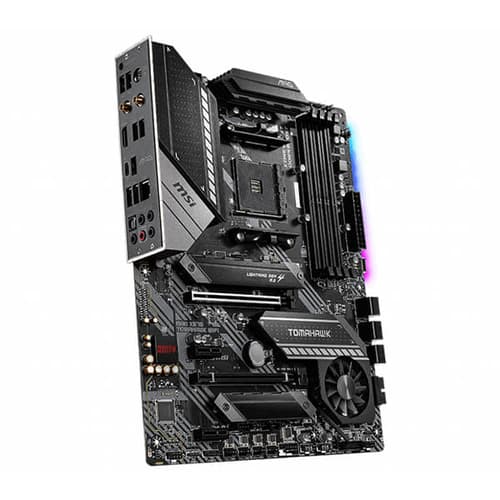

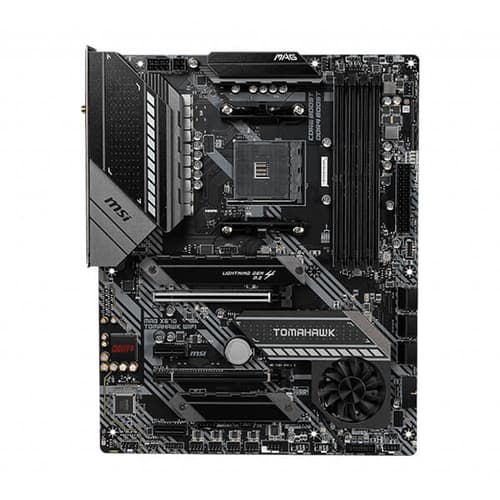

MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI
MSI MAG X570 Tomahawk WIFI

MSI MAG X570 Tomahawk WIFI

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: MAG-X570-TOMAHAWK-WIFI
  • Availability: Out Of Stock

MSI MAG X570 Tomahawk WIFI

Offer Price

₹22,699

(1% off ) ₹22,999
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Military style with Pre-installed IO shielding, tuned for better performance by Core Boost, DDR4 Boost, M.2 Shield Frozr, Wi-Fi 6, Frozr Heatsink Design, Lightning Gen4

  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4600 MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
  • Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 Boost
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, LIVE UPDATE, AMBIENT LINK  with user friendly user interface.

Specifications

Processor Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Chipset AMD® X570 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.
Expansion Slots
  • 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
  • 2x PCIe 3.0 x1 slots
  1. The speeds may vary for different devices
Onboard Graphics
  • 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz 1 2
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  2. Maximum shared memory of 2048 MB
Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
LAN 1x Realtek® 8125B 2.5Gbps LAN Controller
Wireless LAN & Bluetooth®

Intel® Wi-Fi 6 AX200

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5
  • The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
Storage
  • 6x SATA 6Gb/s ports (from AMD® X570 Chipset)
  • 2x M.2 slots (Key M) 1
    • M2_1 slot (from AMD® Processor)
      • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD® X570 Chipset)
      • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  1. The speeds may vary for different devices
RAID Supports RAID 0, RAID 1 and RAID 10
USB

AMD® X570 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

  • 2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 3.2 Gen 2 10Gbps Type-C Port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LEDs
  • 1x TBT connector 1
  • 1x RTD3 connector
  1. Thunderbolt card needs to support RTD3.

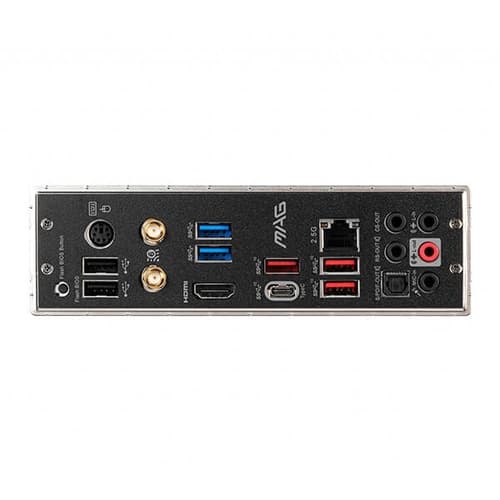

Back panel ports
  1. Keyboard / Mouse
  2. Wireless / Bluetooth
  3. USB 3.2 Gen 1 5Gbps Type A
  4. USB 3.2 Gen 2 10Gbps Type A
  5. 2.5G LAN port
  6. Audio Connectors
  7. USB 2.0
  8. HDMI port
  9. USB 3.2 Gen 2 10Gbps Type C
  10. USB 3.2 Gen 2 10Gbps Type A
  11. Optical S/PDIF out
I/O Controller NUVOTON NCT6797 Controller Chip
Hardware Monitor
  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Chipset fan speed detection
  • CPU/ System/ Chipset fan speed control
BIOS Features
  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.1, SM BIOS 2.8
  • Multi-language
Form Factor
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset X570
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. Does support Ryzen 9 5950X easily without any issues?
 11/06/2022

A. Yes. Though BIOS update is recommended.

Prem sagar mahato (Verified Buyer )

Q. Does this support 5GHz wifi 20/01/2022

A. No.

rudra (Verified Buyer )

Q. Can we use 2piece rtx 3070 on this motherboard without any issue? 16/10/2021

A. It can be used likewise, but the slots are 16x and 8x, so the GPU in the 2nd slot will have reduced performance.

Dipesh Kumar (Verified Buyer )

Q. Does it support NVME storage? 07/08/2021

A. Yes.

Anirban Mukherjee (Verified Buyer )

Q. I'm going to buy a
zotac 2060 super amp extreme 8gb
Or
Zotac 2070 super amo extreme 8gb
Which one of these is more better and compatible with this motherboard ? 27/07/2021

A. Both will be good, just buy as per your CPU and budget.

chirag ameta (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 2
  • 0
  • 0
  • 0
  • 0
    5.0
    2 ratings &
    2 reviews

5 13th August 2021

X570 is best motherboard for powerful Ryzen 5000 series processors specially high-end processors like 5900X. It has all the features a high-end system build require. Just go for it.

Vivek C (Verified Buyer )
5 5th December 2020

Amazing product and good for overclocking

Adweat Mishra (Verified Buyer )
