MSI MAG B660M Mortar WIFI Motherboard

Name: MSI MAG B660M Mortar WIFI Motherboard
Brand: MSI
SKU: MSI
Price: 20550.00 INR
Availability: OutOfStock

/ Write a review

7.5% Instant Discount on HDFC Credit & Debit Card EMI

HDFC bank Offer

Brand: MSI
Product Code: MAG-B660M-MORTAR-WIFI-DDR5
Availability: Out Of Stock

MSI MAG B660M Mortar WIFI Motherboard

Offer Price

₹20,550

₹28,200

Free Delivery

Check

Delivery is guaranteed as long as our locations stay open according to government regulations.

Description
Specification

Features:

Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6200+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Specification:

PROCESSOR	Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors Processor socket LGA1700
CHIPSET	Intel® B660 Chipset
MEMORY	4x DDR5 memory slots, support up to 128GB Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel^® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
EXPANSION SLOT	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
MULTI-GPU	Supports AMD® CrossFire™ Technology
ONBOARD GRAPHICS	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
STORAGE	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Intel^® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
AUDIO	Realtek^® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® 8125BG 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH®	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.2, FIPS, FISMA
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED FEATURE	4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors

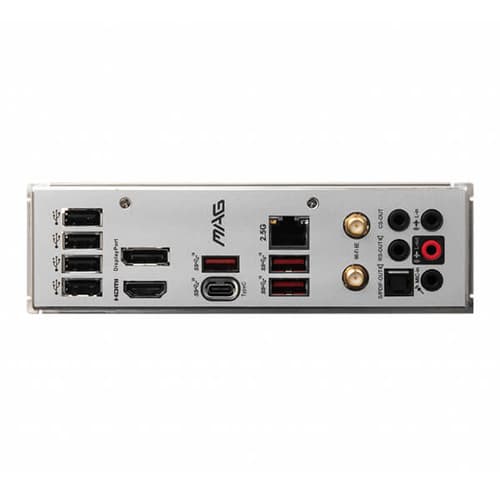

BACK PANEL PORTS	USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
DIMENSIONS	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Motherboard
Platform	INTEL
Socket	LGA1700
Chipset	B660
Max Memory Support	128 GB
SERIES	MAG SERIES
Supported Memory Type	DDR5
Form Factor	M-ATX
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Questions and Answers

Q. Is it compatible with intel i5 12400 out of the box without bios update ? 18/05/2022

A. Compatible out of the box.

Shudhanshu Kashyap (Verified Buyer )
