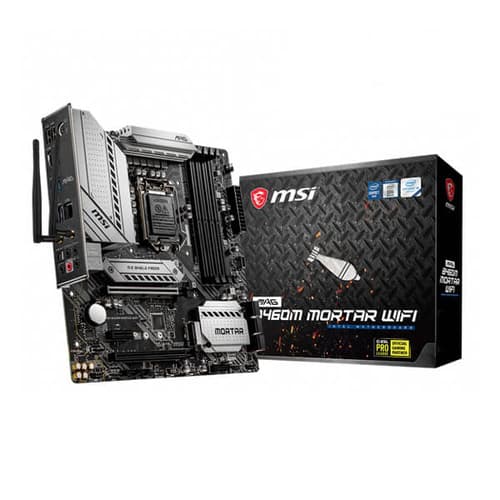

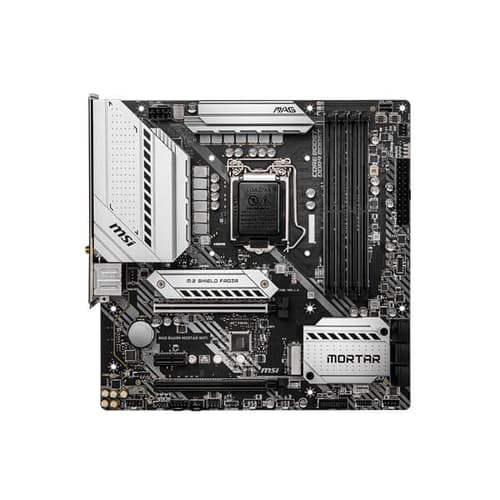

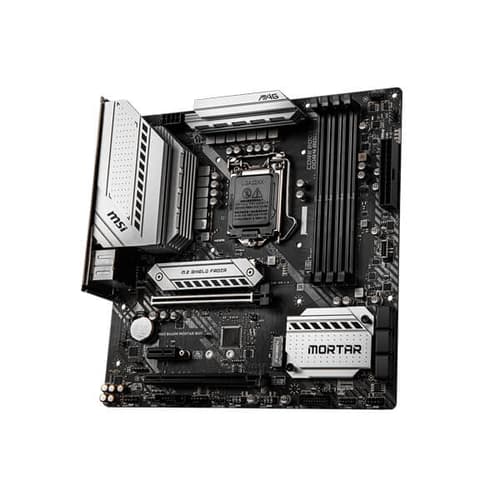

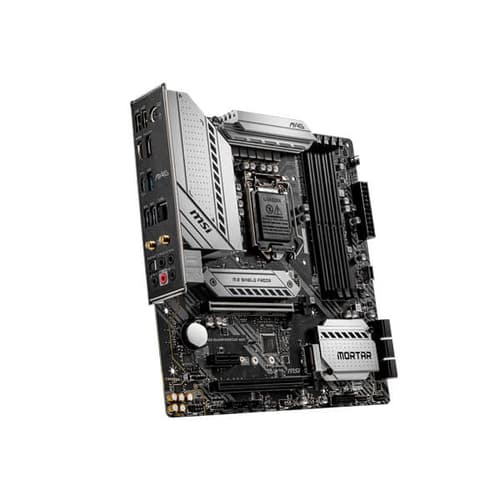

MSI MAG B460M MORTAR WIFI

Name: MSI MAG B460M MORTAR WIFI
Brand: MSI
SKU: MSI
Price: 12290.00 INR
Availability: OutOfStock
Rating: 5 (1 reviews)

/ Write a review

7.5% Instant Discount on HDFC Credit & Debit Card EMI

HDFC bank Offer

Brand: MSI
Product Code: MAG-B460M-MORTAR-WIFI
Availability: Out Of Stock

MSI MAG B460M MORTAR WIFI

Offer Price

₹12,290

₹12,800

Free Delivery

Check

Delivery is guaranteed as long as our locations stay open according to government regulations.

Description
Specification

Features

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933 MHz(Max)
Enhanced Power Design: 12+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality

Specifications

CPU	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset	Intel® B460 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Intel® Core™ i7/i9 Support DDR4-2933 Memory (Max.) Intel® Core™ i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH)
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Storage	Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors
RAID	Intel® B460 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Intel® B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector) 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5G LAN Controller
WiFi & Bluetooth	Intel® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector 1x RTD3 connector

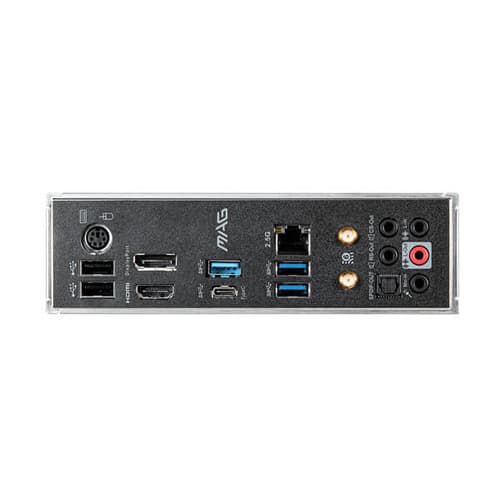

Back panel ports	PS/2 Combo Port DisplayPort USB 3.2 Gen 1 5Gbps(Type-A) 2.5G LAN Port WiFi Antenna connectors HD Audio Connectors USB 2.0 Ports HDMI Port USB 3.2 Gen 1 5Gbps(Type-C) USB 3.2 Gen 1 5Gbps(Type-A) Optical S/PDIF OUT
I/O Controller	NUVOTON NCT6687 Controller Chip
Hardware Monitor	CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features	1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.

Motherboard
Platform	INTEL
Socket	LGA1200
Chipset	B460
Max Memory Support	128 GB
Supported Memory Type	DDR4
Form Factor	Micro-ATX
Warranty	3 Years

Questions and Answers

Q. I am confused about the ram information upto how much speed ram will support it with Intel i5 10600k processor 08/07/2021

A. The boards limit is 2933mhz, the CPU's limit is 2666mhz.

Saikat Roy (Verified Buyer )

Q. Could you confirm if you guys would get it restocked ? Or else I might switch to AMD ? 08/05/2021

A. Currently no update from the brand regarding the restocking.

Jairaj R (Verified Buyer )

Q. WILL IT WOKE WELL WITH I7 10700K OUT OF THE BOX
WILL IT NEED A BIOS UPDATE
22/04/2021

A. Will support the CPU out of the box.

Aditya Dungdung (Verified Buyer )

Q. If I use unlocked cpu and run ram on 3000 mhz or 3200 mhz on this motherboard is it compitable?? 16/01/2021

A. No, RAM will run with the max capacity of the board.

Nisarg Dhanmeher (Verified Buyer )

Q. Is it compitable with intel 10th gen unlocked CPU?? 15/01/2021

A. Yes.

Nisarg Dhanmeher (Verified Buyer )

Ask a question

Your Name

Your Question

Note: HTML is not translated!

Ratings & Reviews

5.0

5 30th March 2021

Great motherboard, value for money, and wifi 6 and Bluetooth added bonus at this price range. and it's a B460 mobo but it can run i9 without a sweat. I choose this mobo for further/future upgradability. It has 12 phase VRM for CPU and 2 for RAM, and that 12+2 phase with god like heatsink can handle i9 to its full potential. Although the mobo is very good but only thing that I can't use as per my cabinet that is right angle sata connector.

Great mobo #MSI INDIA (Verified Buyer )
