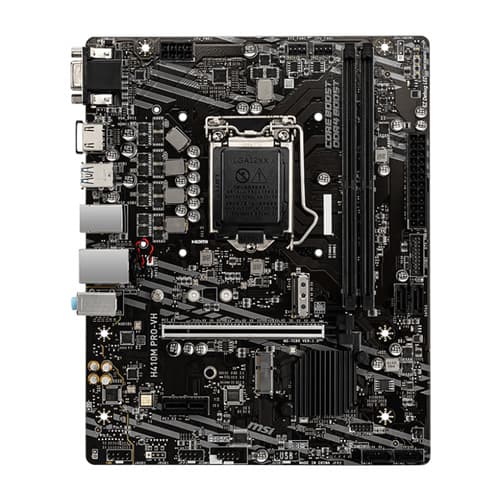

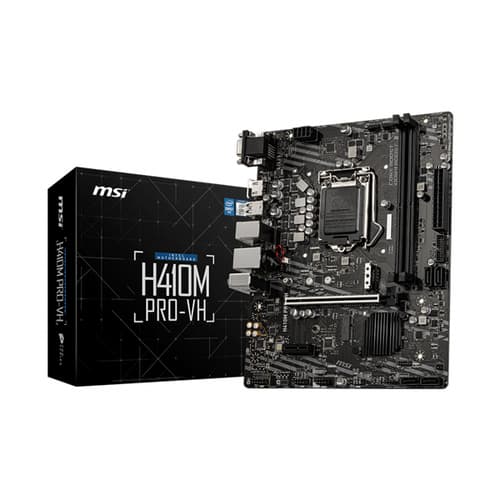

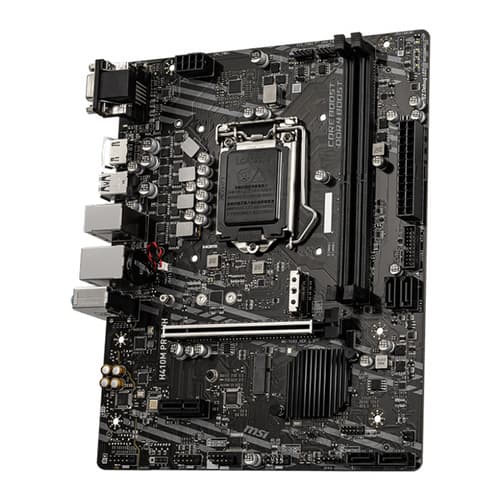

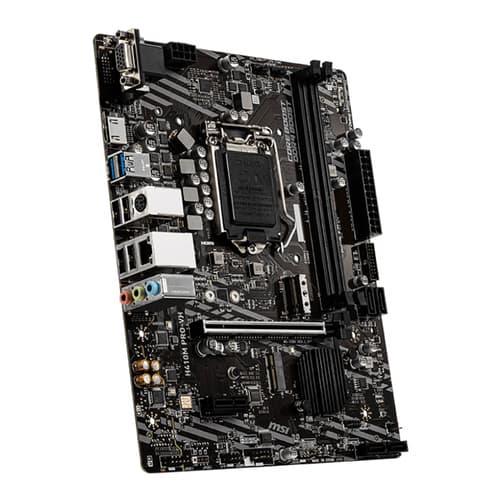

Msi H410M Pro-VH Motherboard

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: H410M-PRO-VH
  • Availability: Out Of Stock

Msi H410M Pro-VH Motherboard

Offer Price

₹5,125

(3% off ) ₹5,300
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

H410M PRO-VH

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

Processor Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket
Chipset Intel® H410 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB1
  • Intel® Core™ i7/ i9
    • Supports up to DDR4 2933 MHz
  • Intel® Core™ i5 and below
    • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (From CPU)
  • 1x PCIe 3.0 x1 slot (From PCH)
  • 1x M.2 slot with E key for WiFi module only
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Storage Intel® H410 Chipset
  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
USB Intel® H410 Chipset
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Audio Realtek® ALC892/ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Intel® I219V Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x Serial port connector
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED
Back panel ports
  1. VGA
  2. Keyboard / Mouse
  3. LAN
  4. HDMI
  5. USB 3.2 Gen 1 5Gbps Type-A
  6. USB 2.0
  7. USB 2.0
  8. Audio Connectors
Dimensions
  • Mirco-ATX Form Factor
  • 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Mounting 6 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset H410
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 Years

Questions and Answers


Q. Can I use i3 10105 processor and patriot viper steal 3200 mhz ram in this motherboard

A. Yes, but the RAM will run as per the CPU's and board's max speed limit.

Abhinav Gupta (Verified Buyer )

Q. This board is it support on i3 10100f processor, my work only data operating only,

A. Yes.

Arunagiri P (Verified Buyer )

Q. ADATA XPG GAMMIX S5 PCIe Gen3x4 M.2 2280 512GB SSD is this SSD compatible with this mobo

A. Yes it will.

Meecha gaming (Verified Buyer )

Q. Does it supports Intel i3 10105f open box or i need bios update

A. It will support out of the box.

Aniket (Verified Buyer )

Q. can i use ADATA SWORDFISH 250GB PCIe Gen3x4 M.2 Internal SSD (ASWORDFISH-250G-C) in this motherboard?

A. Yes.

Parth Patel (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 1
  • 0
  • 0
  • 0
  • 0
    5.0
    1 rating &
    1 review


5

I have installed Intel i5 10400F with this motherboard for my daily work...this is the perfect combination for 10th gen intel core i5 & i3 within low budget...easy to install PC components...main thing is that value for money.

Amartya Paul (Verified Buyer )

Write a review

Note: HTML is not translated!
Bad           Good
