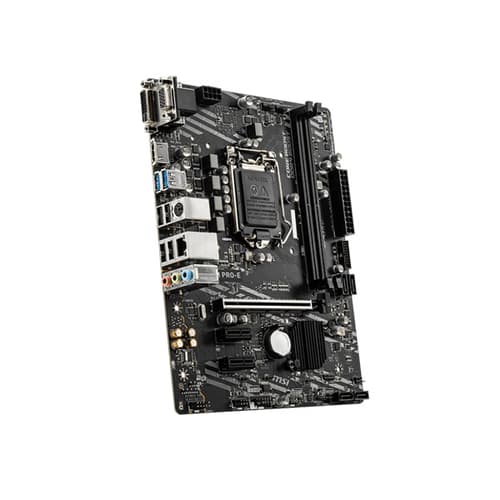

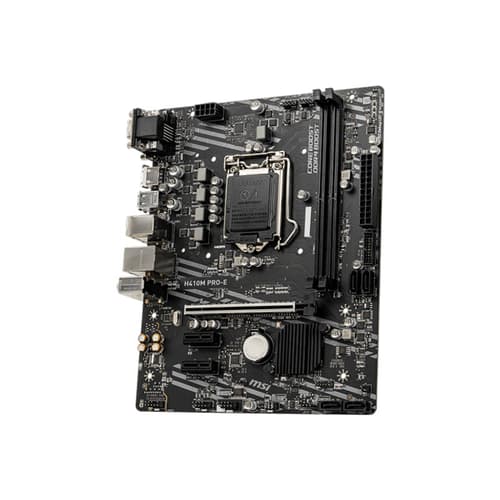

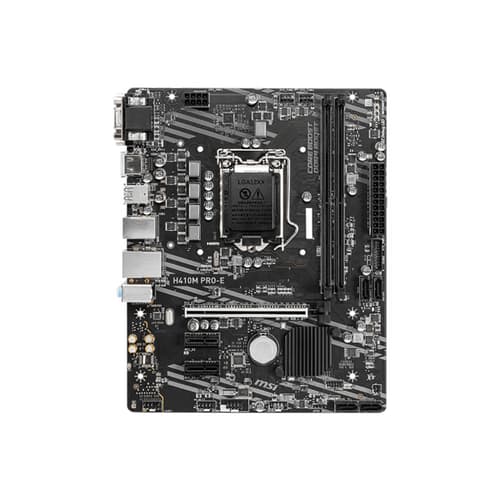

MSI H410M Pro-E Motherboard

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: H410M-PRO-E
  • Availability: Out Of Stock

MSI H410M Pro-E Motherboard

Offer Price

₹5,150

(3% off ) ₹5,300
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications



Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

  1. Please go to www.intel.com for more compatibility information.
  2. Onboard graphics output are disabled when using F SKU processors.
Chipset Intel® H410 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB1
  • Intel® Core™ i7/ i9
    • Supports up to DDR4 2933 MHz
  • Intel® Core™ i5 and below
    • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (From CPU)
  • 1x PCIe 3.0 x1 slot (From PCH)
Onboard Graphics
  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
  • 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
  • 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
Storage

Intel® H410 Chipset

  • 4x SATA 6Gb/s ports
USB
Intel® H410 Chipset
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Audio

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Realtek R1111H Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED

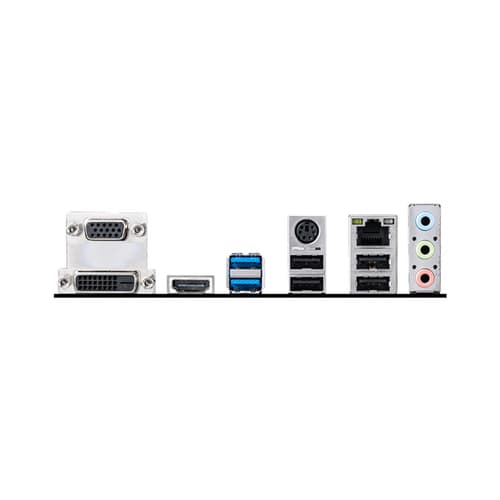

Back panel ports
  1. VGA
  2. HDMI
  3. USB 3.2 Gen 1 5Gbps Type-A Keyboard/Mouse
  4. LAN
  5. Audio Connectors
  6. DVI-D
  7. USB 2.0
  8. USB 2.0
Dimensions
  • Mirco-ATX Form Factor
  • 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Mounting 6 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.



Motherboard
Platform INTEL
Socket LGA1200
Chipset H410
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 Years

Questions and Answers


Q. will this motherboard support rtx 3060?

A. Yes Sir.

sushant sapkal (Verified Buyer )

Q. can i use ADATA SWORDFISH 250GB PCIe Gen3x4 M.2 Internal SSD (ASWORDFISH-250G-C) in this motherboard?

A. No.

Parth Patel (Verified Buyer )

Q. Do this Motherboard support [ Intel Pentium Gold G6400 Processor ] ?

A. Yes.

Anand (Verified Buyer )

Q. Can it support colourful graphics Card 730k pci 3.0

A. Yes.

Apsar (Verified Buyer )

Q. I can i3 10100f with h410 motherboard it can bios update or not

A. Yes it will support, no BIOS update is needed.

OM CHOWDHURY (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 1
  • 0
  • 0
  • 0
  • 0
    5.0
    1 rating &
    1 review


5

one of the best robust motherboard in low cost. However delivery was arranged by bluedart which was not good. I had to pick up the item from bluedart shipment centre

harsh shukla (Verified Buyer )
