Msi H310M PRO-M2 Plus Motherboard
Bank Credit & Debit Card EMI Offer
MSI – END USER PROMOTION IS BACK Offer T&C for Details Click Here
- Brand: MSI
- Product Code: H310M-PRO-M2-PLUS
- Availability: Out Of Stock

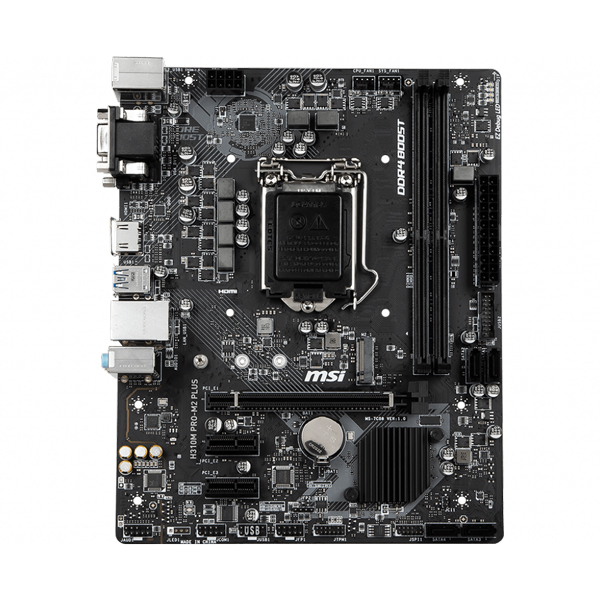

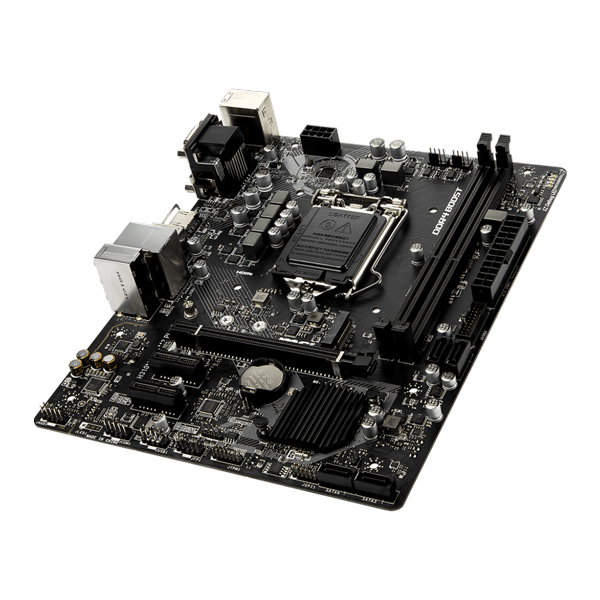

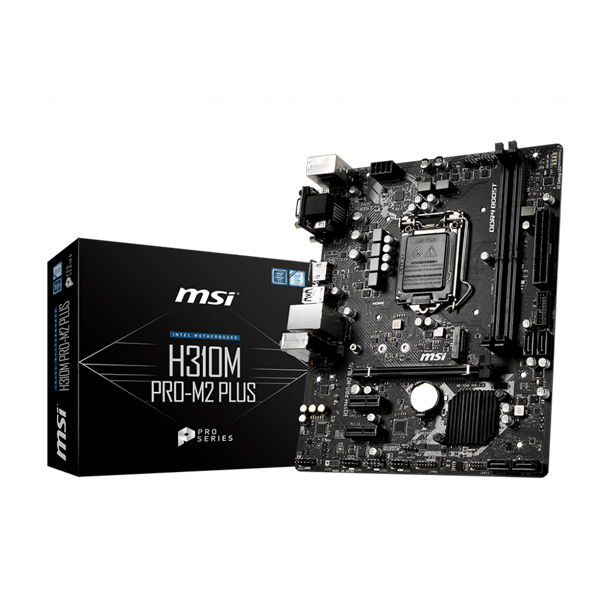

Msi H310M PRO-M2 Plus Motherboard
₹5,100
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality.
- M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
- EZ Debug LED: Easiest way to troubleshoot.
- PCI-E Steel Slot: Protecting VGA cards against bending for better performance, stability and strength.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Specifications
| Processor | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Chipset |
Intel® H310 Chipset This chipset is ME11 firmware based and doesn't feature SDA3.0 |
| Memory |
|
| Slots |
|
| Onboard Graphics |
*No Display support when using the Processor model with suffix “F”
|
| Storage |
Intel® H310 Chipset
|
| USB |
Intel® H310 Chipset
|
| Audio |
Realtek® ALC887 Codec
|
| LAN | 1 x Intel I219-V Gigabit LAN controller |
| Internal connectors |
|
| Back panel ports |
|
| Dimensions |
|
| Mounting | 6 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1151 |
| Cpu Type | 9th Gen, 8th Gen, Pentium, Celeron |
| Chipset | H310 |
| Memory Speed | up to 2666 |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Graphics Port | 1x VGA,1x DVI-D,1x HDMI |
| Expansion Slots | 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |

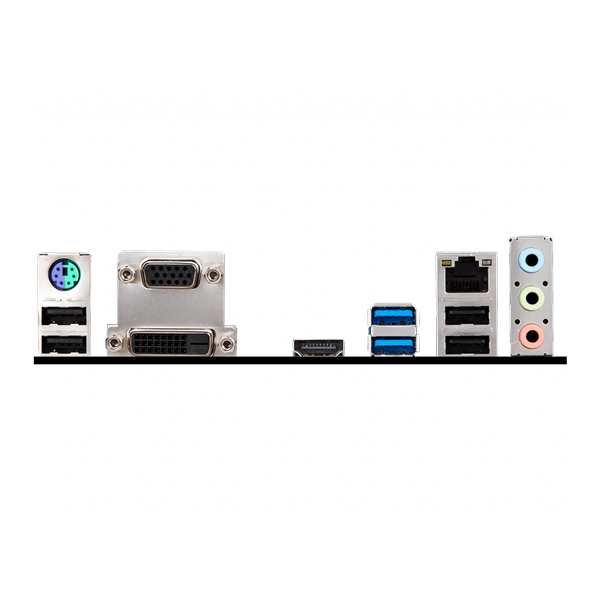

| Back Panel I/O Ports | PS/2 Combo VGA HDMI USB 3.1 Gen1 LAN HD Audio Connectors DVI-D USB 2.0 |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
