MSI Creator X299

/ Write a review

  • Brand: MSI
  • Product Code: CREATOR-X299
  • Availability: Out Of Stock

MSI Creator X299

₹53,200

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Unique look and feel inspired by the craft of crystal for all Creators. Features the latest USB3.2 Gen2x2 and 10G LAN, Wi-Fi 6, Triple Turbo M.2 with Shield Frozr, Core Boost, Audio Boost 4 with Nahimic, ThunderboltM3 card and M.2 Xpander-Aero card, Mystic Light.

  • Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4266+(OC)
  • More Powerful than Enough: dedicate 12 phases 90A digital power to CPU, with all aluminum design
  • More Efficency for Data Transfer: 10G LAN + Intel® Gigabit LAN with Intel® WIFI 6 and bandwidth management
  • More Compatibility for Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO, 1 x Turbo U.2
  • More Flexibility for Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor
  • Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
  • Core Boost: With premium layout and full digital power design to support more cores and provide better performance
  • Triple 8 Pin Power Supply: By providing triple 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Raibow and Corsair LED strip
  • Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality
  • DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
  • Multi-GPU: With Steel Armor PCI-E slots. Supports up to 4-Way NVIDIA SLI™ & 4-Way AMD Crossfire™
  • THUNDERBOLTM3: Exclusive expansion card offering dual DisplayPort and dual Thunderbolt 3 for the full 4K video experience.

Specifications



Processor Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066
Chipset Intel® X299 Chipset
Memory
  • 8 x DDR4 memory slots, support up to 256GB
  • Support DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133
  • Quad channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
Slots
  • 4 x PCIe 3.0 x16 slots
  • Support x8/ x8/ x16/ x8 and x16/ x0/ x16/ x8 modes with the 48-lane CPU.
  • Support x8/ x8/ x16/ x8 and x16/ x0/ x16/ x8 modes with the 44-lane CPU.
  • Support x8/ x8/ x8/ x0 and x16/ x0/ x8/ x0 modes with the 28-lane CPU.
Multi-GPU
  • Supports 4-Way NVIDIA® SLI® Technology1
  • Supports 4-Way AMD® CrossFire™ Technology
Storage
  • Intel® X299 Chipset
  • 8 x SATA 6Gb/s ports
  • 1 x M.2 slots (Key M)1
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • Intel® Rapid Start Technology
  • Intel® Optane™ Memory Ready
  • 1 x U.2 port, supports PCIe 3.0 x4 NVMe storage
  • Supports Intel® Smart Response Technology

Intel® CPU

  • 2 x M.2 slots (M2_2 & M2_3, Key M)1
  • Support up to PCIe 3.0 x4, 2242/ 2260/ 2280/ 22110 storage devices
RAID

Intel® X299 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

ASMedia® ASM3242 Chipset

  • 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20 Gbps) Type-C port on the back panel

ASMedia® ASM3142 Chipset

  • 1 x USB 3.2 Gen2 (SuperSpeed USB 10 Gbps) Type-C port through the internal USB connectors)

ASMedia® ASM1074 Chipset

  • 7 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Intel® X299 Chipset

  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A through the internal USB connectors
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors)
Audio

Realtek® ALC1220 Codecs

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel® I219-V Gigabit LAN controller
  • 1 x Aquantia® AQC107 10-Gigabit LAN controller
Wireless

Intel® Wi-Fi 6 AX200

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5.1
  • The Wireless module is pre-install in the M2_4 (Key-E)slot
  1. Only support windows 10 64-bit

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 3 x 8-pin ATX 12V power connectors
  • 1 x flat 4-pin ATX 12V power connector (Provides additional power for PCIe x16 slots)
  • 8 x SATA 6Gb/s connectors
  • 1 x U.2 port
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports)
  • 1x USB 3.2 Gen2 Type-C Port
  • 1 x 4-pin CPU fan connector
  • 4 x 4-pin system fan connectors
  • 2 x 4-pin extend system fan connectors
  • 1 x 4-pin water-pump fan connector
  • 1 x 3-pin Water Flow connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x 2-pin Thermal Sensors connector
  • 1 x Thunderbolt Add-on Card Connector
  • 1 x Virtual RAID on CPU connector
  1. Provides additional power to PCIe x16 slots

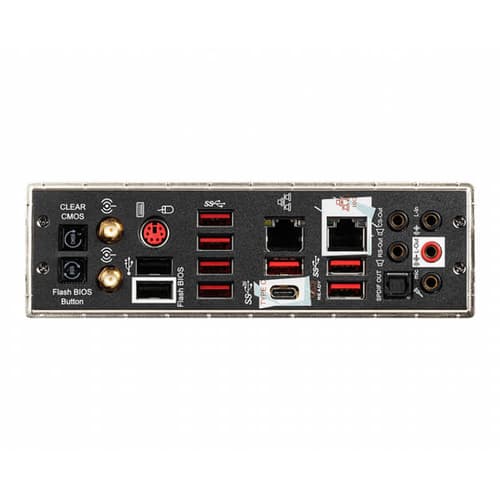

Back panel ports
  1. Clear CMOS Button
  2. Keyboard / Mouse
  3. Gigabit LAN
  4. 10G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. Wireless / Bluetooth
  8. USB 2.0
  9. USB 3.2 Gen1 Type-A
  10. USB 3.2 Gen2x2 20G Type-C
  11. USB 3.2 Gen1 Type-A
  12. Optical S/PDIF out
Dimensions
  • 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
  • E-ATX Form Factor
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price, and specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA2066
Chipset X299
Max Memory Support 256 GB
Supported Memory Type DDR4
Form Factor E-ATX
Warranty 3 Years
