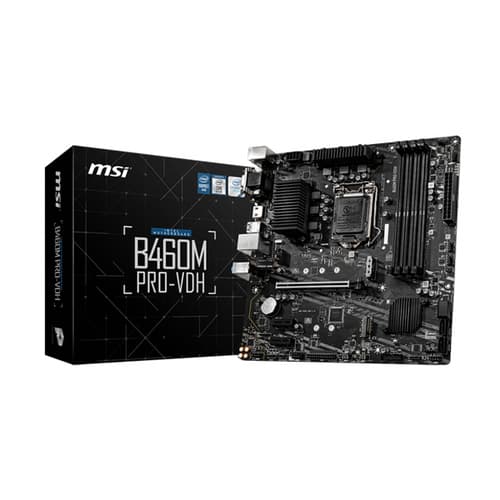

MSI B460M PRO-VDH Motherboard

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: B460M-PRO-VDH
  • Availability: Out Of Stock

MSI B460M PRO-VDH Motherboard

Offer Price

₹8,649

(2% off ) ₹8,850
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

CPU Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset Intel® B460 Chipset
Memory
  • 4x DDR4 memory slots supporting up 128GB
  • Intel® Core™ i7/ i9
    • Support DDR4-2933 Memory (Max.)
  • Intel® Core™ i5 (Below)
    • Supports DDR4-2666 Memory (Max.)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 2x PCIe x1 slots (from PCH)
Onboard Graphics
  • 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
  • 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
  • 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
Storage Intel® B460 Chipset
  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors
RAID Intel® B460 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Intel® B460 Chipset
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Realtek® RTL8111H Gigabit LAN Controller
Wireless LAN & Bluetooth® N/A
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 2x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x parallel port connector
  • 1x serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TPM module connector

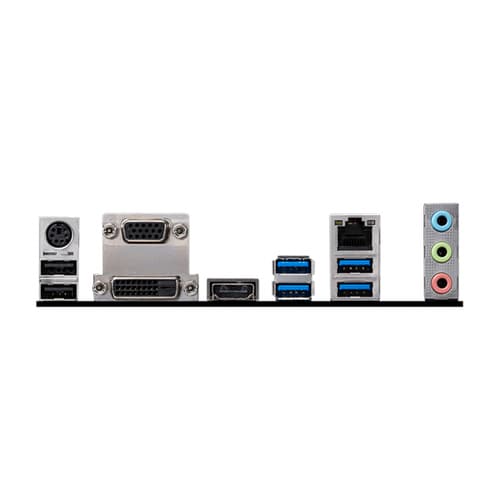

Back panel ports
  • Keyboard / Mouse
  • VGA
  • LAN
  • USB 2.0
  • DVI-D
  • HDMI
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 1 5Gbps Type-A
  • Wireless / Bluetooth
  • Audio Connectors
Form Factor
  • mATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset B460
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 Years

Questions and Answers


Q. Is tpm 2.0 available in this

A. No details on the version.

Aashish Sehgal (Verified Buyer )

Q. Can i pair it with i5-10400? Is the vrm good enough to handle the cpu. I am planning to game on rx 570 with 550 watt 80plus psu.please i just wanna know if the vrm is good enough or not to handle i5-10400?

A. Yes it can, also the CPU is not not unlocked, so there is nothing to worry about the VRMs.

Dripto Das (Verified Buyer )

Q. I7 10gen comfortable ?

A. Better VRM board is required.

Lalu prasad (Verified Buyer )

Q. Does it have any argb header ?? If no then what is 3 pin rainbow header as mentioned in the description???

A. No.

Suraj (Verified Buyer )

Q. Is there a argb header

A. No, only RGB header.

Siddharth Mahajan (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 1
  • 0
  • 0
  • 0
  • 0
    5.0
    1 rating &
    1 review


5

Received without any damage. Hats-off to the packaging. No other websites provide this type of packaging. Products works perfectly.

Rohith Mattala (Verified Buyer )
