Msi B450M Mortar Titanium
Msi B450M Mortar Titanium
Msi B450M Mortar Titanium
Msi B450M Mortar Titanium
Msi B450M Mortar Titanium
Msi B450M Mortar Titanium
Msi B450M Mortar Titanium
Msi B450M Mortar Titanium

Msi B450M Mortar Titanium

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: B450M-MORTAR-TITANIUM
  • Availability: Out Of Stock

Msi B450M Mortar Titanium

₹10,300

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
  • Supports DDR4 Memory, up to 3466(OC) MHz
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.1 GEN2, Store MI technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
  • Mystic Light and Mystic Light Sync: 16.8 million colors / 10 effects in one click. Synchronize RGB strips and other RGB solutions for customization.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
  • In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
  • EZ Debug LED: Easiest way to troubleshoot.

Specifications

PROCESSOR Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
CHIPSET AMD® B450 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 64GB
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
SLOTS
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
    • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
    • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
  • 2 x PCIe 2.0 x1 slots2
  1. PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
  2. PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3 slot.
ONBOARD GRAPHICS
  • 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2
  1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  2. Maximum shared memory of 2048 MB
MULTI-GPU
  • Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® B450 Chipset
  • 4 x SATA 6Gb/s ports1
  • 1 x M.2 slot (M2_2, Key M)1
    • Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD® CPU
  • 1 x M.2 slot (M2_1, Key M)1
    • Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  1. PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
RAID
AMD® B450 Chipset
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe RAID
USB
AMD® B450 Chipset
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • 2 x USB 3.1 Gen1 (2 ports available through the internal USB 3.1 Gen1 connectors)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel)
AUDIO
Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Realtek® RTL8111H-CG Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX 12V power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (support additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 3 x 4-pin system fan connectors
  • 2 x 5050 RGB LED strip 12V connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Serial Port connector
  • 1 x Parallel Port connector

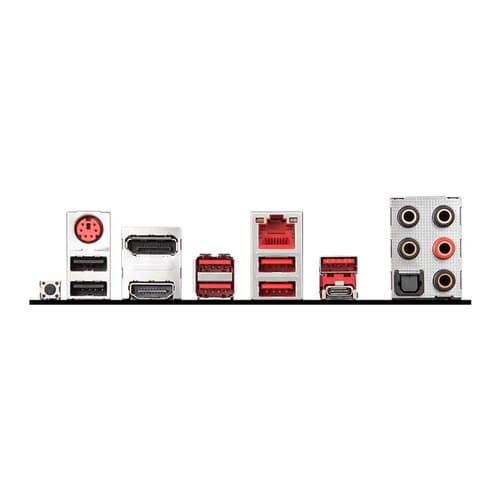

BACK PANEL PORTS
  1. BIOS FLASHBACK+ Button
  2. PS/2 Combo Port
  3. DisplayPort
  4. LAN Port
  5. USB 3.1 Gen2 Type A
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. HDMI Port
  9. USB 3.1 Gen1
  10. USB 3.1 Gen2 Type C
  11. Optical S/PDIF OUT
DIMENSIONS
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • Micro-ATX Form Factor
MOUNTING 8 mounting holes
OPERATING SYSTEM
  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty 3 Years
Note ***Features,Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset B450
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 YEARS

Questions and Answers

Q. Does this Support Ryzen 5 5600x and what cooler in budget would you suggest i should pair this with? 17/07/2021

A. Need BIOS update for 5000 series. The stock cooler with the CPU is good enough.

Jeet Parikh (Verified Buyer )

Q. Wi-Fi?! Who uses LAN THESE DAYS!? 18/06/2020

A.

It does not come with inbuild Wifi.

You can use a network card or an adapter to connect to network wirelessly.

Virat Singh (Verified Buyer )

Q. Does this Motherboard support DDR4 3600Mhz RAM Module 29/10/2019

A. Yes, but it will get downclocked to 3466 MHz.

savith (Verified Buyer )

Q. Does it need bios update for amd ryzen 5 3500? 26/10/2019

A. A BIOS update may be required.

Aditya Salwe (Verified Buyer )

Q. if i order this mobo can u upadate bios for ryzen 5 cz i dont have any amd processer for update bios manually 17/10/2019

A.

We can update the BIOS on customer request. Please mention "BIOS update" in the comments section under the view cart during checkout. We will update the BIOS of the motherboard and then ship it to you.

shwetank morey (Verified Buyer )
