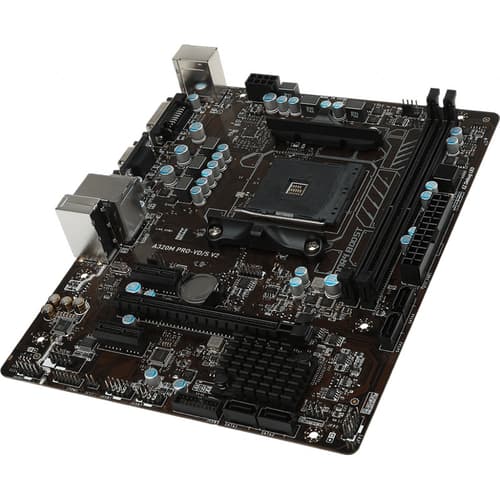

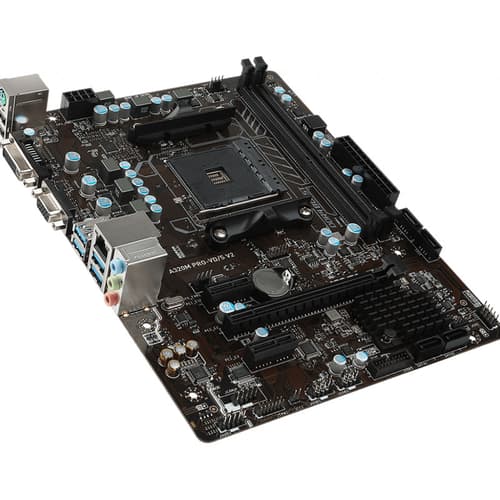

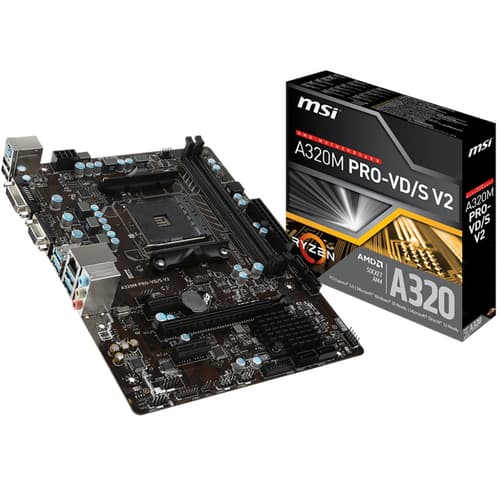

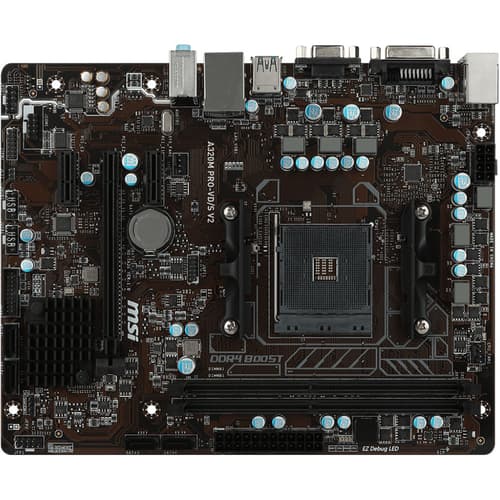

MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2
MSI A320M Pro-VD/S V2

MSI A320M Pro-VD/S V2

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: A320M-PRO-VD-S-V2
  • Availability: Out Of Stock

MSI A320M Pro-VD/S V2

₹3,675

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
  • Support DDR4 1866/2133/2400/2667 Mhz
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
  • EZ Debug LED: Easiest way to troubleshoot
  • X-Boost: Great tool to boost your USB & Storage performance
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
  • VR Ready: Best virtual reality game experience without latency

Specification

PROCESSOR Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
CHIPSET AMD® A320 Chipset
MEMORY
  • 2 x DDR4 memory slots, support up to 32GB
  • Support DDR4 1866/ 2133/ 2400/ 2667 Mhz1
  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  1. A-series / Athlon™ X4 processors support a maximum of DDR4 2400 Mhz.
SLOTS
  • 1 x PCIe 3.0 x16 slot
    1. Supports x 16 speed with RYZEN Series Processors
    2. Supports x8 speed with AMD® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
    3. Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 2 x PCIe 2.0 x1 slots
ONBOARD GRAPHICS
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1
  1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
STORAGE

AMD® A320 Chipset

  • 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID 1 and RAID 10
USB

AMD® A320 Chipset

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)
AUDIO

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1 x Realtek® 8111H Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x Clear CMOS jumper
BACK PANEL PORTS
  1. PS/2 Device Port
  2. DVI-D Port
  3. VGA Port
  4. USB 3.1 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Ports
DIMENSIONS
  • 9.3 in. x 7.4 in. (23.6 cm x 18.7 cm)
  • m-ATX Form Factor
MOUNTING 6 mounting holes
OPERATING SYSTEM
  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset A320
Max Memory Support 32 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 Years

Questions and Answers

Q. Does this motherboard support ryzen 5000 series with bios updated? 10/03/2023

A. Yes.

Divyam (Verified Buyer )

Q. When will the item be back in stock? 06/09/2020

A. No exact update is available.

Subham Biswas (Verified Buyer )

Q. is it supported m.2 ssd? 17/07/2020

A. No.

Suvodeep Dutta (Verified Buyer )

Q. Does it support ryzen 5 3500
 14/07/2020

A. It will support with a BIOS update.

Gouarv (Verified Buyer )

Q. Is it compatible wth Intel Core I5-9400F and Asus ROG Strix Gaming RX 570 4GB? 05/05/2020

A.

No, it is not compatible with the core i5 9400f.

It supports AMD AM4 RYZEN CPU like Ryzen 2600X which has more or less the same performance as i5 9400f.

Abhrojit Das (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 5
  • 0
  • 0
  • 0
  • 0
    5.0
    5 ratings &
    5 reviews

5 4th October 2019

one of the best product in budget.

wasim raja (Verified Buyer )
5 4th October 2019

awesome build quality in budget . for budget gamer like me msi is doing a great work.

wasim raja (Verified Buyer )
5 4th October 2019

One of the best motherboard

Motherboard (Verified Buyer )
5 1st October 2019

One of the best motherboards for those who looking forward to build a pc at a certain budget. I have been using this mobo for the past 6 months and didn't face any issue till now.

Raj wadia (Verified Buyer )
5 1st October 2019

I have been using this mobo for the last 6 months. And I would recommend it to anyone who is on budget and wants to build an AMD pc.

Best budget mobo (Verified Buyer )
