FEATURES:
- 3D TLC NAND — Increased density is the key to supporting broader workloads, ultra-responsive multi-tasking, and an overall faster system.
- Encrypted protection — Protect sensitive data with support for 256-bit AES Hardware-based Encryption and TCG Opal 2.0 making it GDPR ready3
- Ideal for desktops, small form factor PCs, and notebooks — Comes in multiple form factors (M.2) to fit in a wider array of systems. It is ideal for slimmer notebooks and systems with limited space.
- Multiple capacities — Available in a range of capacities up to 1.92TB1 to meet your data storage requirements.
SPECIFICATIONS:

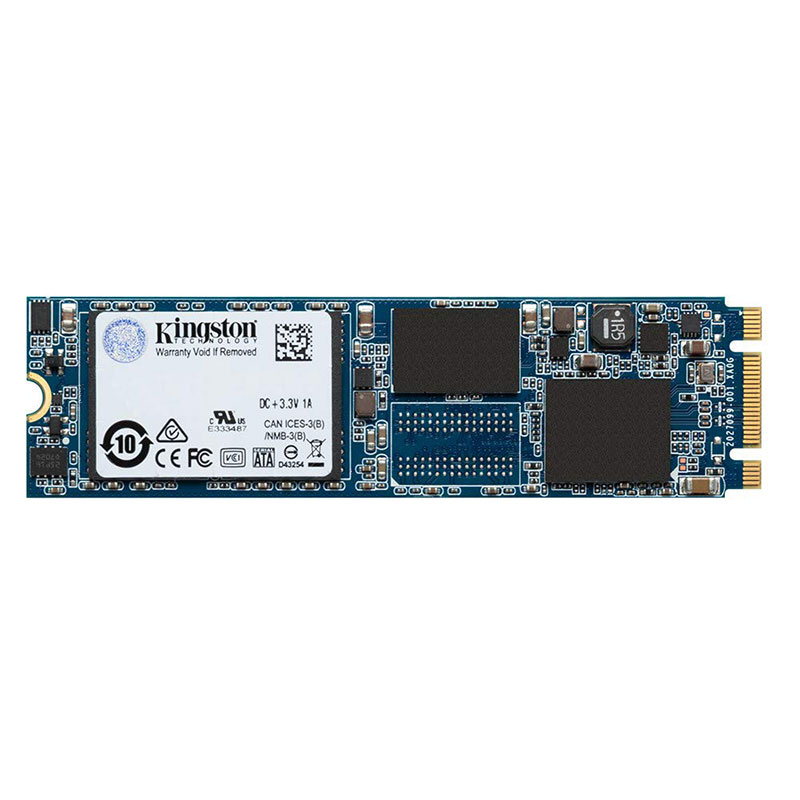

| Model | SUV500M8/120G |
| Form factor | M.2 2280 |
| Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacity | 120GB |
| Controller | Marvell 88SS1074 |
| NAND | 3D TLC |
| Encryption | Encryption Support (AES 256-bit) |
| Sequential Read/Write | up to 520/320MB/s |
| Maximum 4K Read/Write | up to 79,000/18,000 IOPS |
| Power Consumption | 0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write |
| Dimensions | 80mm x 22mm x 3.5mm |
| Operating temperature | 0°C~70°C |
| Storage temperature | -40°C~85°C |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G Peak (10–2000Hz) |
| Life expectancy | 1 million hours MTBF |
| Total Bytes Written (TBW) | 60TB |
| Warranty | 5 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
| Storage | |
| Category | Internal SSD |
| Series | UV500 |
| Capacity | 120GB |
| Form Factor | M.2 2280 |
| NVMe | N/A |
| Interface | SATA |
| Write Speed | Up to 320 MB/s |
| Read Speed | Up to 520 MB/s |
| TBW | 60 |
| Warranty | 5 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
