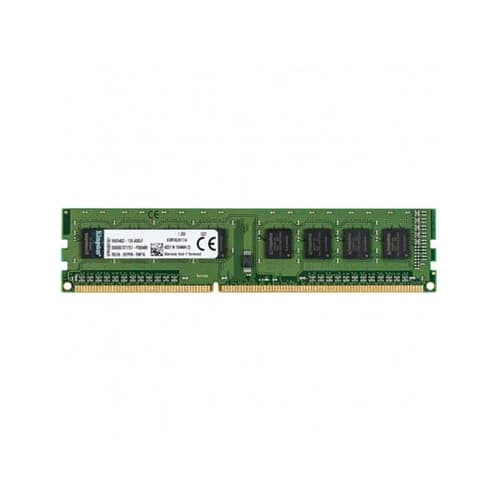

Kingston Value 4GB (4GBx1) DDR3 1600MHz
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: KINGSTON
- Product Code: KVR16LN11-4
- Availability: Out Of Stock
Kingston Value 4GB (4GBx1) DDR3 1600MHz
₹1,641
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
- JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
- VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
- 800MHz fCK for 1600Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 11, 10, 9, 8, 7, 6
- Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
- On Die Termination using ODT pin
- Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
- Asynchronous Reset
- PCB Height: 0.740” (18.75mm) or 1.180” (30.00mm)
Specifications
| Model | KVR16LN11/4 |
| CL(IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 48.125ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 260ns(min.) |
| Row Active Time (tRASmin) | 35ns(min.) |
| Maximum Operating Power | (1.35V) = TBD W* |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to 85°C |
| Latency | 11-11-11 |
| Storage Temperature | -55°C to +100°C |
| Warranty | Lifetime |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Memory-(Ram) | |
| Model | KVR16LN11/4 |
| Product Series | VALUE |
| Memory Type | DDR3 |
| Capacity | 4GB |
| Kit Type | 4GB x 1 |
| Speed | 1600 MHz |
| Tested Latency | 11-11-11 |
| Tested Voltage | 1.35 V |
| Warranty | Lifetime |
