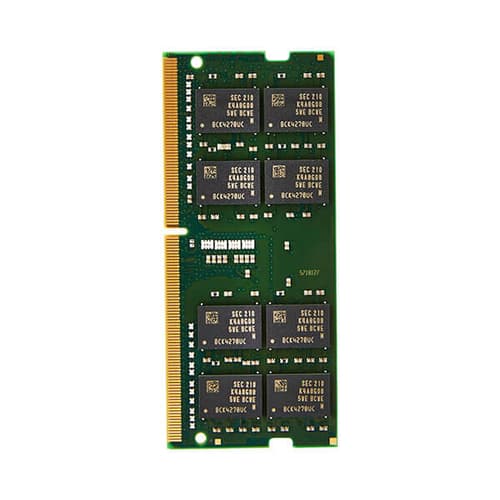

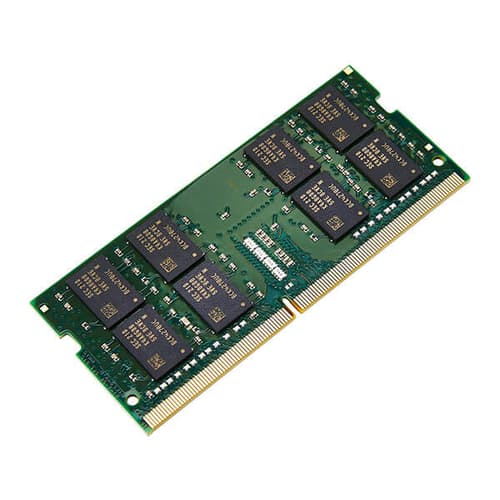

Kingston Value Series 16GB (16GBx1) DDR4 3200MHz Laptop RAM
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: KINGSTON
- Product Code: KVR32S22D8-16
- Availability: Out Of Stock
Kingston Value Series 16GB (16GBx1) DDR4 3200MHz Laptop RAM
Offer Price
₹3,626
(9% off ) ₹4,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
This document describes ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
Specification:
| Model | KVR32S22D8/16 |
| Capacity | 16GB |
| Speed | 3200Mhz |
| Memory Type | DDR4 |
| Form Factor | SODIMM |
| Latency | 22-22-22 |
| Voltage | 1.2V |
| CL(IDD) | 22 cycles |
| Row Cycle Time (tRCmin) | 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmiin) |
350ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | -55°C to +100°C |
| Warranty | Limited Lifetime |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Memory-(Ram) | |
| Model | KVR32S22D8-16 |
| Product Series | VALUE SERIES |
| Memory Type | DDR4 |
| Capacity | 16GB |
| Kit Type | 16GB x 1 |
| Speed | 3200 MHz |
| Tested Latency | 22-22-22 |
| Tested Voltage | 1.2 V |
| Warranty | Limited Lifetime |
